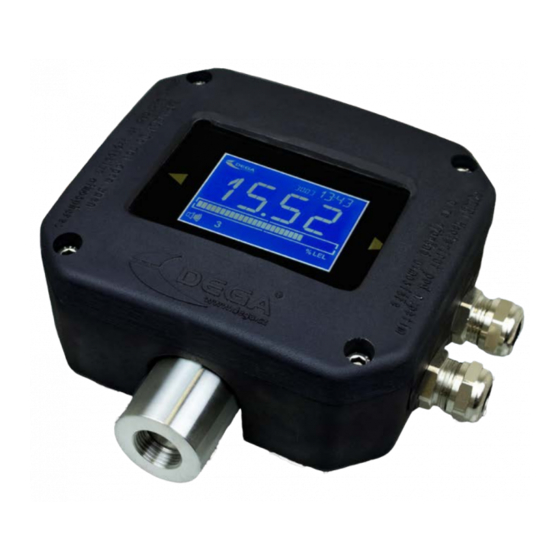

Gas Transmitter DEGA NS III Reproduction of this manual, or any part thereof, in any form, without the prior permission of DEGA.CZ s.r.o. is prohibited DEGA CZ s.r.o. reserves the right to alter the specifications of the hardware and software described in this manual at any time and without prior notice DEGA CZ s.r.o.
Connecting the transmitter via current loop to the controler DEGA UPA II/DEGA UPA III ..........7 Connecting the sensor via RS485 to the controller DEGA UKA III/DEGA UPA III/DEGA UDA III ........... 7 Installation of wiring for RS485 ............................. 7 Setting the RS485 adress of the transmitter.........................
Use the transmitter only with the appropriate certified DEGA products The device is certified as functionally and technically qualified only with original "DEGA" accessories. In case of using the device with any other products the manufacturer is not liable for any damages that may occur.
DEGA NSx-PL III PID max. 30 min Response time (T90) Sensor lifetime in a clean environment DEGA NSx-EL III max. 180 s - based on sensor type DEGA NSx-EL III 2 years DEGA NSx-CL III max. 15 s DEGA NSx-CL III...
DEGA NSx-PL III PID with a PID – photoionization sensor Typical photoionization detectors measure volatile organic compounds and other gases in concentrations from sub parts per billion to 10 000 parts per million (ppm). The photoionization detector is an efficient and inexpensive detector for many gas and vapor analytes.
Instalation, assembly and disassembly of the transmitter Before assembling, read the valid instalation standarts EN 60079-29-2 (Selection, instalation, use and maintenance of detectors for combustible gases and oxygen) and EN 45544-4 (Guildelines for the selection, installation, use and maintenance of detectors of toxic substances). In explosive environments the electrical installation must be performed according to DIN EN 60079.14 (Electrical instalation in hazardours areas) Secure that the sensor is reachable by air.
4. Connecting the transmitter via current loop to the controler DEGA UPA II/DEGA UPA III Connect one transmitter to each channel of the controler as shown in the picture below 5. Connecting the sensor via RS485 to the controller DEGA UKA III/DEGA UPA III/DEGA UDA III 6. Installation of wiring for RS485 Wiring must be installed using bus topology and in compliance with the RS485 policy.
2. Gas detection The transmitter continuously measures the detected gas concentration in the atmoshpere and converts it's current value into a 4-20 mA signal or transmits it's value to the evaluation unit via DEGA/MOBUS protocol. 3. Malfunction If a malfunction of electronics or the sensor is detected during operation, the transmitters starts transmitting via a 0,5 mA current loop.
Perform calibration only at certified service centers with a valid certificate of competence or the manufacturer. For the Czech Republic only DEGA CZ s.r.o. Accessories and basic types of transmitters 1. Calibration adapter/connection to the gas pump DEGA GAS INLET 2. Cover against splashing water DEGA WATER CAP...
3. Funnel for gas collection DEGA COLLECT CAP 4. Additional Ex „d“ cable gland M20x1,5 Basic types of transmitters 1. Transmitters with a catalytic sensor NSx-CL III Measurement of Measurement Product code Transmitter type Detected gas current loop Resolution Calibration gas...
