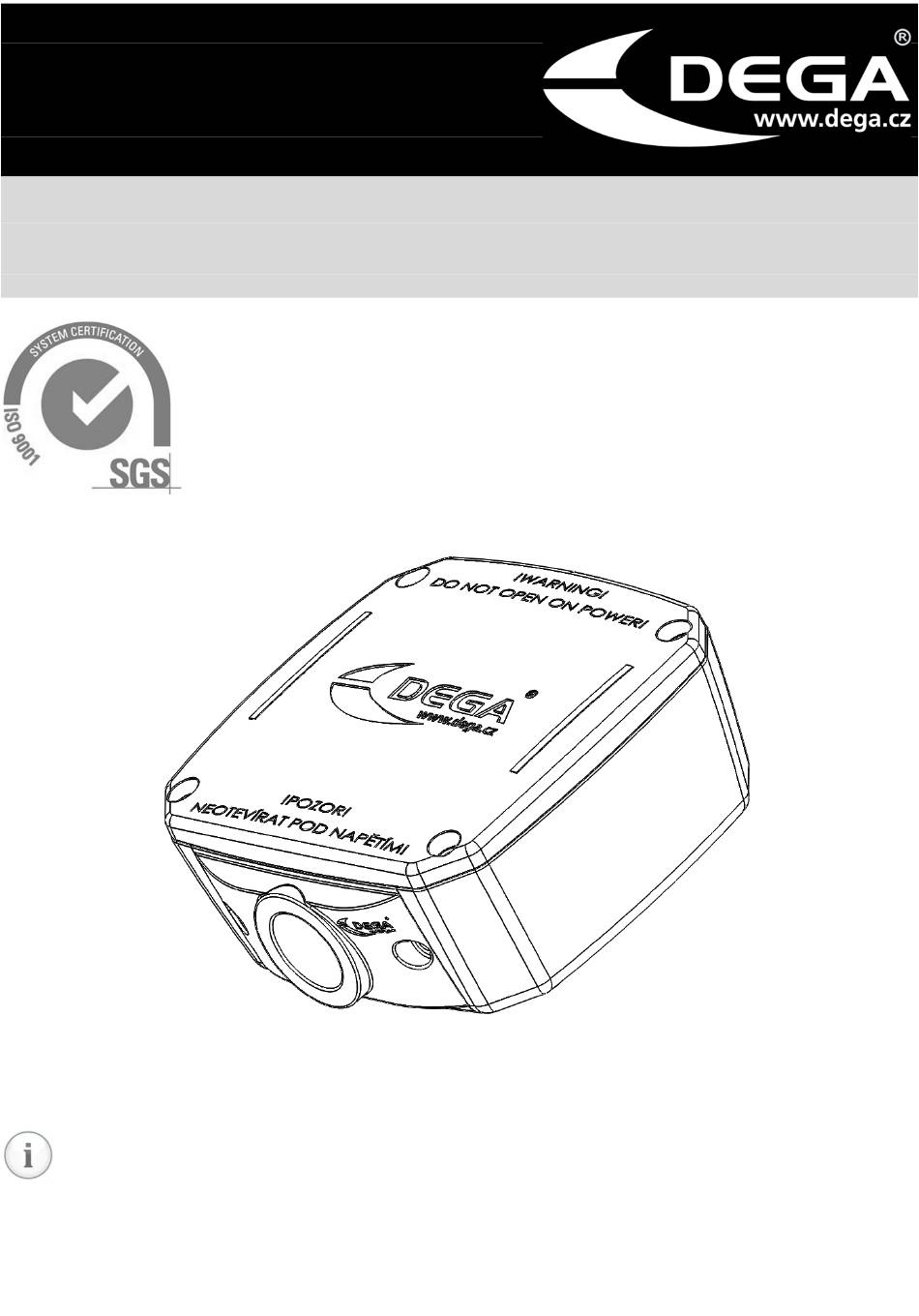

Page 1
Reproduction of this manual, or any part thereof, in any form, without the prior permission of DEGA.CZ s.r.o. is prohibited DEGA CZ s.r.o. reserves the right to alter the specifications of the hardware and software described in this manual at any time and without prior notice DEGA CZ s.r.o.
Assembly of the transmitter ..............................5 Replacement of the sensor module ............................6 Connecting the transmitter via current loop to the controler DEGA UPA II/DEGA UPA III ..........6 Connecting the sensor via RS485 to the controller DEGA UKA III/DEGA UPA III/UDA III ............. 6 Installation of wiring for RS485 .............................
Use the transmitter only with the appropriate certified DEGA products The device is certified as functionally and technically qualified only with original "DEGA" accessories. In case of using the device with any other products the manufacturer is not liable for any damages that may occur.
Their disadvatage is their low selectivity - the sensor largly responds to other gases for which it is not calibrated. DEGA NBx-PL III LCD PID with a photoionization sensor The sensitive scanning method for detection of a wide range of VOC - volatile organic compounds. The sensor does not selectively detect all VOCs in the air at concentrations in ppm.
Product description Hexagon screws 3 mm Status LED Status LED „POWER“ Bushings „ALARM“ Status LED „ERROR“ Sensor module Mounting holes PCB electronics Jumper connector of Terminal block RS485 4-20 mA signal terminal the terminating Terminal block RS485 B block resistor RS485 DIP switch for the GND power supply +24V DC Power...
– be careful not to bend the pins! Screw the two 3 mm hexagons screws and put back the cover. Screw the cover. 3. Connecting the transmitter via current loop to the controler DEGA UPA II/DEGA UPA III Connect one transmitter to each channel of the controler as shown in the picture below 4.
2. Gas detection The transmitter continuously measures the detected gas concentration in the atmoshpere and converts it's current value into a 4-20 mA signal or transmits it's value to the evaluation unit via DEGA protocol (RS485). 3. Malfunction If a malfunction of the electronics or the sensor is found during operation, the transmitter will continue transmitting via current loop 0,5 mA.
For the „functional control“ do not use means for testing fire alarm detectors! Perform calibration only at certified service centers with a valid certificate of competence or the manufacturer. For the Czech Republic only DEGA CZ s.r.o. Accessories 1. Additional bushing DEGA BUSHING for NBxIII HRW Limited admin@hrw.hk...
Alarm settings can be chosen freely according to customer requirements in measurement range. Add-on modules Product code Name Product description 20200009 DEGA NB III RS485 Internal output RS485 Attachments 1. Chart for setting the transmitter adress adress adress 2. Signalization transmitted by the current loop 4-20 mA...
