Connection setup

After the Rainbow Runner Studio add-on card is installed, you need to connect your external video
devices (TVs, VCRs, and so on), then install the Rainbow Runner software. This section describes
how to connect video devices to your computer.

Quick connection setup

Connect your monitor
1
Plug your monitor cable into the monitor connector on the back of your installed Matrox graphics
card. Turn the connector's thumb screws clockwise to secure the connector. Connect the other
end of the monitor cable to your monitor. For more information on how to connect your monitor
cable, see your monitor manual.

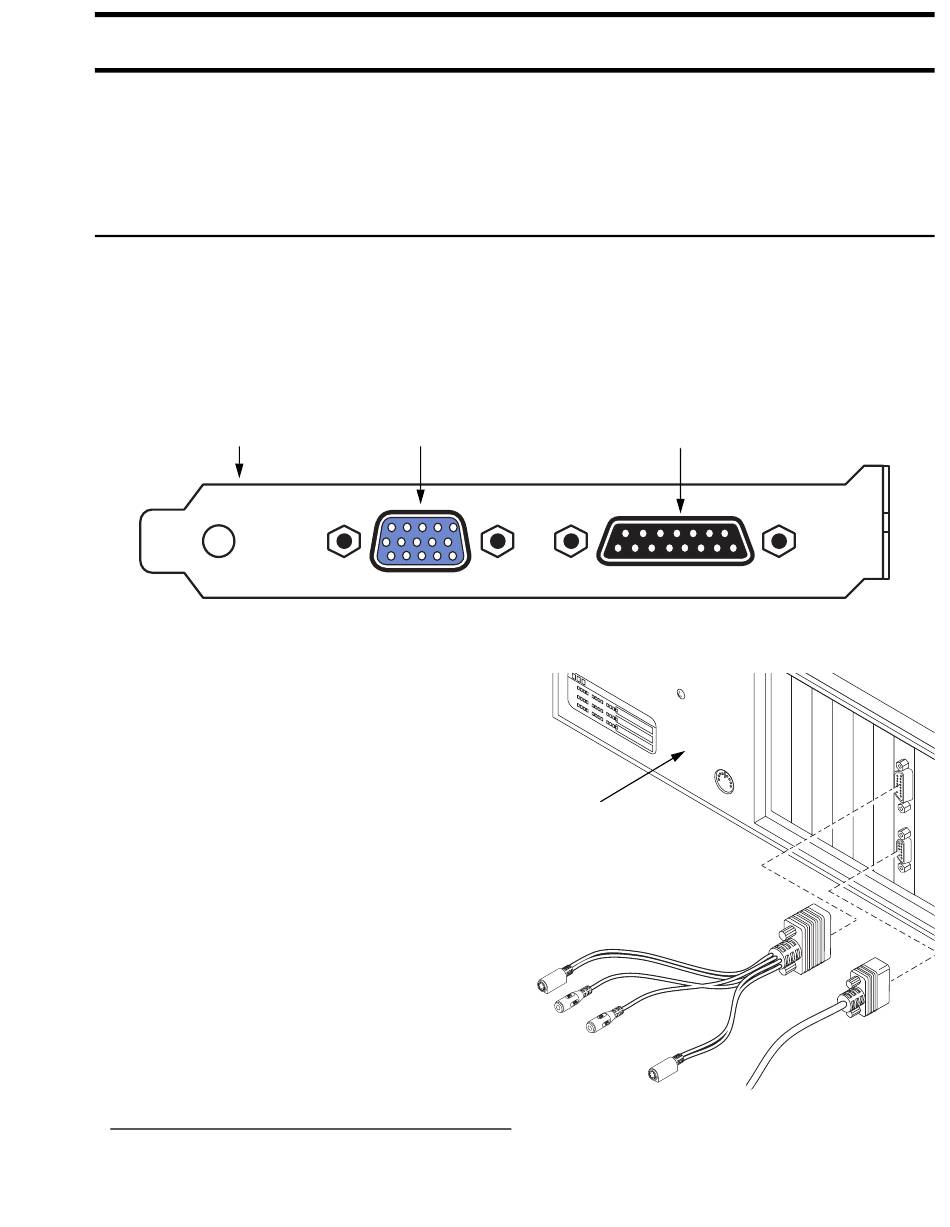

Bracket
Attach the Rainbow Runner
2
video connector
Plug the Rainbow Runner video connector
into the back of your installed Matrox graphics
1
card . Turn the connector's thumb screws
clockwise to secure the connector.
1. For Millennium II AGP cards, the video connector is on a separate bracket. For more information,
Monitor connector (blue)
Side-view of Matrox graphics card
Matrox Rainbow Runner Studio – Installation & User Guide
Video connector (black)
1
Back of
computer
Rainbow Runner
video connector
Monitor
connector
see page 8.
