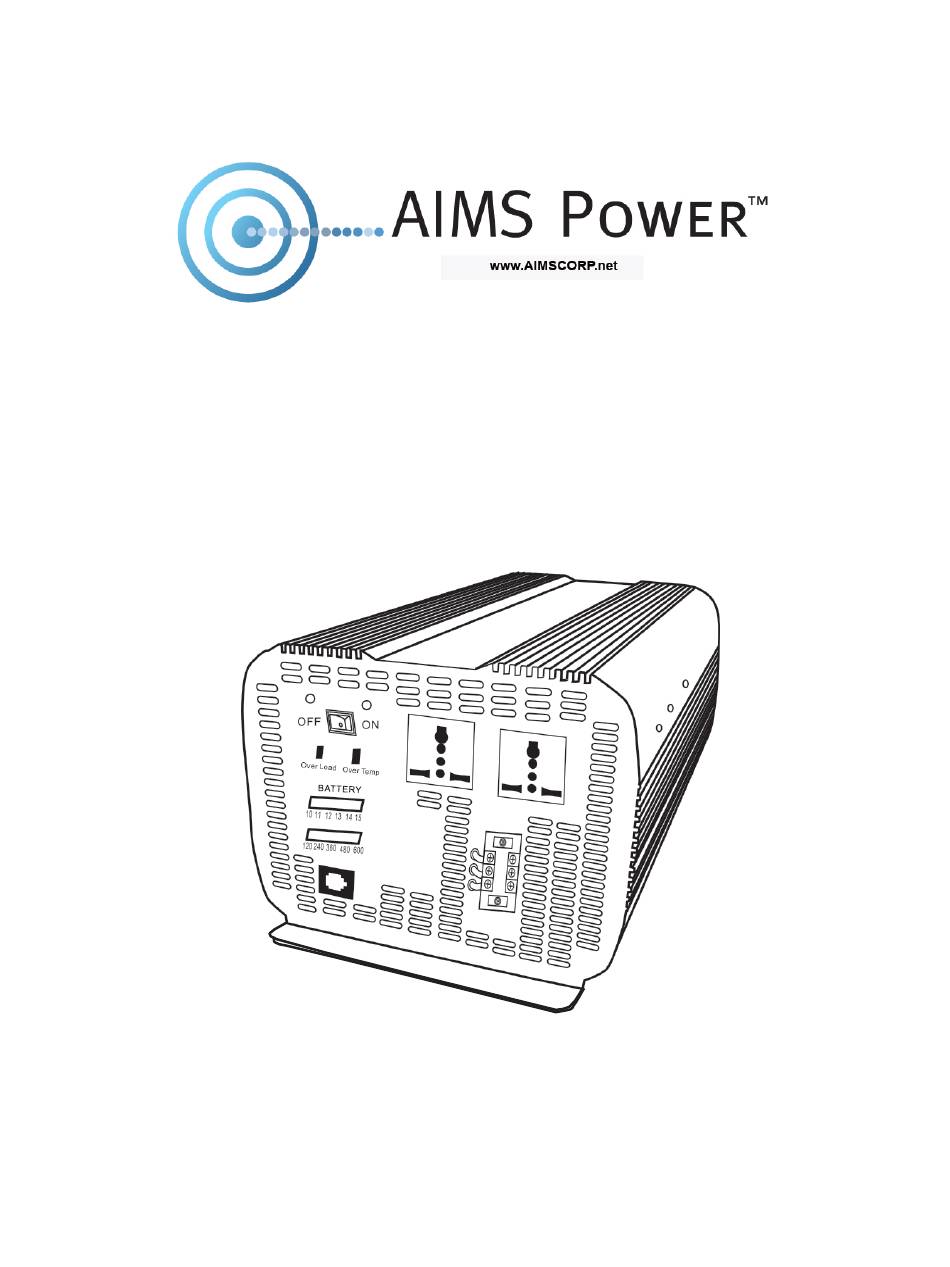

- Page 1 V 2.0 DC TO AC POWER INVERTER PWRINV8K22050 Instruction Manual...
- Page 2 V 2.0 Introduction The AIMS Power 8000 Watt inverter is the most advanced line of mobile DC to AC power systems available. This model is used in a wide range of applications including back up power for remote homes, off-grid systems, RVs, boats, commercial vehicles and mobile businesses. The 8000 Watt 220 Volt AC, 12 Volt DC inverter will operate most pumps, motors, and tools requiring 220V 50 Hz mostly for Europe and Africa.
-
Page 3: Front View

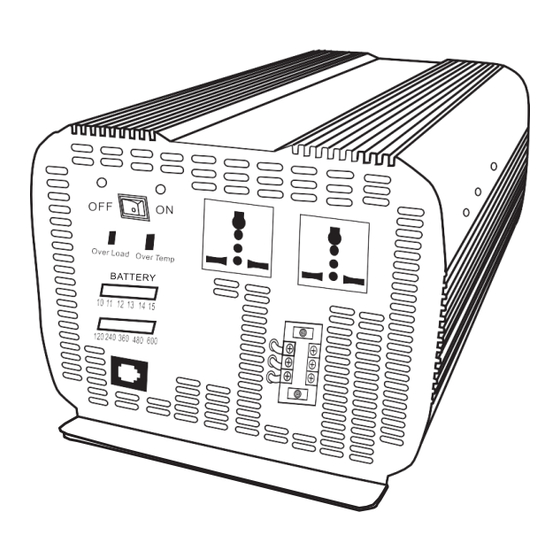

V 2.0 FUNCTIONS FRONT VIEW A. On/Off switch: Leave in the OFF position during installation. B. Over temperature indicator: Lights when inverter protects itself against overheating. Inverter shuts down while indicator is on. Inverter will restart automatically and indicator will turn off when the inverter cools. -
Page 4: Rear View
V 2.0 A: Fan REAR VIEW B: Battery terminal (-) B: Battery terminal (+) C: Chassis grounding A: Fan: Do not obstruct, allow at least 12 inch for air flow. B: Battery terminals: Connect to 12V battery (s) or other DC power source. "+" is positive & " - " is negative. -
Page 5: Installation
V 2.0 of the inverter. The voltage bar graph should indicate 11 to 14 volts depending on the voltage of the power source. If it does not, check your power source and the connections to inverter. The other indicators should be off. 4. -
Page 6: Operation
V 2.0 Red (+) Black (-) BLACK Caution! DO NOT allow the wires to cross or touch each other. Install the cables facing away from each other and screw tightly. When connecting the battery cables to the terminals of the inverter, make sure they do not touch the case. - Page 7 V 2.0 1. Controls and indicators The ON/OFF switch turns the control circuit in the power inverter on and off. It does not disconnect power from the power inverter. When the switch is in the OFF position, the power inverter draws no current from battery. When the switch is in the ON position but with no load, the power inverter draws less than 450 mA.
-
Page 8: Troubleshooting
V 2.0 Some induction motors used in refrigerators, freezers, pumps, and other motor operated equipment require very high surge currents to start. The power inverter may not be able to start some of these appliances even though their rated current draw is within the rating of the power inverter. If a motor refuses to start, observe the battery voltage indicator while trying to start the motor. - Page 9 V 2.0 -Keep the cables between the battery and the power inverter as short as possible and twist them together with about 2 to 3 twists per foot. This minimizes radiated interference from the cables. Problem and Symptoms Possible Cause Solution Low output voltage If using a non-RMS meter you could...
-
Page 10: Specifications
V 2.0 SPECIFICATIONS MODEL PWRINV5K24012W DC Input Voltage Output Wave Form Modified Sine Wave Operating Voltage 10V-16V 8000 watts 220 VAC only single phase 50Hz Output Power (Africa & Europe only) Surge Power Capacity 10,000 for 40 mil secs Efficiency >90% Switch on <1 A DC. - Page 11 In no event shall AIMS be liable for indirect, special or consequential damages. This warranty only applies to AIMS Power branded products. All other name brand products are warranted by and according to their respective manufacturer.
- Page 12 V 2.0...
