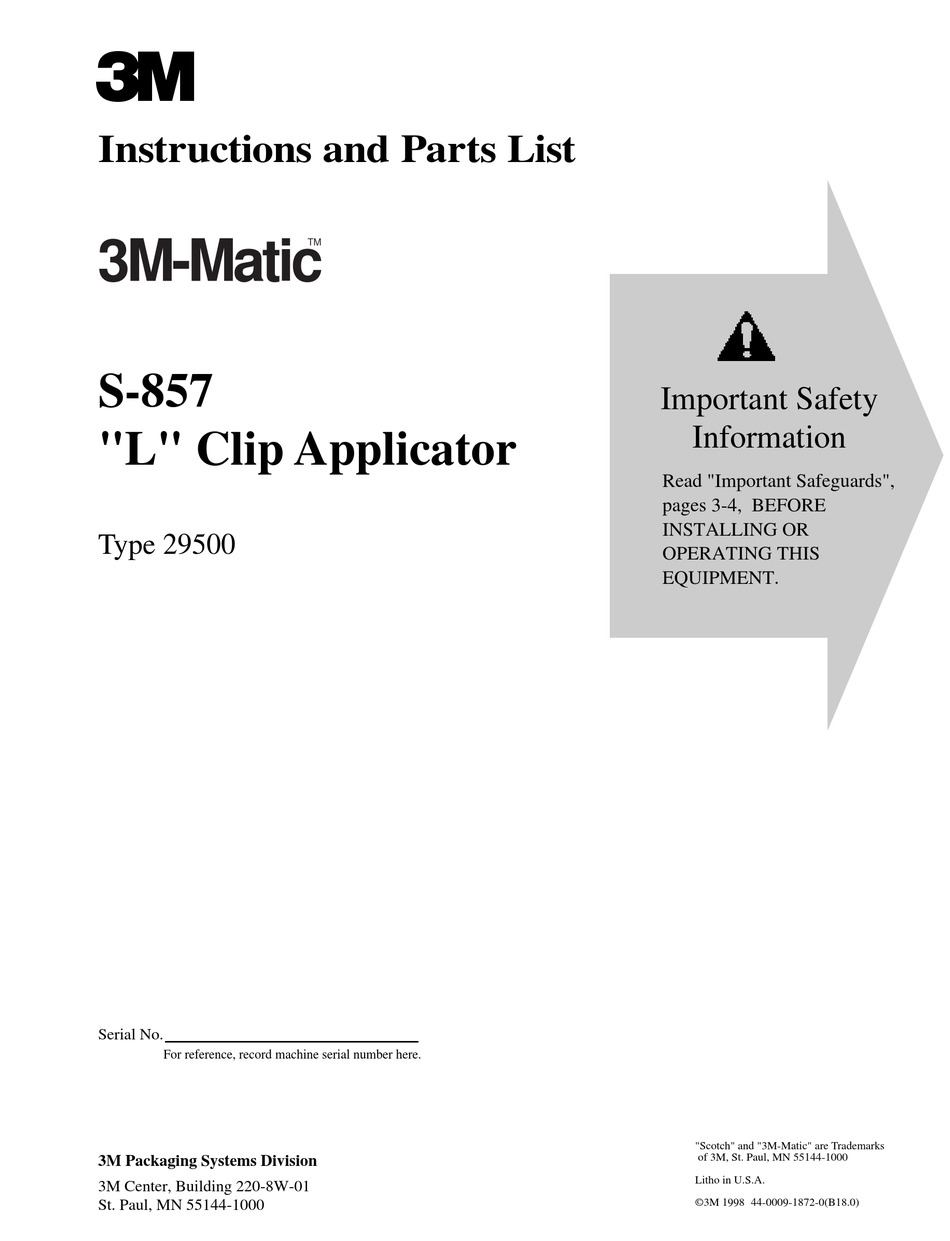

3
Instructions and Parts List
3M-Matic
S-857
"L" Clip Applicator
Type 29500
Serial No.
For reference, record machine serial number here.
3M Packaging Systems Division
3M Center, Building 220-8W-01
St. Paul, MN 55144-1000
TM
Important Safety
Information
Read "Important Safeguards",
pages 3-4, BEFORE
INSTALLING OR
OPERATING THIS
EQUIPMENT.
"Scotch" and "3M-Matic" are Trademarks
of 3M, St. Paul, MN 55144-1000
Litho in U.S.A.
©3M 1998 44-0009-1872-0(B18.0)
