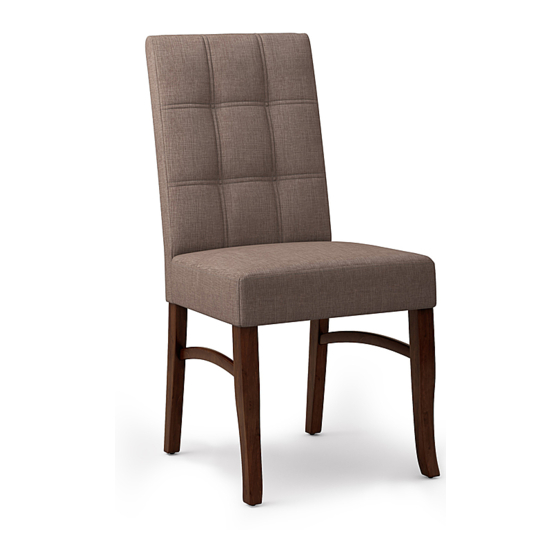

- Page 1 EZRA / HAWTHORNE / KENTVILLE DINING CHAIR MODEL # AXCDCHR-003-LML...
-
Page 2: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION LEFT STRETCHER SEAT CHAIR BACK QTY 1 QTY 1 QTY 1 RIGHT STRETCHER LEFT FRONT LEG RIGHT FRONT LEG QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 3 PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY SCREW M8 x 45 MM M8 x 60 MM M8 x 90 MM QTY 1 QTY 4 QTY 4 ALLEN KEY FLAT WASHER SELF-TAPPING SCREW 5 MM Ø22 MM Ø3.5 X 40 MM QTY 1 QTY 9...
- Page 4 ASSEMBLY STEP 1 Align Seat (B) into pre-drilled holes on Chair Back (A). Attach Seat (B) to Chair Back (A) using Allen Key Screw (1) and one Washer each of (4) and (7). Use Allen Key (6) tighten. Do not over-tighten.
- Page 5 ASSEMBLY STEP 2 Attach Seat (B) to Chair Back (A) using Allen Key Screws (3) and four Washers each of (4) and (7). Use Allen Key (6) tighten. Do not over-tighten.
- Page 6 ASSEMBLY STEP 3 Attach Front Legs (E & F) using Allen Key Screws (2) and four Washers each of (4) and (7). Use Allen Key (6) tighten. Do not over-tighten. Align the Stretchers (C & D) into Chair Back (A) and Front Legs (E & F). with Self-Tapping Screws (5).
- Page 7 ASSEMBLY STEP 4 Place Chair on a flat level surface to ensure it is level. If it is uneven, adjust either the Seat (B) or Front Legs (E) and (F). Ensure the Chair is level and then fully tighten all bolts.
- Page 8 ASSEMBLY STEP 5 Use the zipper to close the fabric on the bottom of the Chair.
