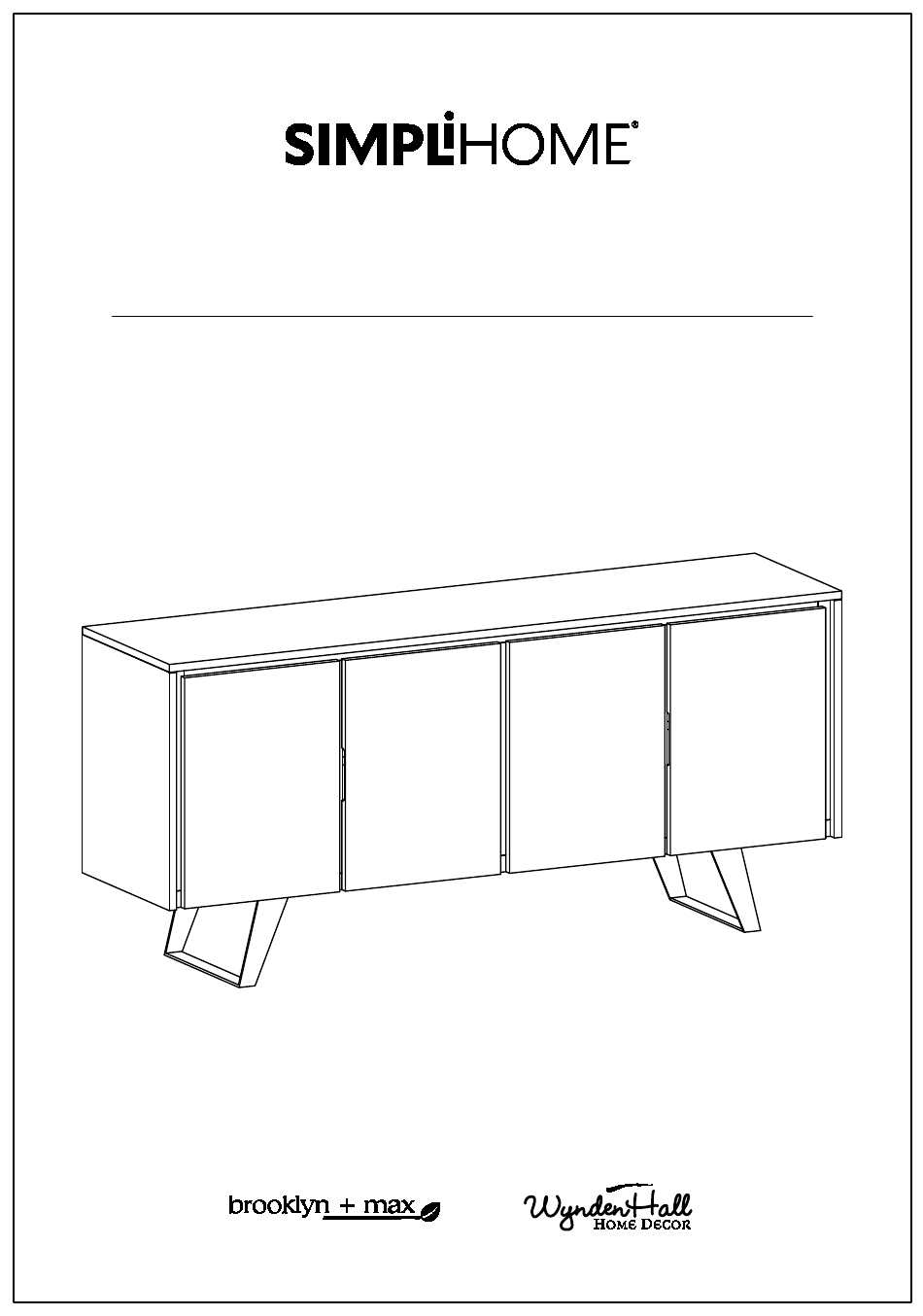

- Page 1 Lowry / Mitchell / Fulton Large 4 Door Sideboard Buffet Model # AXCLRYLG-11DCB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 Pre-Assembly Information Model # AXCLRYLG-11DCB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER BOTTOM SHELF MIDDLE DIVIDER QTY 1 QTY 1 QTY 1 RIGHT DIVIDER LEFT DOOR RIGHT DOOR QTY 1 QTY 2 QTY 2...
- Page 8 Pre-Assembly Information Model # AXCLRYLG-11DCB Part Description Warning Label SIDE SHELF MIDDLE SHELF UPPER BACK QTY 2 QTY 2 QTY 1 LOWER BACK JOINNING STRIP QTY 1 QTY 1 QTY 2...
- Page 9 Pre-Assembly Information Model # AXCLRYLG-11DCB Hardware Description PHILLIPS SCREW ROUND HEAD WOOD DOWEL ALLEN KEY SCREW M4 X 15mm MAGNET AND PLATE M6 X 30mm Ø8 X 30mm QTY 26 QTY 4 SETS QTY 30 QTY 14 PHILLIPS SCREW PHILLIPS SCREW ADJUSTABLE HINGE M3 X 15mm M4 X 15mm...
- Page 10 Components - Key Diagram Model # AXCLRYLG-11DCB...
- Page 11 Assembly Model # AXCLRYLG-11DCB Step 1 1. Insert Wood Dowels 2 into guide holes on each part BL , BR . 2. Insert Wood Dowels 2 into guide holes on Bottom Shelf C . 3. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 12 Assembly Model # AXCLRYLG-11DCB Step 2 1. Insert Wood Dowels 2 into guide holes on Middle Divider D . 2. Insert Wood Dowels 2 into guide holes on each Divider EL , ER . 3. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 13 Assembly Model # AXCLRYLG-11DCB Step 3 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach Dividers EL , ER , D to Bottom Shelf C . 2. Use nine Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3.
- Page 14 Assembly Model # AXCLRYLG-11DCB Step 4 1. Align Wood Dowels with guide holes on sides BL , BR and attach Sides BL , BR to Bottom Shelf C . 2. Use six Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3.
- Page 15 Assembly Model # AXCLRYLG-11DCB Step 5 1. Align Wood Dowels with guide holes on Top A and attach parts BL , BR , EL , ER , D to Top A . 2. Use three Allen Key Screws 1 to attach each part BL , BR , EL , ER , D through guide holes.
- Page 16 Assembly Model # AXCLRYLG-11DCB Step 6 9 10 11 1. Attach Legs L to Bottom Shelf C . 2. Use twelve Allen Key Bolts 9 , twelve Lock Washers 10 and twelve Washers 11 to secure part C and L (six Bolts, six Lock Washers and six Washers on each Leg). 3.
- Page 17 Assembly Model # AXCLRYLG-11DCB Note: Step 7 Warning Label 1. Attach the Top Back Panel I to back frame by using Phillips Screws 3 . Only 1st top row of screws to be screwed in advance. 2. Insert the Bottom Back Panel J into the slot of Plastic Joining Strip K . 3.
- Page 18 Assembly Model # AXCLRYLG-11DCB Step 8 1. Attach Adjustable Hinges 6 to Doors FL , FR using Phillips Screws 7 into guide holes on Doors FL , FR . 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 19 Assembly Model # AXCLRYLG-11DCB Step 9 1. Attach Adjustable Hinges 6 on Doors FL , FR to parts BL , BR , D using Phillips Screws 7 into guide holes on parts BL , BR , D . 2. Attach Magnets 4 using Phillips Screws 5 into guide holes on Dividers EL , ER . 3.
-
Page 20: Important Note
Assembly Model # AXCLRYLG-11DCB Step 10 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 21 Assembly Model # AXCLRYLG-11DCB Step 11 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 8 for each Shelf G , H in desired location. 2. Two Shelf Supports 8 may be used on back top of each Shelf G , H as a tipping restraint.
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
