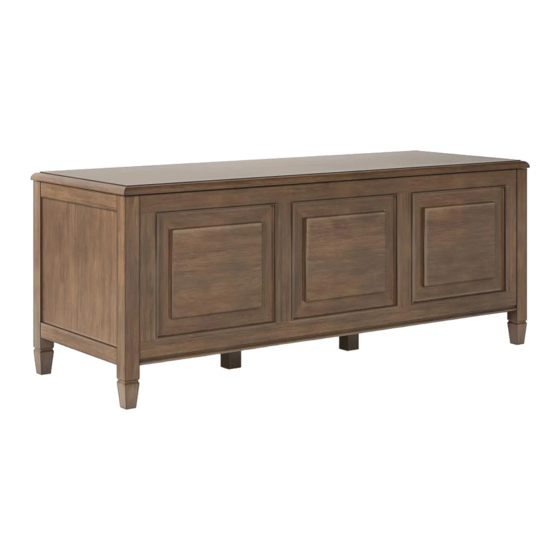

Storage bench trunk
Hide thumbs

Advertisement

Quick Links

Download this manual
SIMP
I
HOME
®
I
L I F E B Y D E S I G N
CONNAUGHT / HAMPSHIRE / SOMERSET
STORAGE BENCH TRUNK
MODEL # AXCCON42-RNAB
1/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wynden Hall brooklyn + max AXCCON42-RNAB and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home Wynden Hall brooklyn + max AXCCON42-RNAB

Summary of Contents for Simpli Home Wynden Hall brooklyn + max AXCCON42-RNAB

  • Page 1 SIMP HOME ® L I F E B Y D E S I G N CONNAUGHT / HAMPSHIRE / SOMERSET STORAGE BENCH TRUNK MODEL # AXCCON42-RNAB 1/14...
  • Page 2 SIMP HOME ® L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    MODEL # AXCCON42-RNAB PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE (L&R Same) SEAT QTY 2 QTY 1 BACK FRONT QTY 1 QTY 1 DIVIDER (L&R Same) BOTTOM PANEL QTY 2 QTY 1 BOTTOM SUPPORT LEG QTY 2 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCCON42-RNAB HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW WOOD DOWEL M6 x 30 mm CAM LOCK Ø8 X 30 mm QTY 8 SET QTY 12 QTY 8 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm M3.5 X 15 mm ALLEN KEY QTY 8...
  • Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXCCON42-RNAB 7/14...
  • Page 8 ASSEMBLY MODEL # AXCCON42-RNAB STEP 1 Small pre-drilled holes 1. Attach 4 Cam Lock Pins 2 to Back D into guide holes. 2. Align and insert Cam Lock Pins on Back D into pre-drilled holes on Dividers E . ( Note: please pay close attention to the location of the 2 small guide holes which accommodate the lid support.
  • Page 9 ASSEMBLY MODEL # AXCCON42-RNAB STEP 2 1. Attach Bottom Panel F to Divider E & Back D by sliding on the gap between Divider E & the long rail on Back D . 9/14...
  • Page 10 ASSEMBLY MODEL # AXCCON42-RNAB STEP 3 1. Attach 4 Cam Lock Pins 2 to Front C into guide holes. 2. Align and insert Cam Lock Pins on Front C into pre-drilled holes on Dividers E . 3. Place 4 Cam Locks 2 into pre-drilled holes on Dividers E (2 Cam Locks / each Divider ). 4.
  • Page 11 ASSEMBLY MODEL # AXCCON42-RNAB STEP 4 1. Insert 4 Dowels 3 into each Side B at specified location. 2. Align pre-drilled holes on side bars of Front C & Back D with Dowel 3 on Sides B . 3. Attach Front C & Back D to Sides B using 12 Allen Key Screws 1 through pre- drilled holes ( 6 Screws / each Side B ).
  • Page 12 ASSEMBLY MODEL # AXCCON42-RNAB STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach 2 Bottom Support Legs G into pre-drilled holes of Bottom Panel F using 8 Phillips Screws 7 ( 4 Screws / each part ). 2.
  • Page 13 ASSEMBLY MODEL # AXCCON42-RNAB STEP 6 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Seat A to 3 Hinges on Back D using Phillips Screws 6 ( using guide holes underneath of Seat ). 2. Use phillips screwdriver to tighten Screws. Do not over-tighten. STEP 7 Lid Support-Left Lid Support-Right...

  • Page 14: Warranty

    L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
