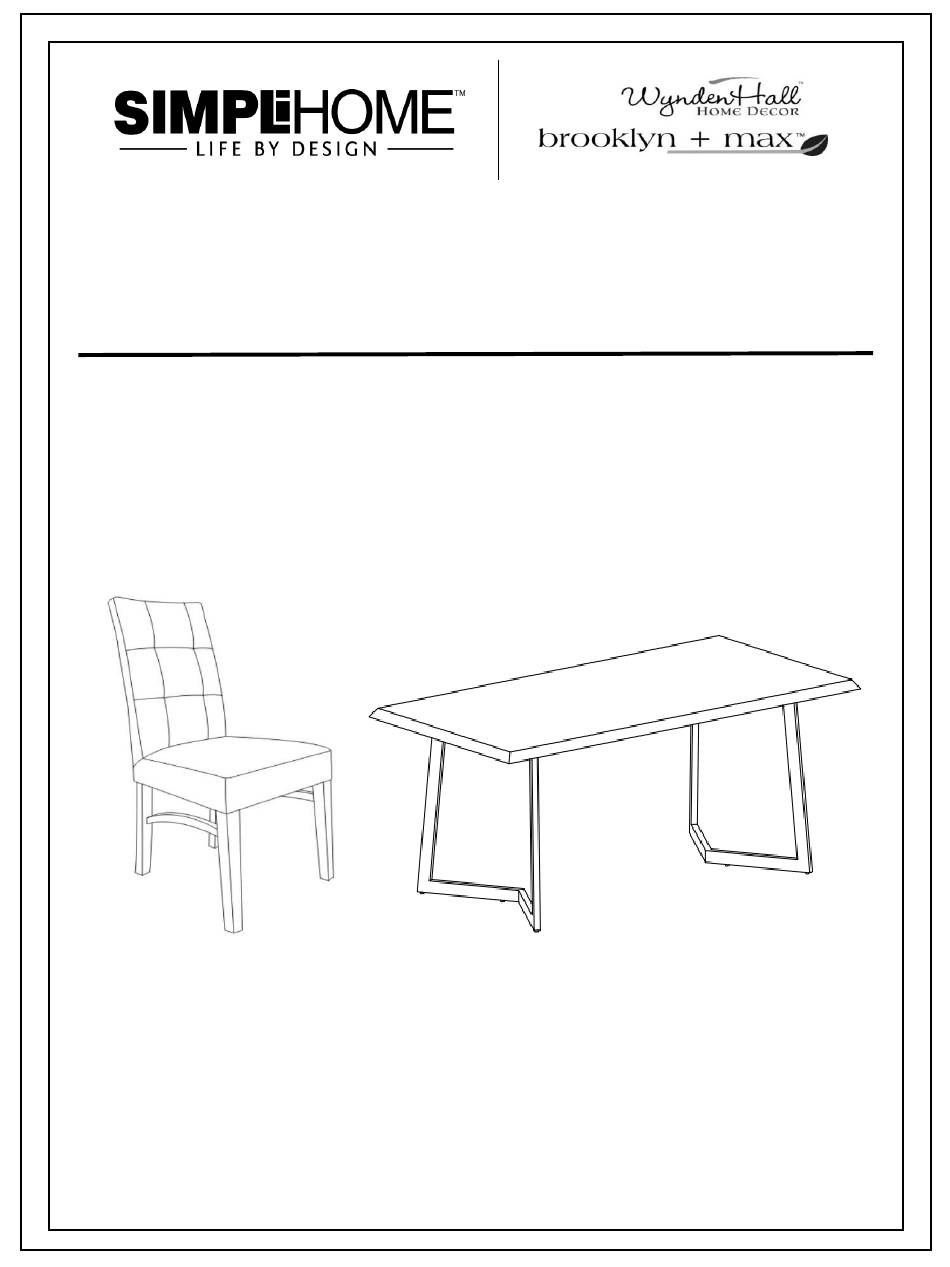

- Page 1 EZRA / HAWTHORNE / KENTVILLE EZRA III 7 PC DINING SET MODEL # AXCDS7EZW-SGL...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com To assist you in a timely manner, please ensure you have all necessary...
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. - Page 4 CARE and MAINTENANCE …cont’d...
- Page 5 WATKINS / HATHAWAY / HASTINGS DINING TABLE MODEL # AXCWTKDT...
- Page 6 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 (9 am to 4 pm EST)
- Page 11 EZRA / HAWTHORNE / KENTVILLE DINING CHAIR MODEL # AXCDCHR-003-SGL...
-
Page 12: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCDCHR-003-SGL PARTS DESCRIPTION LEFT STRETCHER SEAT CHAIR BACK QTY 1 QTY 1 QTY 1 RIGHT STRETCHER LEFT FRONT LEG RIGHT FRONT LEG QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 (9 am to 4 pm EST) -
Page 13: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCDCHR-003-SGL HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY SCREW M8 x 45 MM M8 x 60 MM M8 x 90 MM QTY 1 QTY 4 QTY 4 ALLEN KEY FLAT WASHER SELF-TAPPING SCREW 5 MM Ø22 MM Ø3.5 X 40 MM... - Page 14 ASSEMBLY MODEL # AXCDCHR-003-SGL STEP 1 Align Seat (B) into pre-drilled holes on Chair Back (A). Attach Seat (B) to Chair Back (A) using Allen Key Screw (1) and one Washer each of (4) and (7). Use Allen Key (6) tighten. Do not over-tighten.
- Page 15 ASSEMBLY MODEL # AXCDCHR-003-SGL STEP 2 Attach Seat (B) to Chair Back (A) using Allen Key Screws (3) and four Washers each of (4) and (7). Use Allen Key (6) tighten. Do not over-tighten.
- Page 16 ASSEMBLY MODEL # AXCDCHR-003-SGL STEP 3 Attach Front Legs (E & F) using Allen Key Screws (2) and four Washers each of (4) and (7). Use Allen Key (6) tighten. Do not over-tighten. Align the Stretchers (C & D) into Chair Back (A) and Front Legs (E & F). with Self-Tapping Screws (5).
- Page 17 ASSEMBLY MODEL # AXCDCHR-003-SGL STEP 4 Use the zipper to close the fabric on the bottom of the Chair.
- Page 18 ASSEMBLY MODEL # AXCDCHR-003-SGL STEP 5 Place Chair on a flat level surface to ensure it is level. If it is uneven, adjust either the Seat (B) or Front Legs (E) and (F). Ensure the Chair is level and then fully tighten all bolts.
-
Page 19: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
