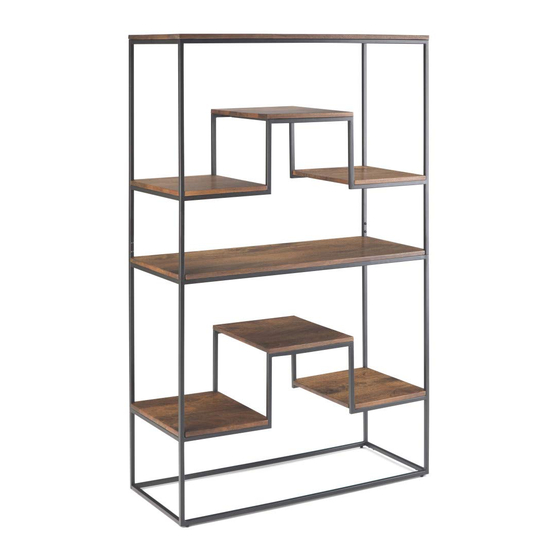

- Page 1 BYRON / ALVA / TAIT BOOKSHELF MODEL # AXCBRY - 12 1/20...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following information ready:...
- Page 3 IMPORTANT : for Please read this manual carefully before beginning assembly of this product. keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
-
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCBRY-12 PARTS DESCRIPTION FRAME FRAME QTY 2 QTY 2 TOP SHELF LONG CENTER SHELF QTY 1 QTY 1 SHELF SMALL CENTER SHELF CONNECTING SUPPORT QTY 4 QTY 2 QTY 2 HARDWARE DESCRIPTION WASHER LOCK WASHER ALLEN KEY BOLT ALLEN KEY BOLT Ø... - Page 6 COMPONENTS - KEY DIAGRAM MODEL # AXCBRY-12 6/20...
- Page 7 ASSEMBLY MODEL # AXCBRY-12 STEP 1 1. Attach Top Shelf to Frame A . 2. Use Four bolts 1 , Four Bolts 2 , Eight Washers 3 , Eight Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 7/20...
- Page 8 ASSEMBLY MODEL # AXCBRY-12 STEP 2 1. Attach Small Center Shelf to Frame A . 2. Use Two bolts 1 , Two Washers 3 , Two Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 8/20...
- Page 9 ASSEMBLY MODEL # AXCBRY-12 STEP 3 1. Attach Two Shelves to Frame A . 2. Use Four bolts 1 , Four Bolts 2 , Eight Washers 3 , Eight Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 9/20...
- Page 10 ASSEMBLY MODEL # AXCBRY-12 STEP 4 1. Attach Frame A to Frame A . 2. Use Ten bolts 1 , Eight Bolts 2 , Eighteen Washers 3 , Eighteen Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 10/20...
- Page 11 ASSEMBLY MODEL # AXCBRY-12 STEP 5 1. Attach Long Center Shelf to Frame B . 2. Use Four bolts 1 , Four Bolts 2 , Eight Washers 3 , Eight Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 11/20...
- Page 12 ASSEMBLY MODEL # AXCBRY-12 STEP 6 1. Attach Small Center Shelf to Frame B . 2. Use Two bolts 1 , Two Washers 3 , Two Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 12/20...
- Page 13 ASSEMBLY MODEL # AXCBRY-12 STEP 7 1. Attach Two Shelves to Frame B . 2. Use Four bolts 1 , Four Bolts 2 , Eight Washers 3 , Eight Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 13/20...
- Page 14 ASSEMBLY MODEL # AXCBRY-12 STEP 8 1. Attach Two Connecting Supports to Frame B . 2. Use Four bolts 2 , Four Washers 3 , Four Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 14/20...
- Page 15 ASSEMBLY MODEL # AXCBRY-12 STEP 9 1. Attach Frame B to Frame B . 2. Use Ten bolts 1 , Twelve Bolts 2 , Twenty Two Washers 3 , Twenty Two Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 15/20...
- Page 16 ASSEMBLY MODEL # AXCBRY-12 STEP 10 1. Attach Frame A to Frame B . 2. Use Eight bolts 2 , Eight Washers 3 , Eight Lock Washers 4 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 16/20...
- Page 17 ASSEMBLY MODEL # AXCBRY-03 STEP 11 Note: Levelers on bottom of legs can be adjusted if floor is uneven. 17/20...
- Page 18 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. if the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not included in the hardware pack 18/20...
- Page 19 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: 1. Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. 2. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 20: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
