Summary of Contents for Simpli Home ACADIAN

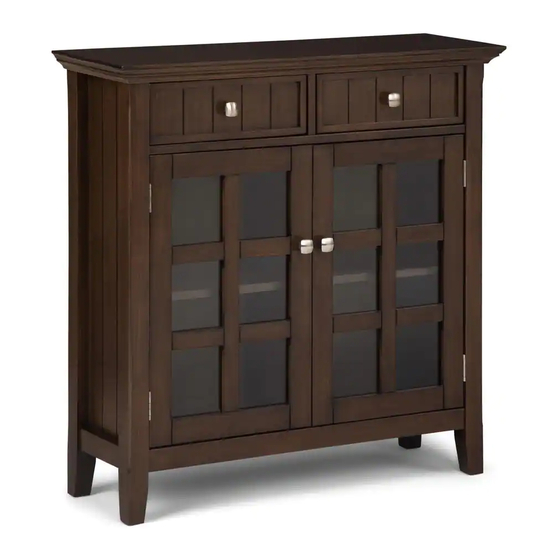

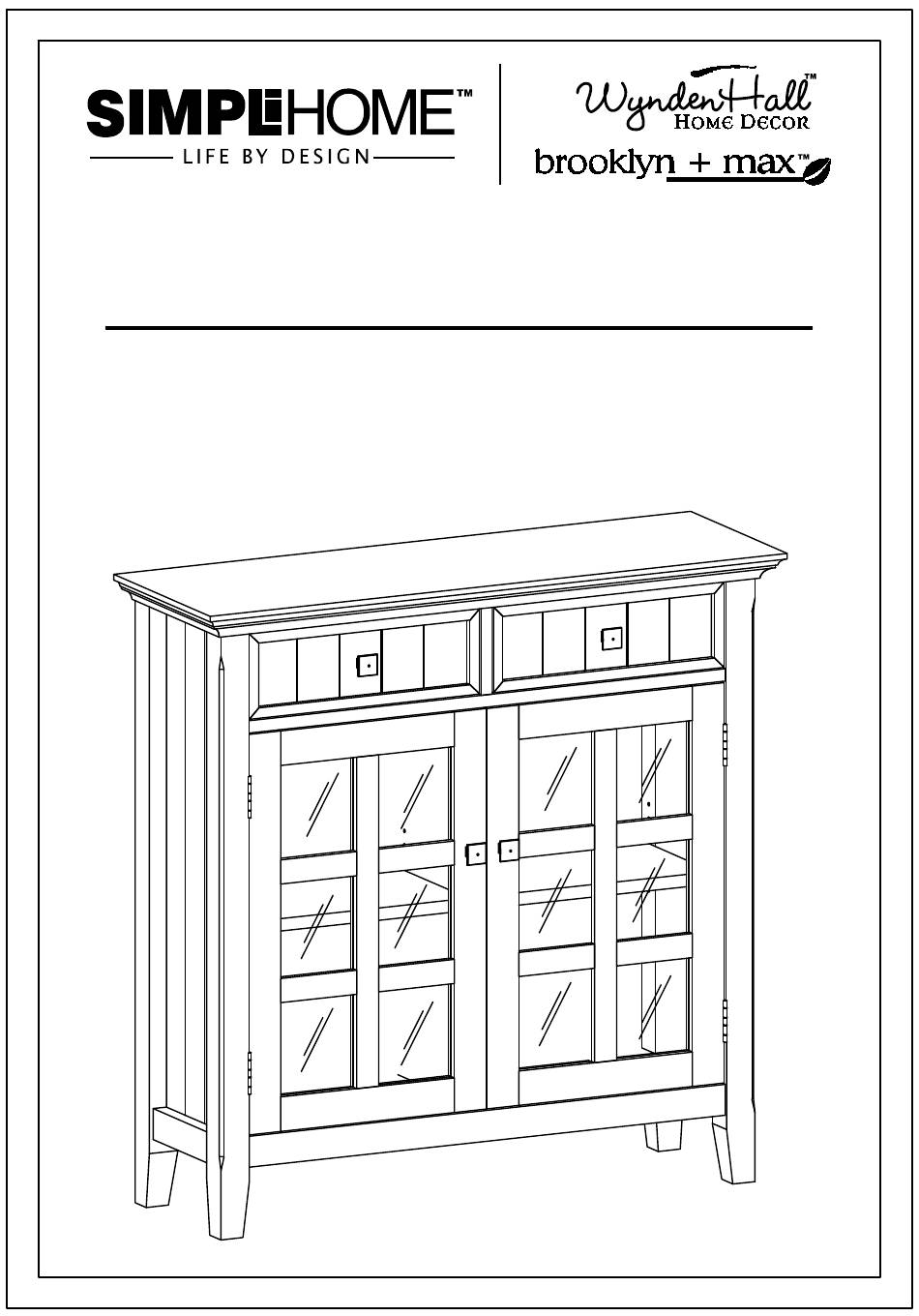

- Page 1 ACADIAN / NORMANDY / BRUNSWICK ENTRYWAY STORAGE CABINET MODEL # AXCRACA47-BRU 1/22...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following information ready: Model # _________________Part Number or Letter_____________________ Purchased at ____________Date of Purchase _________________________...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION 3/22... -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE 4/22... -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCRACA47-BRU PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 SMALL DIVIDER LARGE DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 LEFT DOOR CABINET SHELF MIDDLE FRAME QTY 1 QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCRACA47-BRU PART DESCRIPTION Warning Label LEFT BACK PANEL RIGHT BACK PANEL RIGHT DOOR QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 2 QTY 2 QTY 2 DRAWER BOTTOM DRAWER BACK QTY 2 QTY 2 NEED HELP? For help with assembly or if you are missing a part,...
-
Page 7: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCRACA47-BRU HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW WOOD DOWEL M6 X 30mm CAM LOCK M8 X 30mm ALLEN KEY QTY 14 SETS QTY 18 QTY 10 QTY 1 PHILLIPS SCREW HANDLE PHILLIPS SCREW ROUND HEAD M4 X 15 mm -2PC SHELF SUPPORT M3 X 15mm... - Page 8 COMPONENTS-KEY DIAGRAM MODEL # AXCRACA47-BRU 8/22...
- Page 9 ASSEMBLY MODEL # AXCRACA47-BRU STEP-1 1. Attach 4 Cam Lock Pins 2 to pre-drilled holes at back of Drawer Front J . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides KL , KR . 3. Insert 2 Cam Locks 2 into guide holes on each Drawer Side KL , KR . 4.
- Page 10 ASSEMBLY MODEL # AXCRACA47-BRU STEP-3 1. Align Drawer Back L with Drawer Bottom M and press firmly into slot. 2. Attach Drawer Back L using 2 Allen Key Screws 1 through guide holes on each Side KL , KR . 3.
- Page 11 ASSEMBLY MODEL # AXCRACA47-BRU STEP-5 1. Insert 2 Dowels 3 into guide holes on bottom of Large Divider C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
- Page 12 ASSEMBLY MODEL # AXCRACA47-BRU STEP-6 1. Attach Middle Frame F to Large Divider C using 2 Allen Key Screws 1 . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten. 12/22...
- Page 13 ASSEMBLY MODEL # AXCRACA47-BRU STEP-7 1. Attach 2 Cam Lock Pins 2 into pre-drilled holes at the top of Middle Frame F . 2. Align Cam Lock Pins with guide holes on Small Divider D . 3. Insert 2 Cam Locks 2 into guide holes on Small Divider D . 4.
- Page 14 ASSEMBLY MODEL # AXCRACA47-BRU STEP-8 1. Insert 4 Dowels 3 into guide holes on Middle Frame F ( 2 dowels on each side ). 2. Insert 4 Dowels 3 into guide holes on Bottom Shelf E ( 2 dowels on each side ). 3.
- Page 15 ASSEMBLY MODEL # AXCRACA47-BRU STEP-9 1. Attach Top A to Sides BL , BR and Small Divider D using 6 Allen Key Screws 1 (2 screws on each Side and Small Divider). 2. Use Allen Key 4 to tighten Screws. Do not over-tighten. 15/22...
- Page 16 ASSEMBLY MODEL # AXCRACA47-BRU STEP-10 Warning Label 16/22...
- Page 17 ASSEMBLY MODEL # AXCRACA47-BRU STEP-11 First Step Last Step ( after adjust the door ) 17/22...
- Page 18 ASSEMBLY MODEL # AXCRACA47-BRU STEP-12 18/22...
- Page 19 ASSEMBLY MODEL # AXCRACA47-BRU STEP-13 19/22...
- Page 20 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-14 20/22...
- Page 21 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
- Page 22 Thank you for purchasing a product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. In case of any malfunction of your product (failure, missing parts, etc.) please contact us at our toll free service line at 1-866-518-0120 ext.
