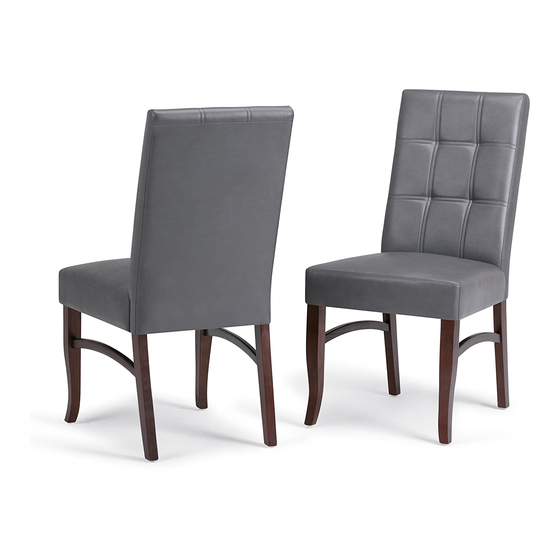

Dining chair
Hide thumbs Also See for EZRA AXCDCHR-003-G:
Table of Contents

Advertisement

Quick Links

Download this manual
EZRA / HAWTHORNE / KENTVILLE
DINING CHAIR
MODEL # AXCDCHR-003-
G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZRA AXCDCHR-003-G and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home EZRA AXCDCHR-003-G

Summary of Contents for Simpli Home EZRA AXCDCHR-003-G

  • Page 1 EZRA / HAWTHORNE / KENTVILLE DINING CHAIR MODEL # AXCDCHR-003-...
  • Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM...

  • Page 3: Safety Information

    IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION CHAIR BACK SEAT CUSHION LEFT STRETCHER QTY 1 QTY 1 QTY 1 RIGHT STRETCHER LEFT FRONT LEG RIGHT FRONT LEG QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.

  • Page 5: Hardware Description

    PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY SCREW M8 X 45 mm M8 X 60 mm M8 X 90 mm QTY 1 QTY 4 QTY 4 WASHER SELF TAPPING SCREW ALLEN KEY QTY 9 QTY 1 QTY 4 LOCK WASHER QTY 9...
  • Page 6 ASSEMBLY STEP 1 and one Washer each of and (7).
  • Page 7 ASSEMBLY STEP 2 Attach Seat Cushion (B) to Chair Back (A) using Allen Key Screws (3) and four Washers each of (4) and (7). Use Allen Key (6) to tighten. Do not over-tighten.
  • Page 8 ASSEMBLY STEP 3 Attach Front Legs ( ) using Allen Key Screws (2) and E & F four Washers each of (4) and (7). Use Allen Key (6) to tighten. Do not over-tighten. Align the Stretcher ( ) into Chair Back (A) and Front C &...
  • Page 9 ASSEMBLY STEP 4 Place Chair on a flat level surface to ensure it is level. If it is uneven, adjust either the Seat (B) or Front Legs ( ) and ( ) to ensure the Chair is level and then fully tighten the bolts.
  • Page 10 ASSEMBLY STEP 5 Use the zipper to close the fabric on the bottom of the Chair.
  • Page 11 ASSEMBLY STEP 6 Turn Chair right side up.

  • Page 12: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
  • Page 13 Question, problems, missing parts? Before returning your product please email Customer Support at customerservice@simpli-home.com or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
