MikroTik hAP ac3 LTE6 kit Quick Start Manual

7/30/2021
Pages / User Manuals / LTE products

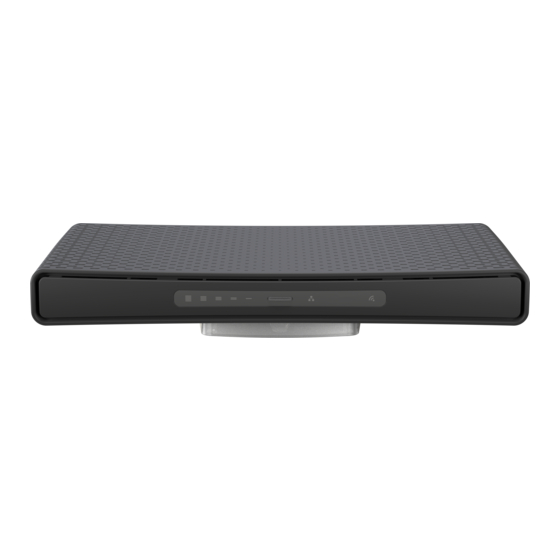

hAP ac3 LTE6 kit
The hAP ac3 LTE6 kit is a simple home wireless access point. It is configured out of the box, you can simply insert your SIM card and start using wireless internet.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
Read the installation instructions before connecting the system to the power source.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic

Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.

Quickstart

Please follow these quick steps to set up your device:
Insert micro SIM card into the slot;
After inserting the SIM card close to the SIM port lid, do not remove the card while the device is powered on.
Connect the device to the power source (see "Powering");
Open network connections on your PC, mobile phone, or other device and search for MikroTik wireless network and connect to it;
The configuration has to be done through the wireless network using a web browser or mobile app - (see
Configuration tool https://mt.lv/winbox;
Once connected to the wireless network, open
When using a mobile application choose Quick setup and it will guide you through all necessary configuration in six easy steps;
Click the "Check for updates" button on the right side and update your RouterOS software to the latest version, must have a valid SIM card inserted;
To personalize your wireless network, SSID can be changed in the fields "Network Name";
Choose your country on the left side of the screen in the field "Country", to apply country regulation settings;
Set up your wireless network password in the field "WiFi Password" the password must be at least eight symbols;
Set up your router password in the bottom field "Password" to the right and repeat it in the field "Confirm Password", it will be used to login next time;
Click on the "Apply Configuration" to save changes.

MikroTik mobile app

Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point.
1. Scan QR code and choose your preferred OS.
2. Install and open application.
3. By default, the IP address and user name will be already entered.
4. Click Connect to establish a connection to your device through a wireless network.
5. Choose Quick setup and application will guide you through all basic configuration settings in a couple of easy steps.
6. An advanced menu is available to fully configure all necessary settings.

Powering

The device accepts powering from the adapter:
Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) 12-28 V DC⎓.
The power consumption under maximum load can reach 16 W, with attachments 22 W.

Base plate mounting instruction

1. The base plate comes with the package, in order to assemble please follow these instructions.
https://help.mikrotik.com/docs/display/UM/hAP+ac3+LTE6+kit
hAP ac3 LTE6 kit - User manuals - MikroTik Documentation
https://192.168.88.1 in your web browser to start configuration, user name: admin and there is no password by default;
"MikroTik mobile app"). Alternatively, you can use a WinBox
