Summary of Contents for BOERPLAY Adventure Play PSTE000.152

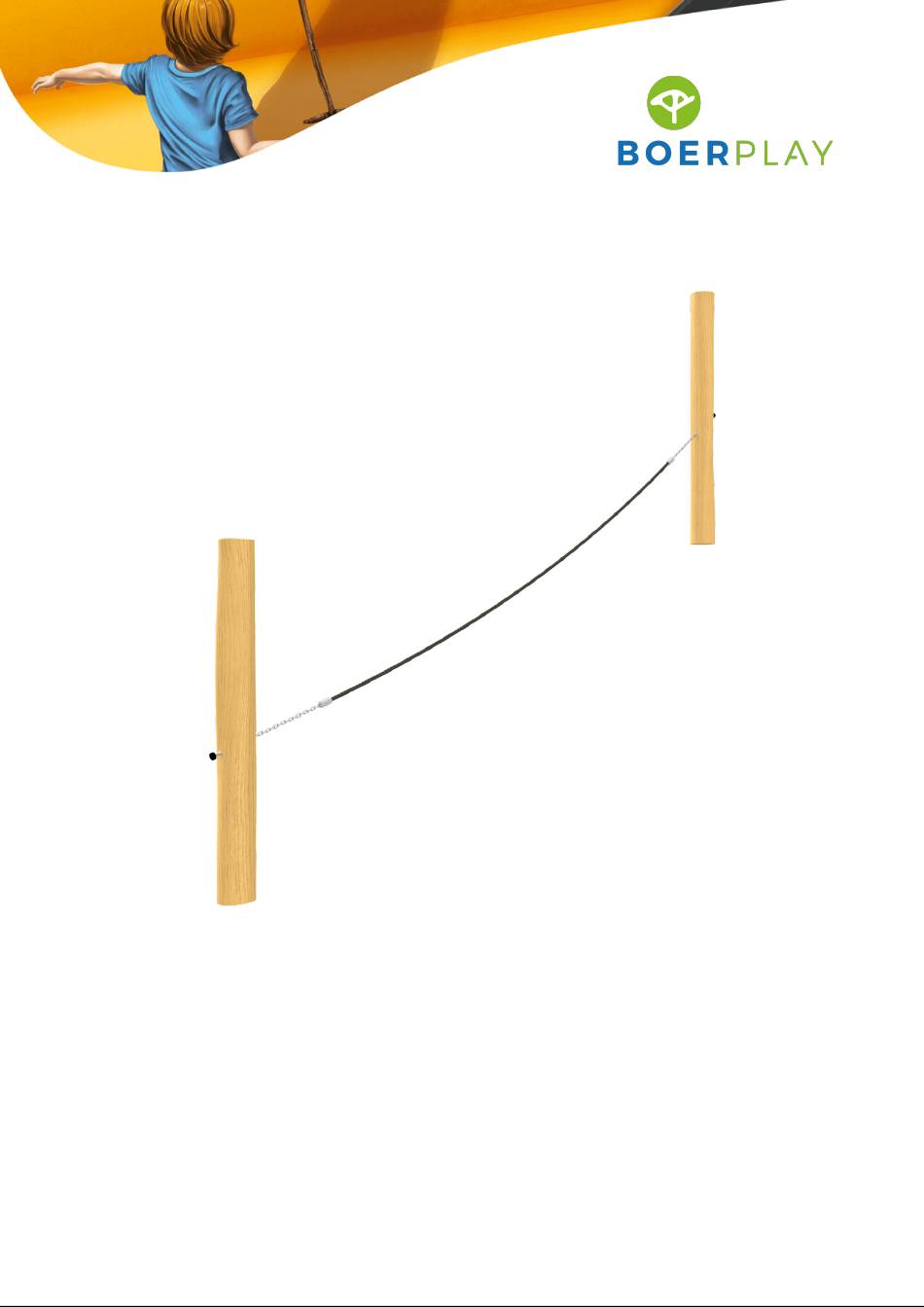

- Page 1 Climbing rope PSTE000.152...
- Page 2 3,60 m 2,99 m 1,27 m 1,10 m 0,00 m Benaming TOE PST 000 152 Laag parcours Title Tekening Opmerking Adventure Play Drawing Comment Datum Hoofdafmetingen Main dimensions 2-6-2020 Date...
- Page 3 3,20 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE PST 000 152 Laag parcours Title Tekening Opmerking Adventure Play Drawing Comment Datum Obstakelvrije zone Obstacle free zone 2-6-2020 Date...
- Page 4 1,60 m 3,00 m 1,60 m Grondmarkering Ground level marker Grondmarkering Ground level marker Benaming TOE PST 000 152 Laag parcours Title Tekening Opmerking Adventure Play Drawing Comment Datum Bodemplan Groundplan 2-6-2020 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections Assembly sequence: Montagevolgorde:...
- Page 6 LOGBOOK Type indication Adventure Play Article number PSTE000.152 Product Name Climbing rope Maximum fall height 0.6 m Construction year 2021 Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 Installer name _______________________________________________________ _______________________________________________________...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 10 A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking BORGMOER M12 - RVS A2-70 Sluitring D-sluiting 5 MM RVS Dop zwart Beschermdop M10-M12 RING KUNSTSTOF Slotbout met lip M12x150 Handtouw 4,0 m Adventure Play Benaming MOD PST 016 201 Handtouw 4,0 m Title Tekening...
- Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Paal 14-16 Lengte =2000 Beton stort 80x80x30 cm Draadeind M10 x 450 - VZ 8.8 Benaming MOD PST 501 020 Staander 2m betonvoet Title Tekening Opmerking Adventure Play Drawing Comment BOER Datum Samenstelling module Assembly module 29-7-2016 Date SPEELTOESTELLEN...
- Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Paal 14-16 Lengte =2500 Beton stort 80x80x30 cm Draadeind M10 x 450 - VZ 8.8 Benaming MOD PST 501 025 Staander 2,5 m betonvoet Title Tekening Opmerking Adventure Play Drawing Comment Datum Samenstelling module Assembly module 6-11-2017 Date...
