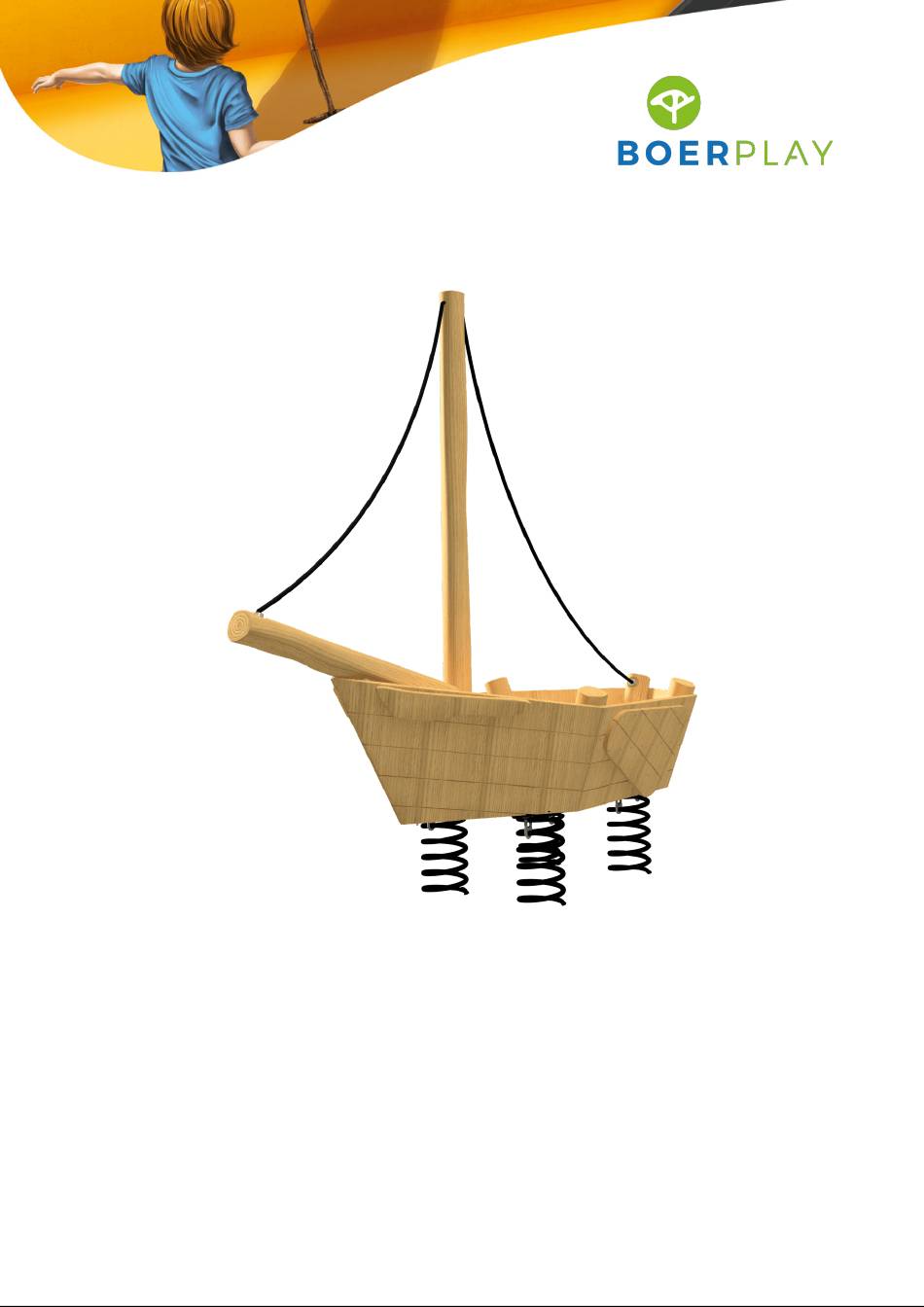

- Page 1 Springer Playship PSTE000.160...
-
Page 2: Main Dimensions
Hauptabmessungen Dimensiones principales Dimensions principales 1,19 m 1,58 m 2,53 m 2,47 m 1,23 m 0,99 m 0,85 m 0,42 m 0,00 m 0,67 m 0,77 m 1,57 m 3,01 m PST 000 160 © Copyright BOERplay 1-4-2022 Revision: D... - Page 3 Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles 4,7 m PST 000 160 © Copyright BOERplay 1-4-2022 Revision: D...
- Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 2,11 m 0,49 m 2,11 m 1100 Grondmarkering Ground level marker PST 000 160 © Copyright BOERplay 1-4-2022 Revision: D...
-
Page 5: Order Of Assembly
3 - check the dimensions of the safety area compared to the play equipment Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Veer boot Onderstel PST.000.160 Veerschip Houten bootje Ankerplaat PST.000.160 PST 000 160 © Copyright BOERplay 1-4-2022 Revision: D... - Page 6 LOGBOOK Type indication Adventure Play Article number PSTE000.160 Product Name Springer Playship Maximum fall height 1,3 m Construction year 2023 Certificate 025860 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
