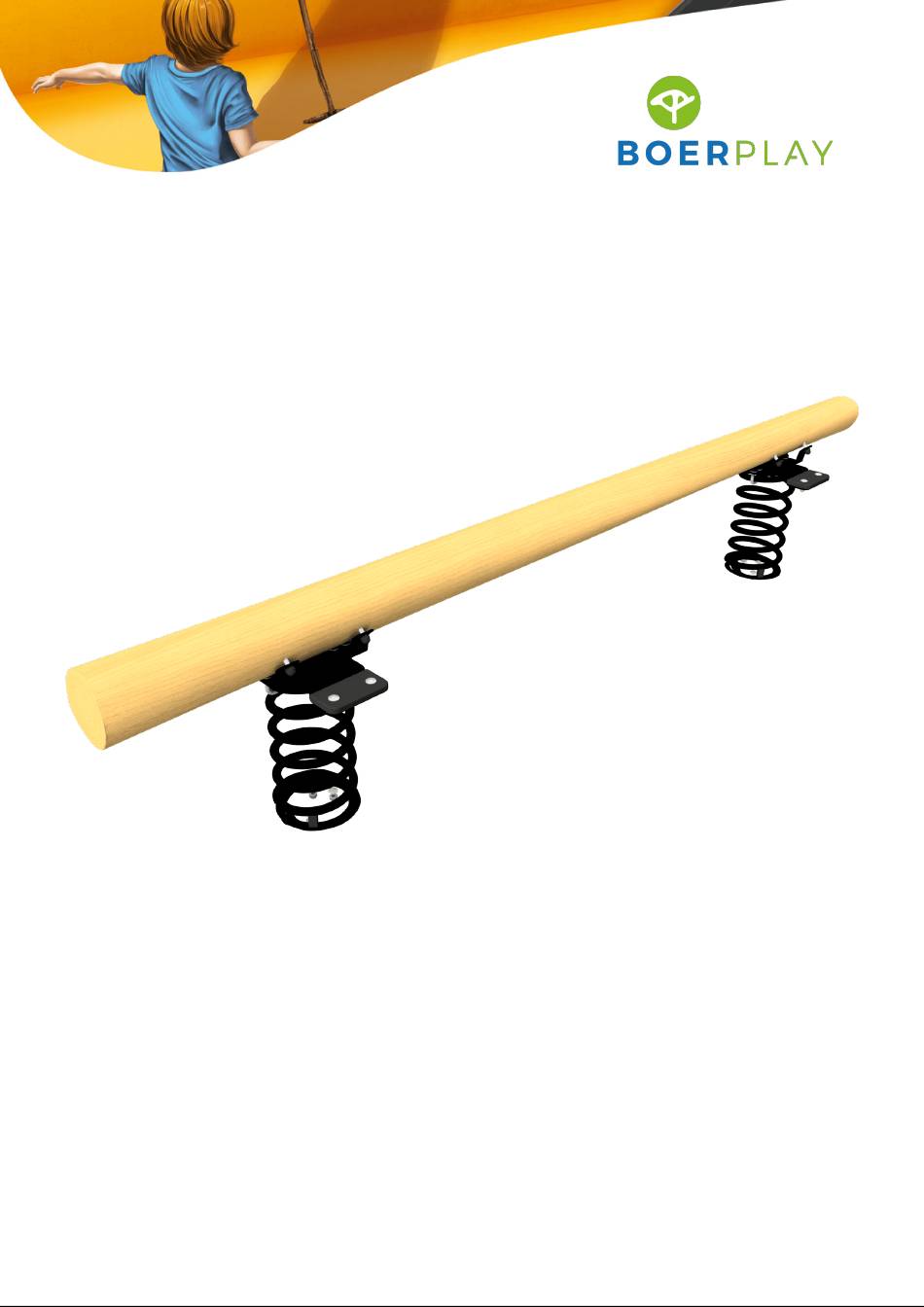

- Page 1 Springer beam PSTE000.145...
-
Page 2: Main Dimensions
Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales Uiteinden Afronden met > R20 (2x) 0,37 m 0,19 m 0,00 m PST 000 145 © Copyright BOERplay 21-2-2022 Revision: B... - Page 3 Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles 3,50 m PST 000 145 © Copyright BOERplay 21-2-2022 Revision: B...
- Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 2,25 m 2,25 m 2,00 m 0,48 m Grondmarkering Ground level marker 0,5 m PST 000 145 © Copyright BOERplay 21-2-2022 Revision: B...
-
Page 5: Order Of Assembly
Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Veerbalk Adventure Play Veerstier Onderstel PST 000 145 © Copyright BOERplay 21-2-2022 Revision: B... - Page 6 1 - correcte opbouw en alle bevestigingsmiddelen 2 - controleer de afmetingen van de valbodem t.o.v. het toestel 2 - check the dimensions of the safety area compared to the play equipment PST 000 145 © Copyright BOERplay 21-2-2022 Revision: B...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE000.145 Product Name Springer beam Maximum fall height 0,6 m Construction year 2023 Certificate 032684 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 M10 - VZ 8.8 HOUTDRAADBOUT M10 X 80 SLOTBOUT M10x35 SLUITRING M10 VZ Voetsteun Veerelement M10 zwart Afdekdop zeskantbout Veerplaat met voetsteun "stier" Veer 40 cm, Ø 20 cm Schotel en U-bouten Veerwippen Grondanker MOD PST 006 131 © Copyright BOERplay 10-8-2021 Revision:...
- Page 13 Beide uiteinden afronden R>3 mm Type Progr. Volgnr Bew. Rev. Benaming Opmerking Paal 18-20 Lengte =3000 B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PST 006 031 Veerbalk Title...
