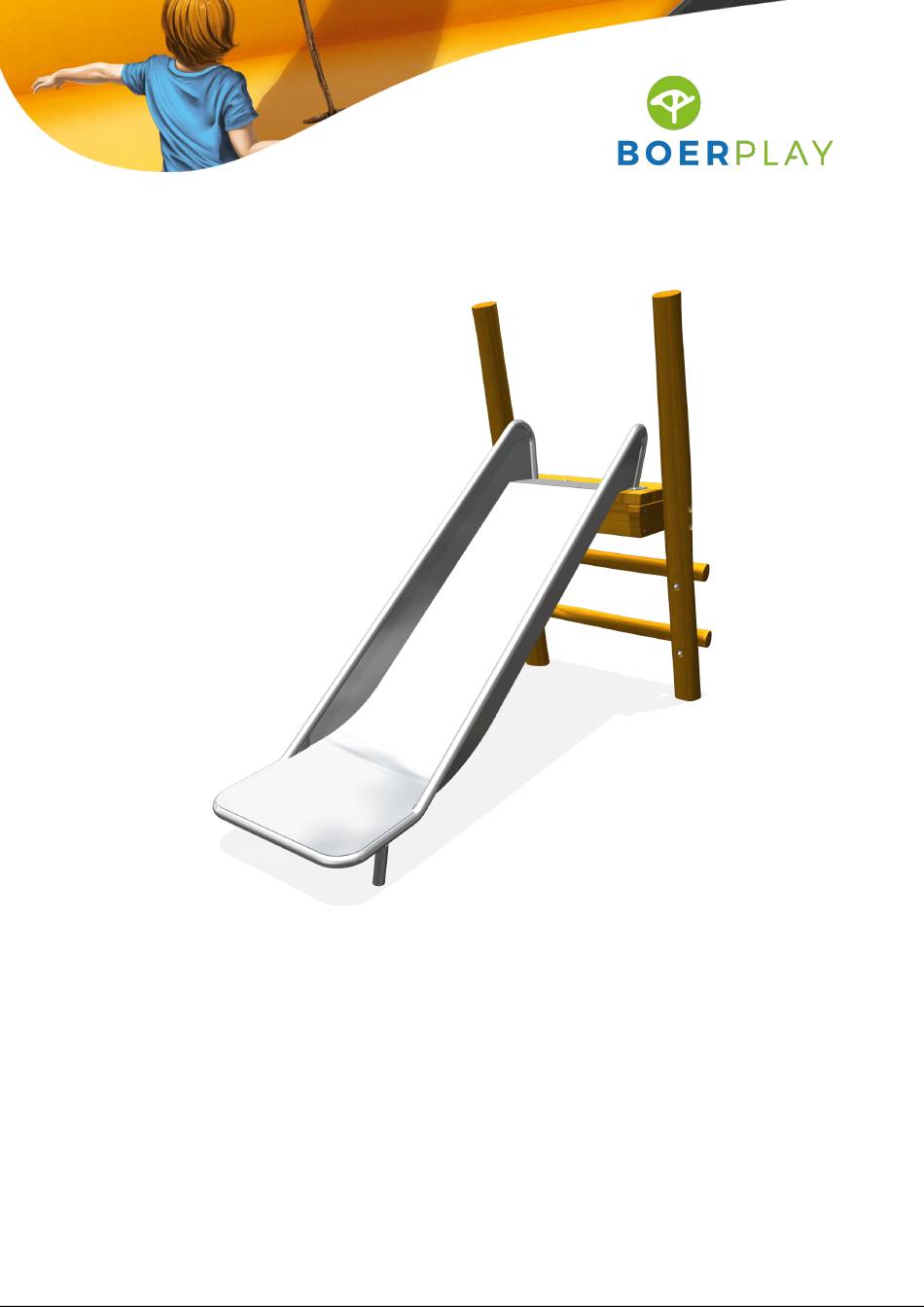

- Page 1 Detached Slide 0.8-0.93m 0.8 - 0.93m PSTE000.230...
- Page 2 1,68 m 0,93 m 0,00 m 2,10 m > 0,35 m Benaming Glijbaan TOE PST 000 230 Title Tekening Opmerking Vrijstaand 1,0 m Drawing Comment Datum Hoofdafmetingen Main dimensions 13-7-2023 Date...
- Page 3 3,90 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming Glijbaan TOE PST 000 230 Title Tekening Opmerking Vrijstaand 1,0 m Drawing Comment Datum Obstakelvrije zone Obstacle free zone 13-7-2023 Date...
- Page 4 1,68 m 1,41 m 2,00 m 0,25 m 0,18 m Grondmarkering Ground level marker Benaming Glijbaan TOE PST 000 230 Title Tekening Opmerking Vrijstaand 1,0 m Drawing Comment Datum Bodemplan Groundplan 13-7-2023 Date...
- Page 5 Geleverde delen: Supplied parts: A - ladder A - ladder B - glijbaan B - slide Bevestiging sets: Mounting kits: 1 - slotbout M10 incl. moer en ring (6x) 1 - M10 bolt with washer and lock nut (6x) Montagevolgorde: Assembly sequence: 1 - monteer A aan B met set 1 op de voorgeboorde gaten 1 - mount part A to B using set 1 on the pre-drilled holes...
- Page 6 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Trap glijbaan 93 cm Benaming Glijbaan TOE PST 000 230 Title Tekening Opmerking Vrijstaand 1,0 m Drawing Comment Datum Modules Modules 13-7-2023 Date...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE000.230 Product Name Detached Slide 0.8-0.93m 0.8 - 0.93m Maximum fall height 1,0 m Construction year 2024 Certificate 033859 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 M10 - RVS A2-70 Beschermdop M10-M12 Donut zwart Dop zwart Beschermdop M10-M12 Lengte =900 Paal 6 Paal 10-12 Lengte =2500 Standaard plank 120x20 Lengte = 1000 Startbordes Glijbaan Glijbaan 93 cm MOD PST 002 199 © Copyright BOERplay 13-7-2023 Revision: B...
