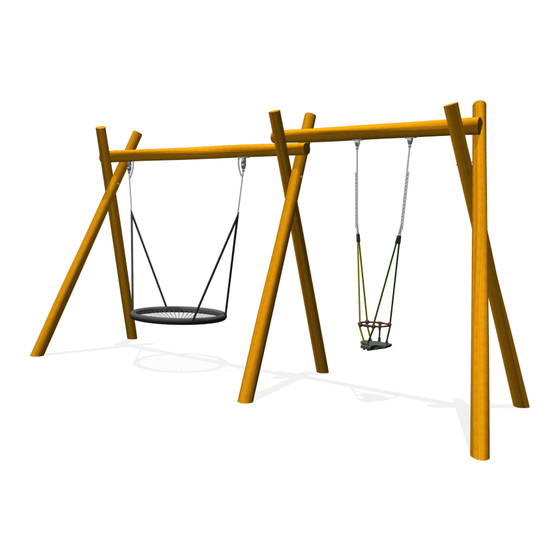

Multi Swing with bird's nest swing
120cm H2.5
PSTE000.120

Advertisement

loading
Need help?

Need help?

Do you have a question about the Multi Swing with bird's nest swing 120cm H2.5 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY Multi Swing with bird's nest swing 120cm H2.5

Summary of Contents for BOERPLAY Multi Swing with bird's nest swing 120cm H2.5

  • Page 1 Multi Swing with bird's nest swing 120cm H2.5 PSTE000.120...
  • Page 2 Ligger mag 180 gedraaid worden Beams can be 180 rotate 2,83 m 2,61 m 2,47 m 0,00 m > 0,35 m > 0,40 m Benaming TOE PST 000 120 B Duo Schommel XL Title Tekening Opmerking Adventure Play Drawing Comment Datum Afmetingen Dimensions 20-1-2020...
  • Page 3 2,44 m 0,97 m 4,64 m 7,01 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 120 B Duo Schommel XL Title Tekening Opmerking Adventure Play Drawing Comment Datum Obstakelvrije zone Obstacle free zone 20-1-2020 Date...
  • Page 4 0,47 m 3,46 m 2,22 m 0,86 m 0,44 m 0,27 m 0,60 m 3,19 m 2,56 m 0,66 m Grondmarkering Ground level marker 0,90 m Benaming TOE PST 000 120 B Duo Schommel XL Title Tekening Opmerking Adventure Play Drawing Comment Datum...
  • Page 5 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Duo XL Schommel Frame Adventure Play Vogelnest 1,2 m Schommelzitje Peuterzitje Ketting 2.0 m Benaming TOE PST 000 120 B Duo Schommel XL Title Tekening Opmerking Adventure Play Drawing Comment Datum Modules Modules 20-1-2020 Date...
  • Page 6 Geleverde delen: Supplied parts: Zie Tabel Sie table Montagevolgorde: Assembly sequence: 1 - graaf de gaten volgens het bodemplan en plaats hierin de frames A,B en C 1 - dig the holes according to the ground plan and place the frames A,B and C 2 - plaats D verbind deze met A en C 2 - place D connect this with A and C 3 - Plaats E verbind deze met B en C...
  • Page 7 LOGBOOK Type indication Adventure Play Article number PSTE000.120 Product Name Multi Swing with bird's nest swing 120cm H2.5 Maximum fall height 1,5 m Construction year 2023 Certificate 032391 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 Type Progr. Bew. Rev. Benaming Volgnr. Opmerking M12, L= 300, RVS A2-70 Draadeind+borgm.+ringen+dop Paal 14-16 Lengte =2000 Paal 14-16 Lengte =3170 Frame Type C Schommels Frame Type B Schommels Frame Type A Schommels Benaming MOD PST 001 007 E Duo XL Schommel Frame Title Tekening Opmerking...
  • Page 13 Hoek ketting > 60° (ketting niet strak) Opening altijd < 157x89 mm Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M12 - RVS A2-70 Slotbout M12 x 150 - RVS A2-70 M12 - RVS A2-70 Sluitring D-sluiting 5 MM RVS Scharnier dubbel NORMAAL RVS A2-70 Vogelnest Ø1,2 m...
  • Page 14 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M12 - RVS A2-70 Slotbout M12 x 150 - RVS A2-70 Sluitring M12 - RVS A2-70 Schommelscharnier RVS A2-70 Peuterschommel Peuterzitje Benaming MOD PST 003 003 Peuterzitje Title Tekening Opmerking Ketting 2.0 m Drawing Comment Datum...
