INSTALLATION

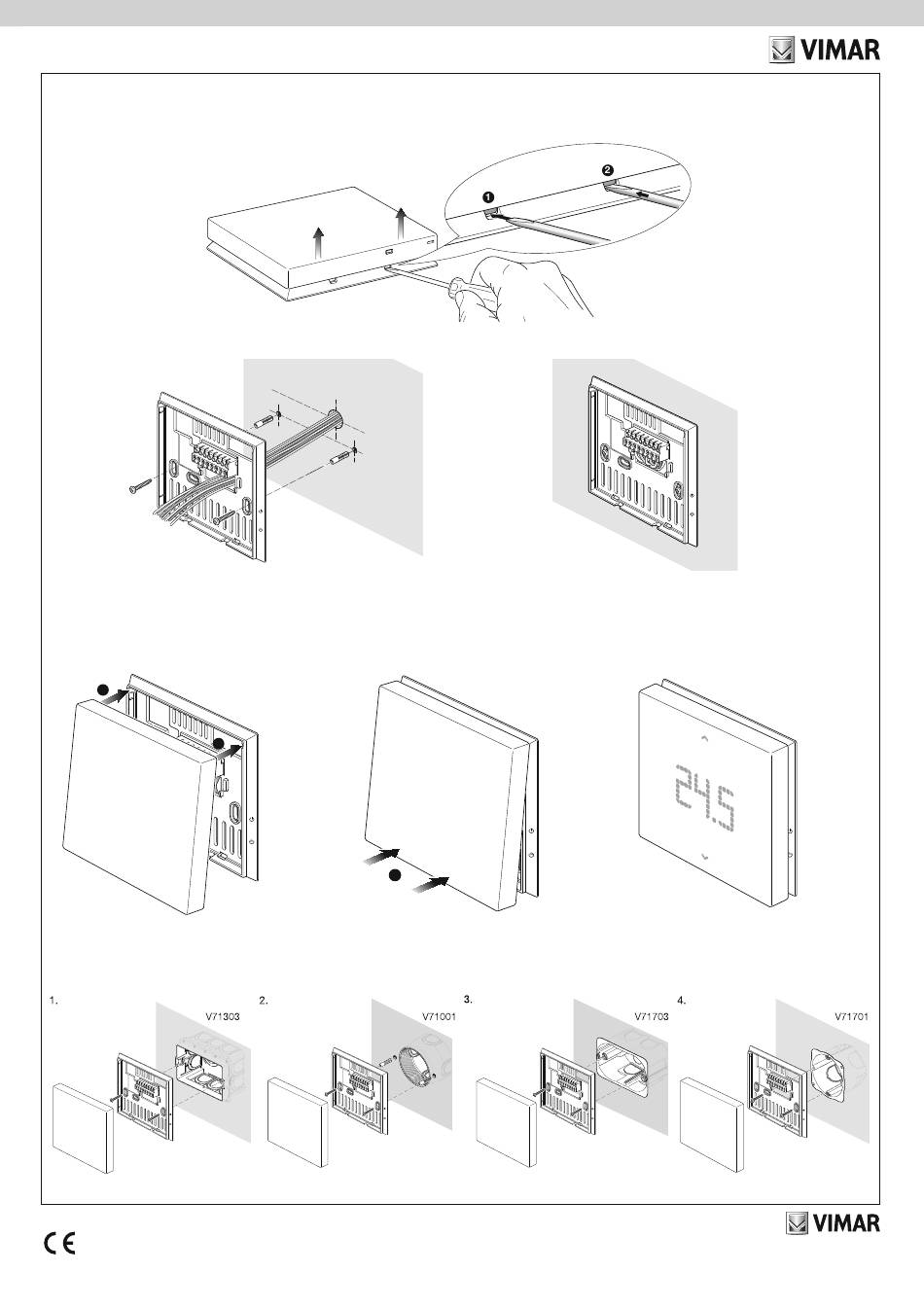

Using a screwdriver, detach the thermostat from the bracket as shown in the figure.
2
1
Make the connections and fix the bracket to the wall.
Caution: Tighten the wall bracket screws, applying sufficient torque without exaggerating, in order to avoid warping it.
Fix the thermostat to the bracket using the dedicated attachments shown in the figure.
1
1
2
TYPES OF INSTALLATION
Viale Vicenza 14
36063 Marostica VI - Italy
www.vimar.com
02912 01 2111
