Vimar SMART CLIMA 02912 Installation page 2

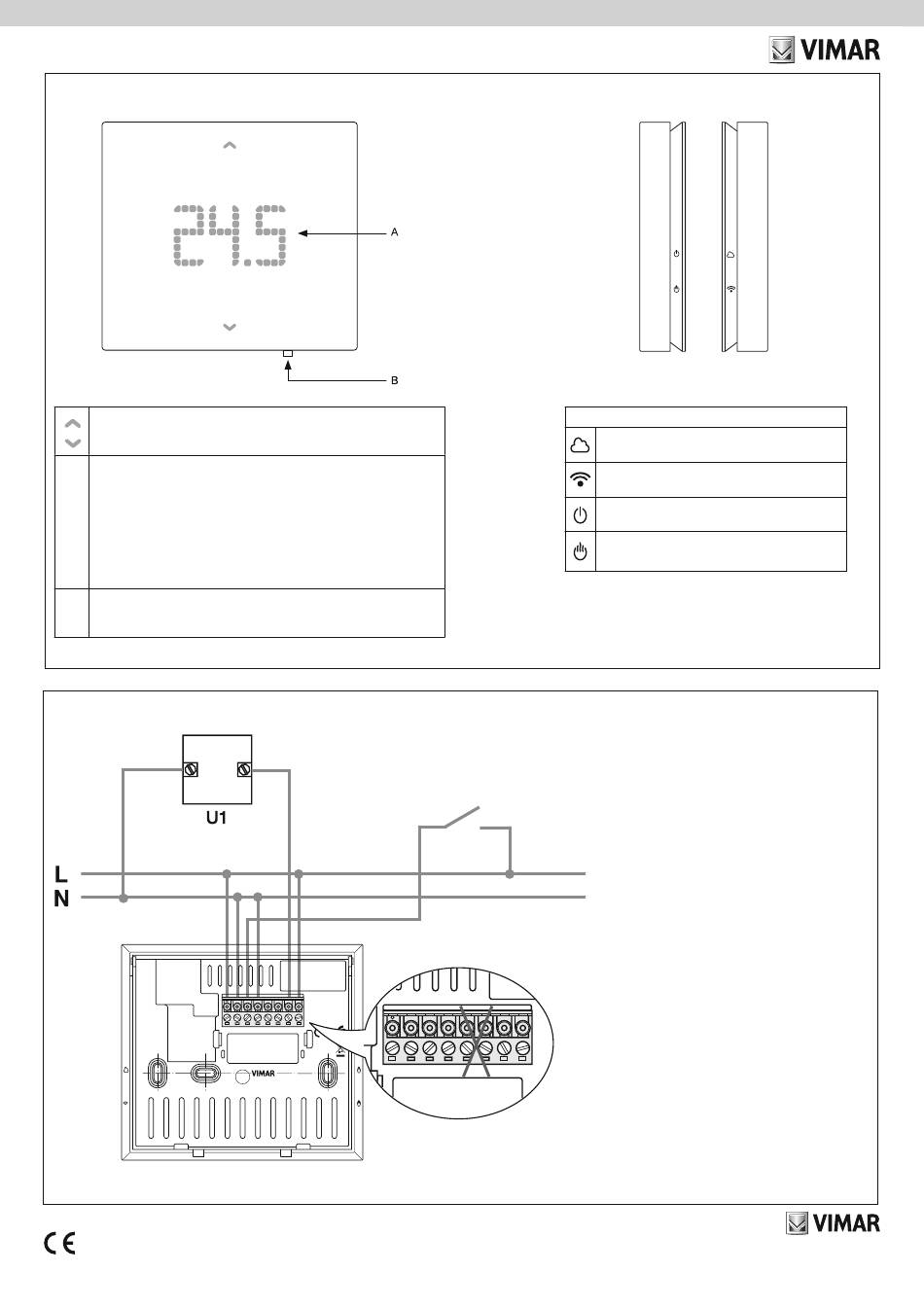

VIEWS
• Short press = adjustment of set point from 4°C to 40°C in steps of 0.5°C
• Long press (5 s) = if on standby the thermostat is switched off; if switched OFF
the thermostat is switched on
• bt = thermostat in Bluetooth configuration
• off = thermostat off; on = thermostat on
• °C = degrees Celsius; °F = degrees Fahrenheit
A
• animation from the bottom up = Heating
• animation from the top down = Air conditioning
• Rst = thermostat reset
• PIN = PIN entry prompt
• Alr, Con, Cld, etc. = alarms
• Short press = degrees Celsius/Fahrenheit selection
B
• Long press (5 s) = the thermostat enters the configuration phase (bt)
• Prolonged press (30 s) within the first 5 min of powering = thermostat reset (Rst)
CONNECTION WITH CIRCULATION PUMPS, BURNERS, SOLENOID VALVES
*
Generates an alarm notification but does not deactivate the output relay (NO-C)
02912 01 2111
Display
VIALE VICENZA 14
36063 MAROSTICA VI
ITALY
L N IN N L 1 NO C
L
*
Contact for alarm signalling
N.B.: L and 1 terminals not for use
VIA
36
ITA
N IN N L 1 NO C
LED indications
• ON green = Cloud correctly connected
• ON red = Cloud not connected
• ON green = WiFi correctly connected
• ON red = WiFi not connected
• ON green = ON thermostat
• OFF = OFF thermostat
• ON white = Active relay
