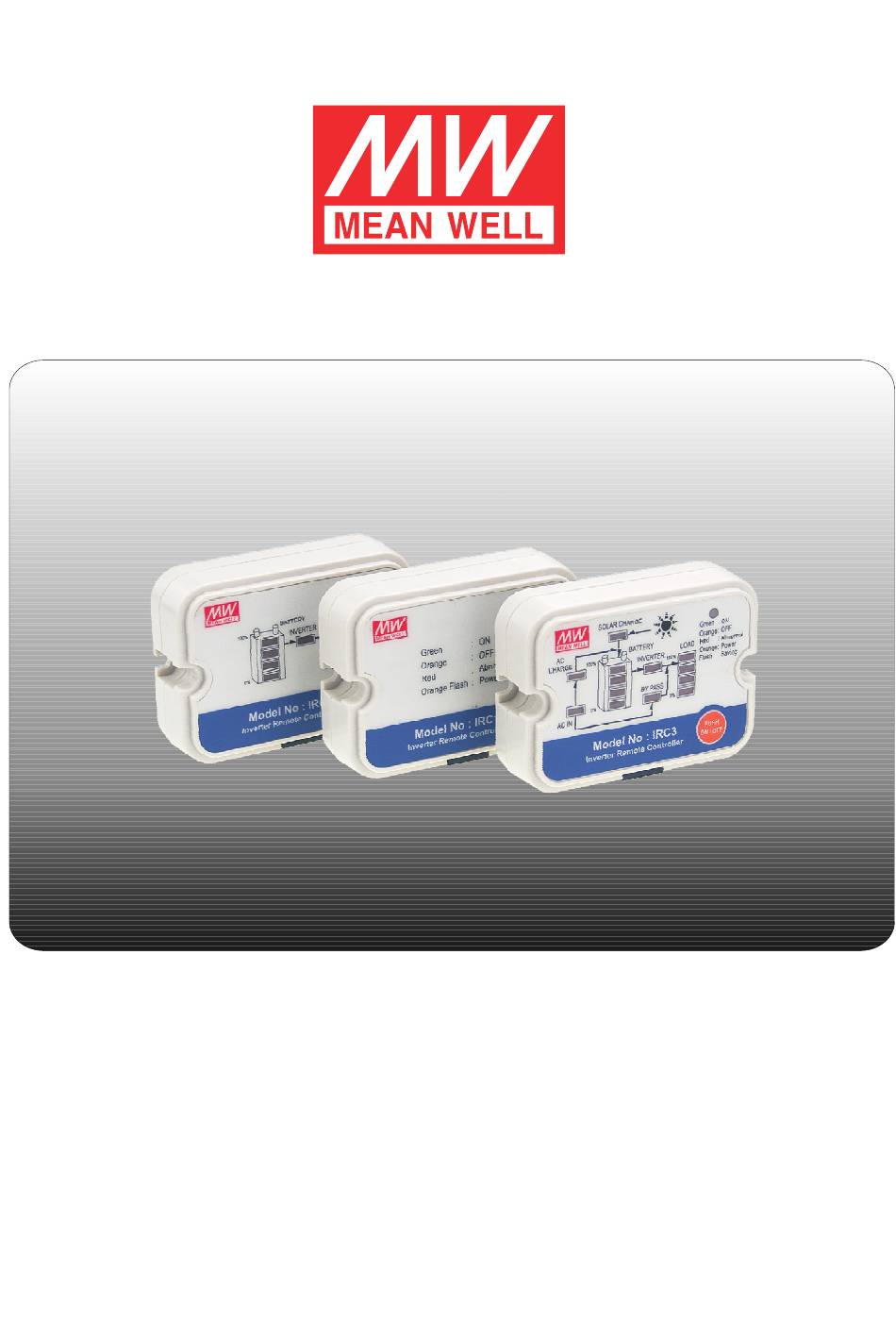

  • Page 1 IRC1 / IRC2 / IRC3 Instruction Manual...
  • Page 2 Remote ON/OFF, abnormal, and power saving mode. IRC2 is a remote control device which can be used with TS-700/1000/1500/3000. Besides the control functions found in IRC1, it also has indications for battery capacity percentage and load percentage. This device is suitable for end users who need more information feedback from the inverter.
  • Page 3 2.2.1 Explanation of abnormal conditions: Load indicator Status description Load indicator Status description LOAD LOAD Output OLP Output OLP (>105%) (>115%) Load indicator Status description Load indicator Status description LOAD LOAD Output OLP (>150%) Load indicator Status description Load indicator Status description LOAD LOAD...
  • Page 4 SOLAR CHARGE SOLAR CHARGE AC charger Solar charger working 3. Operating instructions 3.1 Accessories: a.IRC1/2/3 remote controller. b.RJ-11 ~ RJ-11 10ft cable (standard), 25ft / 50ft cable (optional). 10ft / 25ft / 50ft Phone Jack Phone Jack RJ-11 RJ-11 Do not use ordinary telephone line...

  • Page 5: Cautionary Notes

    3.4 Description of available functions: IRC1/2/3 can be used to remotely control inverter ON/OFF and enable or disable the power saving mode. After attaching the RJ11~RJ11 cable, all the LEDs on the device panel will light up, after waiting for about 5 seconds then the control process can begin.
  • Page 6 6.1 Two years of free repair service is provided when the controller device is operated under normal operating conditions. Please do not change components or modify or repair the unit by yourself or else Mean Well reserves the right to void product warranty.
