Haws H1011.8HO Quick Start Manual

long lasting unit with added peace of mind.
MOUNTING
Heavy-duty 16-gauge galvanized steel mounting frame
with welded-in heavy-duty 10 gauge mounting plate with
pre-punched mounting holes. Further convenience is given
to the chiller with the integral fold-out shelf.
S
S
Fountain incorporates a touchless sensor operated stainless
steel solenoid valve controlled by a transformer on one
side and a
and is
on the other.
TAMPER RESISTANT
30-second obstruction time-out to reduce tampering of
sensor.
which
HO
ADA Touchless/Push Button Dual

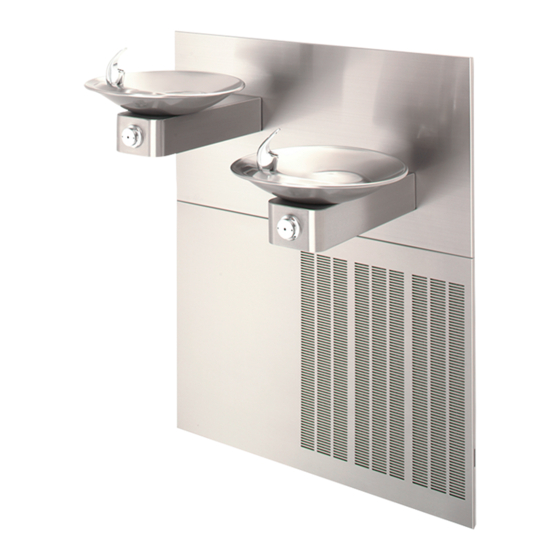

Model H1011.8HO electric
combination touchless/push button drinking fountain shall
include dual 18 gauge Type 304 Stainless Steel satin finish
basins with integral swirl design, 14 gauge Type 304 Stainless
Steel wall brackets, 100% lead-free waterways, touchless
sensor operated solenoid valve with 30-second obstruction
time-out on one side, and push-button operated stainless
steel valve with front-accessible
adjustment on the other, polished chrome-plated brass
vandal-resistant bubbler heads with integral laminar anti-squirt
flow, chrome-plated
strainers, vandal-resistant bottom plates, stainless steel satin
finish back panel and louvered intrusion-proof grill, high and
low fountain mounting levels, and 1-1/4" O.D. (3.2 cm) waste
pipes. The R-134a refrigeration system is hermetically sealed
and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10°
C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C)
ambient. 115 Volts, 60Hz,
amps: 5
REQUIRES MODEL HCR8 AND MTGFR.LG PRICED SEPARATELY.
FOR INDOOR USE ONLY
Haws manufactures drinking fountains, faucets and electric
water coolers to be lead-free by all known definitions
including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372,
California Proposition 65, and the Federal Safe Drinking Water
Act. Product is compliant to California Health and Safety
Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
HO
Hi-Lo ADA wall mounted
cartridge and
brass vandal-resistant
rated watts: 370, full
29 December
flow
waste
load
1
