Haws H1011.8HPSHO-1920HPSHO Quick Start Manual

CONSTRUCTION
Rugged ADA accessible
Stainless Steel swirl design bowls, 14 gauge Type 304
Stainless Steel brackets
vandal-resistant bottom plates provides a long lasting
unit with added peace of mind.
BOTTLE FILLER
Vandal-resistant, 14-gauge Type 304 stainless steel
bottle filler housing with touchless operation and
1 gpm (3.78 L) laminar flow
FOUNTAIN VALVES
Fountain incorporates
stainless steel solenoid
transformer on the bottle filler and on one side of the
fountain, and a push-button activated valve which
offers the only all stainless-steel valve body that is
machined out of solid bar stock and is fully serviceable
through the front of the push button assembly
offering access to the water control cartridge and
integral water supply strainer on the other.
BUBBLER HEADS
Polished chrome-plated brass bubbler heads
integral laminar flow prevents splashing while providing
asuperior flow pattern. The integral 11/16" dia. basin
shank and stainless
vandal resistant strength. Shielded, angled stream
opening provides a steady source of drinking water
at .45 gpm.
MOUNTING
Heavy-duty 16-gauge
frame with welded-in heavy-duty 10 gauge mounting
plate with pre-punched mounting holes. Further
convenience is given to the chiller with the integral
fold-out shelf.
VANDAL-RESISTANT
The bubbler heads, push button, round bowls, drain
strainers and bottom plates are locked in place,
discouraging unwanted vandal tampering.
Mounting Plate: Model 6700, in-wall mounting plate for
model 1920HPS.
Mounting Plate: Model 6700R, on-wall mounting plate
for model 1920HPS.
Water Filter: Model 6426, 12" x 2" (30.5 x 5.1 cm), in-line
lead removal element that reduces lead from incoming
water supply.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
ADA Vandal-Resistant Chilled Motion-Activated/Push Button Fountain w/Bottle Filler
FEATURES & BENEFITS
18 gauge Type
and bottle filler,
touchless sensor operated
valves controlled by
anti-rotational roll pin
galvanized steel mounting
OPTIONS
1455 Kleppe Lane :: Sparks, NV 89431 :: p. 775.359.4712 :: f. 775.359.7424 :: e. info@hawsco.com :: www.hawsco.com :: 20 July, 2022
H1011.8HPSHO-1920HPSHO
model
304
and
a
with
H1011.8HPSHO / MTGFR.LG /
HCR8 / 1920HPSHO / BP32HPS
add
Order these

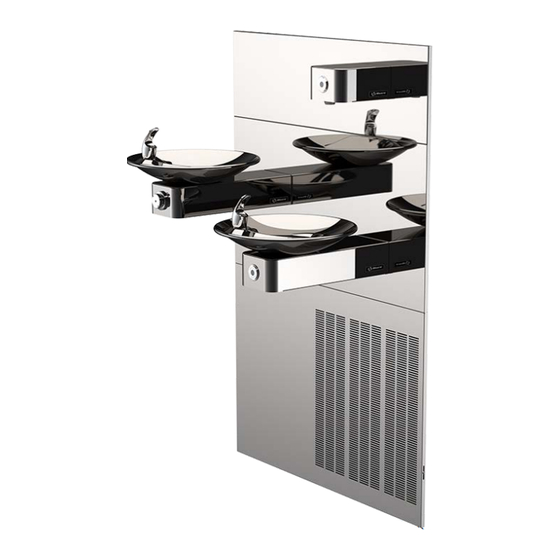

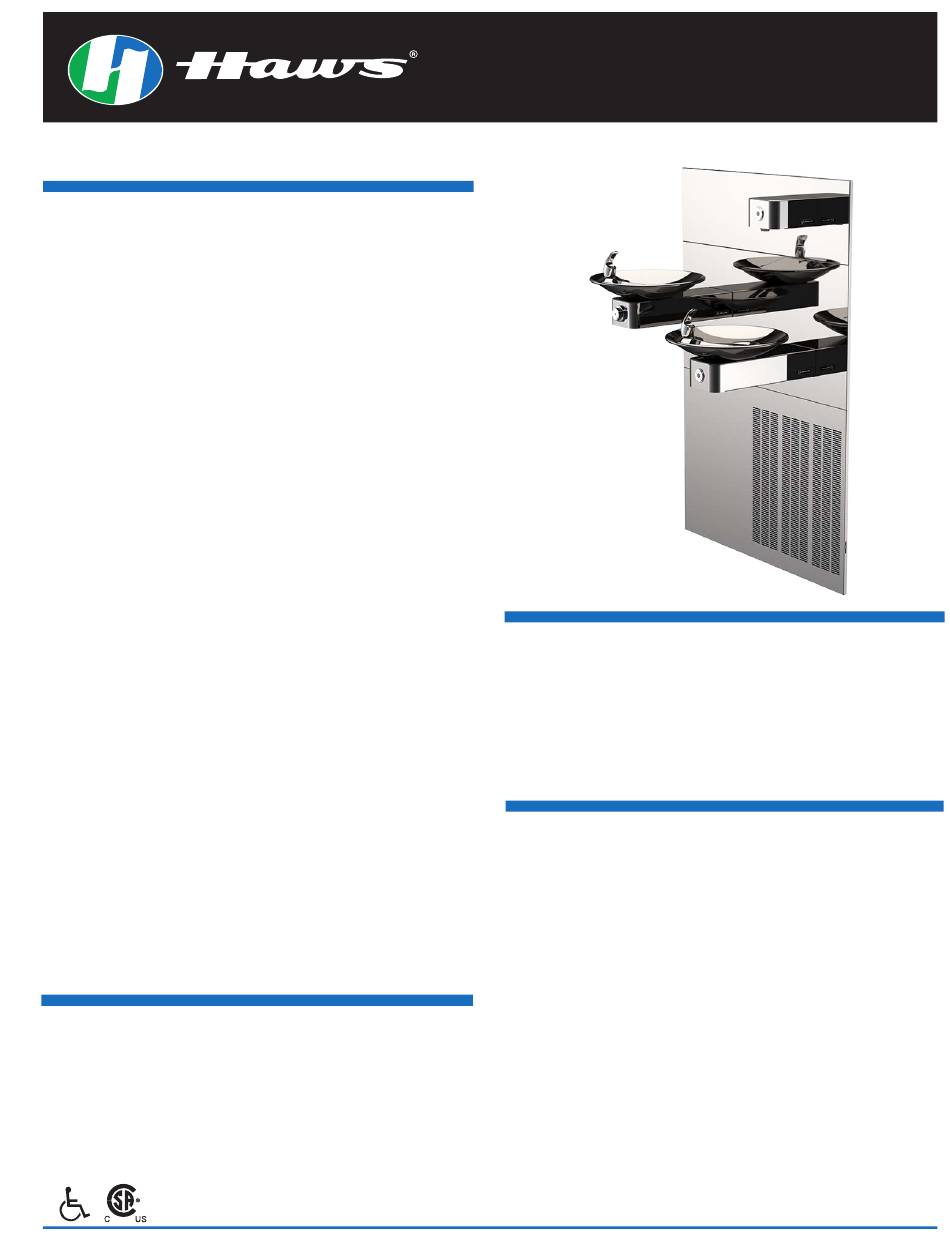

H1011.8HPSHO-1920HPSHO fountain with stainless steel
back panel and grille, bottle filler with stainless steel back
plate, and remote chiller shown above.
FOR INDOOR USE ONLY
Model H1011.8HPSHO-1920HPSHO vandal-resistant wall-mounted
ADA combination motion activated/push button water cooler
and bottle filler shall include dual 18-gauge Type 304 polished
Stainless Steel basins with integral swirl design, 14 gauge Type 304
polished Stainless Steel wall brackets and bottle filler bracket,
100% lead-free waterways, touchless sensor operated solenoid
valves with 30-second obstruction time-out on the bottle filler and
on one side of the fountain, and push-button operated stainless-
steel valve with front-accessible cartridge and flow adjustment on
the other, polished chrome-plated brass vandal resistant bubbler
heads with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar
flow bottle filler, chrome-plated brass vandal-resistant waste
strainers, vandal-resistant bottom plates, stainless steel satin finish
back panels and louvered intrusion-proof grill, high and low
fountain mounting levels, and 1-1/4" O.D. (3.2 cm) waste pipes.
The R-134a refrigeration system is hermetically sealed and delivers
a minimum of 8 gph (30.3 L) of water at 50° F (10° C), 115 Volts,
60Hz, rated watts: 370, full load amps: 5. Haws electric water
coolers comply with ARI Standard 1010 and ANSI A117.1, and are
listed by Underwriter Laboratories to U.S. and Canadian
standards. Manufactured to be lead-free by all known definitions
including NSF/ ANSI/CAN 61-Section 9, NSF/ANSI/ CAN 372,
California Proposition 65, and the Federal Safe Drinking Water Act.
Product is compliant to California Health and Safety Code 116875
(AB 1953-2006), and NSF/ ANSI/CAN 61: Q ≤ 1.
