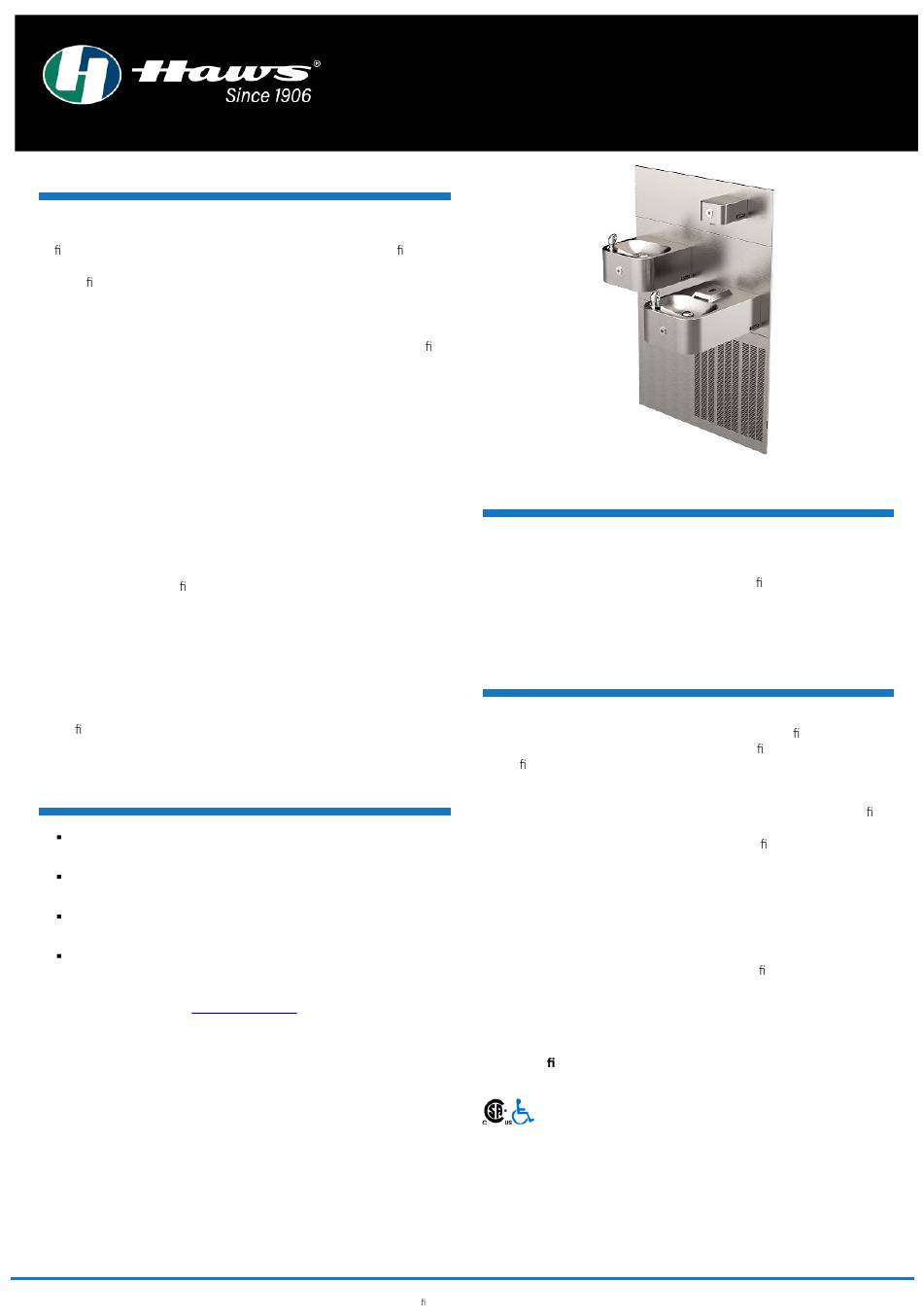

Haws H1119.8HO2 Quick Start Manual

CONSTRUCTION
Rugged ADA accessible 18-gauge Type 304 Stainless Steel with satin
nish bowls, 14 gauge Type 304 Stainless Steel bottle
resists stains and corrosion, soft rounded corners, stainless steel
satin- nish back panels, vandal resistant bottom plate, and 1-1/4"
integral trap.
BOTTLE FILLER
Vandal-resistant, 14-gauge Type 304 stainless steel bottle
housing with touchless operation and 1 gpm (3.78L) laminar flow.
VANDAL RESISTANT
The bubbler heads, sensors, drain strainers and bottom plates are
locked in place, discouraging unwanted vandal tampering, and 30-
second obstruction time-out to reduce tampering of sensors.
BUBBLER HEADS
Polished chrome-plated brass bubbler heads with integral 11/16" dia.
basin shank and stainless anti-rotation roll pin for vandal resistance
strength. Shielded, angled stream opening provides a steady, sanitary
source of drinking water at .45 gpm.
FOUNTAIN VALVES
Fountain and bottle ller incorporates touchless sensor operated
stainless steel solenoid valves controlled by a transformer for hands
free operation. A pressure regulator is used to adjust the bubbler flow
according to incoming water pressures.
MOUNTING
Heavy-duty 16 gauge galvanized steel mounting frame with welded-in
heavy-duty 10 gauge mounting plate with pre-punched mounting
holes provides the sturdy hidden support needed for the Hi-Lo
con guration of this unit. Further convenience is given to the chiller
with the integral fold-out shelf.
Mounting Plate: Model 6700, in-wall mounting plate for model
1920.
Mounting Plate: Model 6700R, on-wall mounting plate for model
1920.
Water Filter: Model 6426, 10" x 2" (25.4 x 5.1 cm), in-line lead
removal element that reduces lead from incoming water supply.
Custom Logo Panel: Model 6475, Hydration By Haws® logo panel
with customization options.
For more information, visit www.hawsco.com
DISCLAIMER: Continued product improvements make speci cations subject to change without notice. Check www.hawsco.com for the latest product information and updates.

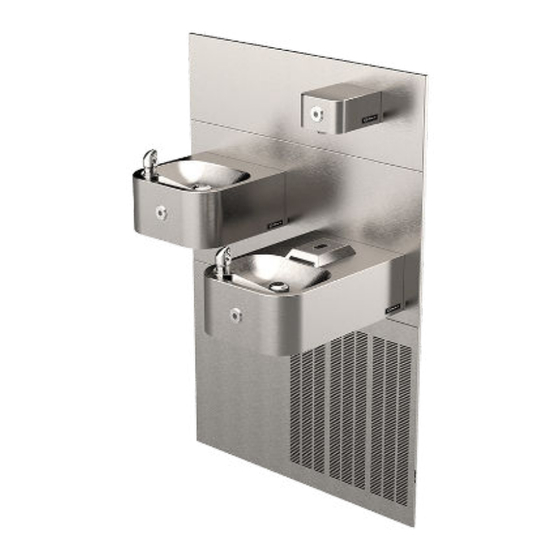

Chilled Vandal-Resistant ADA Motion-Activated Fountain and Bottle Filler
FEATURES & BENEFITS
ller that
OPTIONS
or call (888) 640-4297.
1455 Kleppe Lane :: Sparks, NV 89431 :: p. 775.359.4712 :: f. 775.359.7424 :: e. info@hawsco.com :: www.hawsco.com :: 07 Feb, 2024
H1119.8HO2
model
ller
H1119.8HO2 / MTGFR.LG / HCR8 / 6469 / 1920HO / BP32
Order these items to make up the Model H1119.8HO2-1920HO fountain
with stainless steel back panel and grille, bottle ller with stainless steel
back plate, and remote chiller shown above.
FOR INDOOR USE ONLY
Model H1119.8HO2-1920HO
combination motion-activated water cooler and bottle ller shall include
dual 18-gauge Type 304 Stainless Steel satin- nish basins, 14 gauge
bottle ller bracket, touchless sensor operated stainless steel solenoid
valves with 30-second obstruction time-out controlled by a transformer
provide 100% leadfree waterways, polished chrome-plated brass
vandal-resistant bubbler heads, 1 gpm (3.78L) laminar flow bottle ller,
polished chrome-plated vandal-resistant waste strainers, vandal-
resistant bottom plates, stainless steel satin- nish back panel and
louvered intrusion-proof grill, high and low fountain mounting levels, and
1-1/4" NPT traps. The R-134a refrigeration system is hermetically
sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10°
C) cooled from 80° F (26.7° C) inlet water at 90 F (32.2 C) ambient. 115
Volts, 60Hz, rated watts: 370, full load amps: 5.Haws electric water
coolers comply with ARI Standard 1010 and ANSI A117.1, and are listed
by Underwriter Laboratories
Manufactured to be lead-free by all known de nitions including NSF/
ANSI/CAN 61-Section 9, NSF/ANSI/ CAN 372, California Proposition 65,
and the Federal Safe Drinking Water Act. Product is compliant to
California Health and Safety Code 116875 (AB 1953-2006), and
116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
The botte ller requires a mounting plate; either the Haws model
6700 in-wall or the 6700R on-wall support plate.
REQUIRED MODELS
SPECIFICATIONS
vandal-resistant wall-mounted
to U.S. and Canadian standards.
ADA
