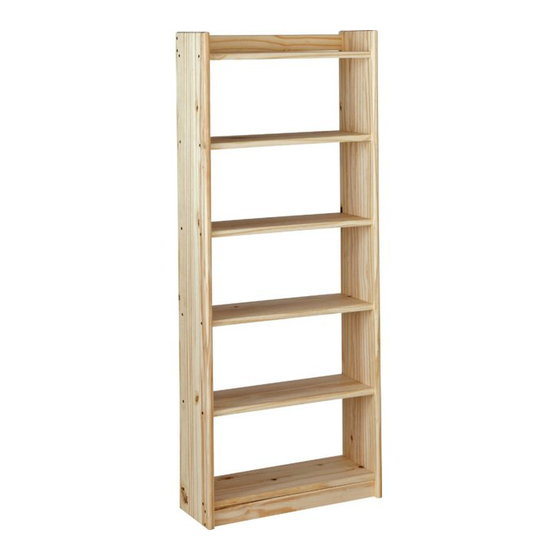

Solid Pine 6 Shelf Unit
Assembly Instructions
Dimensions
Width - 50cm
Depth - 19cm
Height - 123,6cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline 03456 400 800
- Please keep for future reference
906/3983
Issue 2 - 02/07/2018
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 906/3983
Summary of Contents for Argos 906/3983
- Page 1 Solid Pine 6 Shelf Unit Assembly Instructions - Please keep for future reference 906/3983 Dimensions Width - 50cm Depth - 19cm Height - 123,6cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline 03456 400 800...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product, this could cause recommend the use pages 2 and 3.
- Page 3 If you have damaged os missing components, call the Customer Helpline: 03456 400 800. Please check you have all the panels listed below 2 Shelf x 6 3 Top rail (46,8 x 17,8cm) (46,8 x 4,5cm) 4 Bottom rail (46,8 x 4,5cm) 1 Side Panel x 2 (123,6 x 19cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Wall plug 6mm x 1 40mm Screw x 33 16mm Screw x 1 Metal bracket x 2...
- Page 5 Assembly Instructions Step 1 Fix shelves 2 , top rail 3 bottom rail 4 on side panel 1 using screws A Curved edge Curved edge Curved edge Step 2 Fix other side panel 1 on shelves 2 , top rail 3 bottom rail 4 , using screws A .
- Page 6 Assembly Instructions - Wall plug supplied for masonry wall only. - Wall plug and fixing used must be correct for wall type. - If any doubt seek professional advice. Wall Fixing Fix metal bracket E using screw C to the central superior side of the furniture.
-
Page 7: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used If plastic wall plugs are supplied with your are suitable for supporting your unit.
