Argos 9011179 Assembly Instructions

Assembly Instructions

Step 1

Assemble the parts in
the following order, from
8
the bottom up:
Large hex bolt
A
F
through 1 x washer ,
B
through base weight ,
1
through base ,
2
7
through 1 x washer ,
B
through umbrella cup ,
3
screwed into bottom
pole .
4
Double ended bolt
C
(bottom end), through
1 x washer , through
B
1 x cup washer , then 6
D
screwed into top of
bottom pole .
4
Double ended bolt
(top end), through
C
umbrella rack ,
5
through 1 x washer , 5
B
through 1 x cup washer
, screwed into bottom
D
of middle pole .
6
1 x connector
E
screwed into top of
middle pole .
6
Top pole screwed
7
onto top of connector . 4
E

Step 2

Connect each hook
8
to top of top pole
7
3
using 2 x small hex bolt
. Tighten with the allen
F
key.
2
Insert large end stop
G
into top of pole and 1 x
small end stop into
H
1
bottom end of hooks .
8
Push 1 x knob onto
9
top of each hook .
8
Assembly complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 0121 753 7720
G
9
H
E
D
B
C
B
D
B
B
A
LP 307.95.501

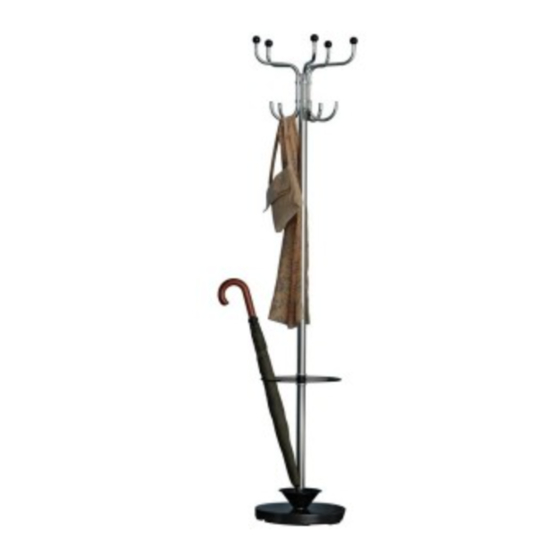

Coat & Umbrella Stand
Assembly Instructions
- please keep for future reference
Dimensions
Width - 33cm
Depth - 33cm
Height - 179.5cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0121 753 7720
Issue 2 - 04/01/12
