Device Management

This section describes how to connect to and manage the device.
3.1

Connecting to the Device

The following describes the various methods for accessing the RUGGEDCOM
RS900GPF console and Web interfaces on the device. For more detailed instructions,
refer to the RUGGEDCOM RS900GPF User Guide for the RUGGEDCOM RS900GPF.
Serial Console Port
Connect a PC or terminal directly to the serial console port to access the boot-time
control and RUGGEDCOM ROS console interface.
IMPORTANT
The serial console port is intended to be used only as a temporary connection during
initial configuration or troubleshooting.
The serial console port implements RS-232 DCE (Data Communication Equipment) on
a DB9 connector. Use the following settings to connect to the port:
Speed
Data Bits
Stop Bit
Parity
Flow Control
Terminal ID

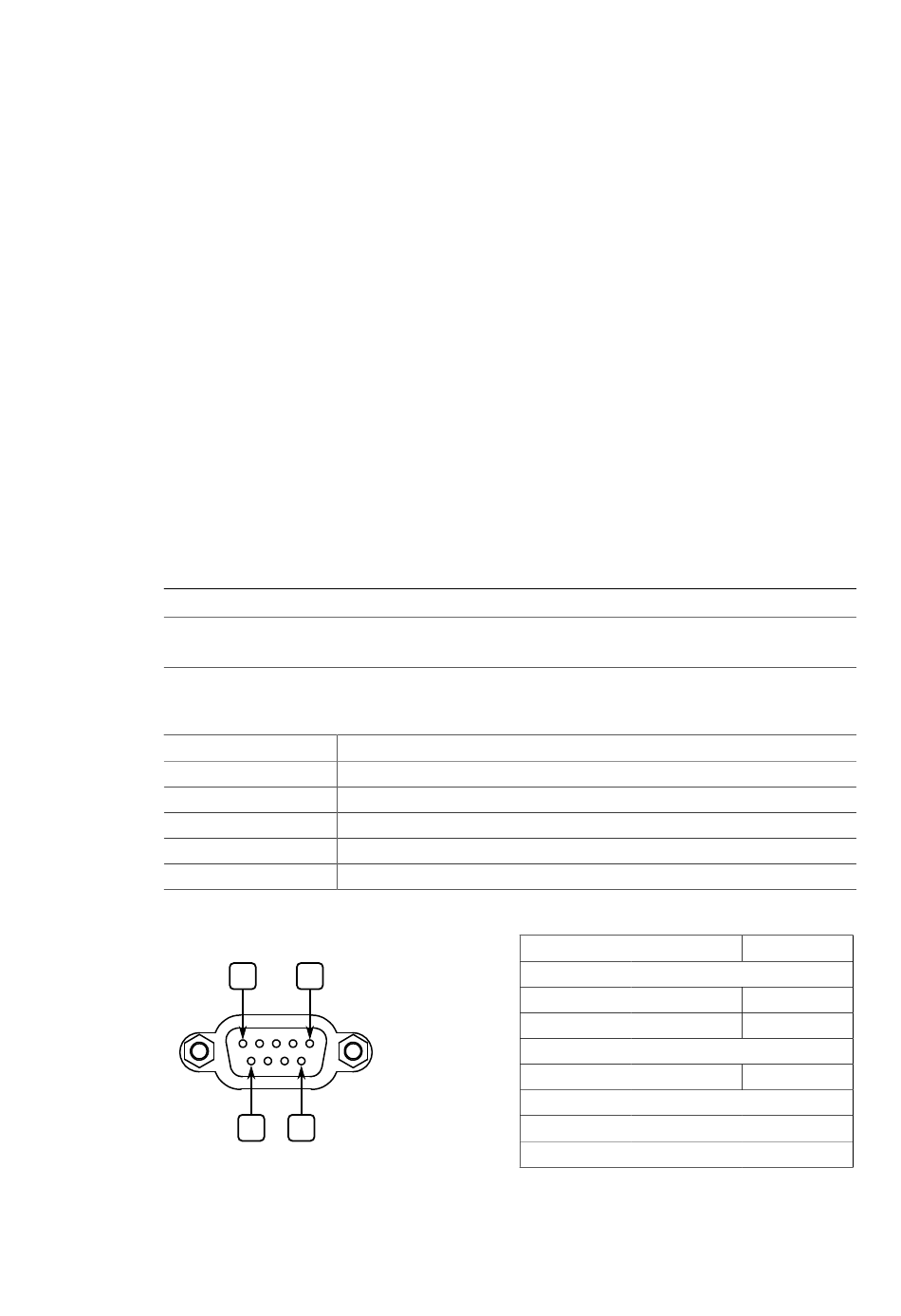

The following is the pin-out for the port:
Figure 3.1
RUGGEDCOM RS900GPF
Installation Manual, 01/2021, C79000-G8976-1353-05
57600 baud
8
1
None
Off
VT100
5 1
9 6
Serial DB9 Console Port
Pin Name
a
1 Reserved (Do Not Connect)
2 TX
3 RX
a
4 Reserved (Do Not Connect)
5 GND
a
6 Reserved (Do Not Connect)
b
7 Reserved (Do Not Connect)
b
8 Reserved (Do Not Connect)
3
Description
Transmit Data
Receive Data
Signal Ground
