Introduction
1.2 Description
Power Supply
•
•
•
1.2

Description

The RUGGEDCOM RS900GPF features various ports, controls and indicator LEDs on
the front panel for connecting, configuring and troubleshooting the device.
1
2
1
2
3
4
5
6
7

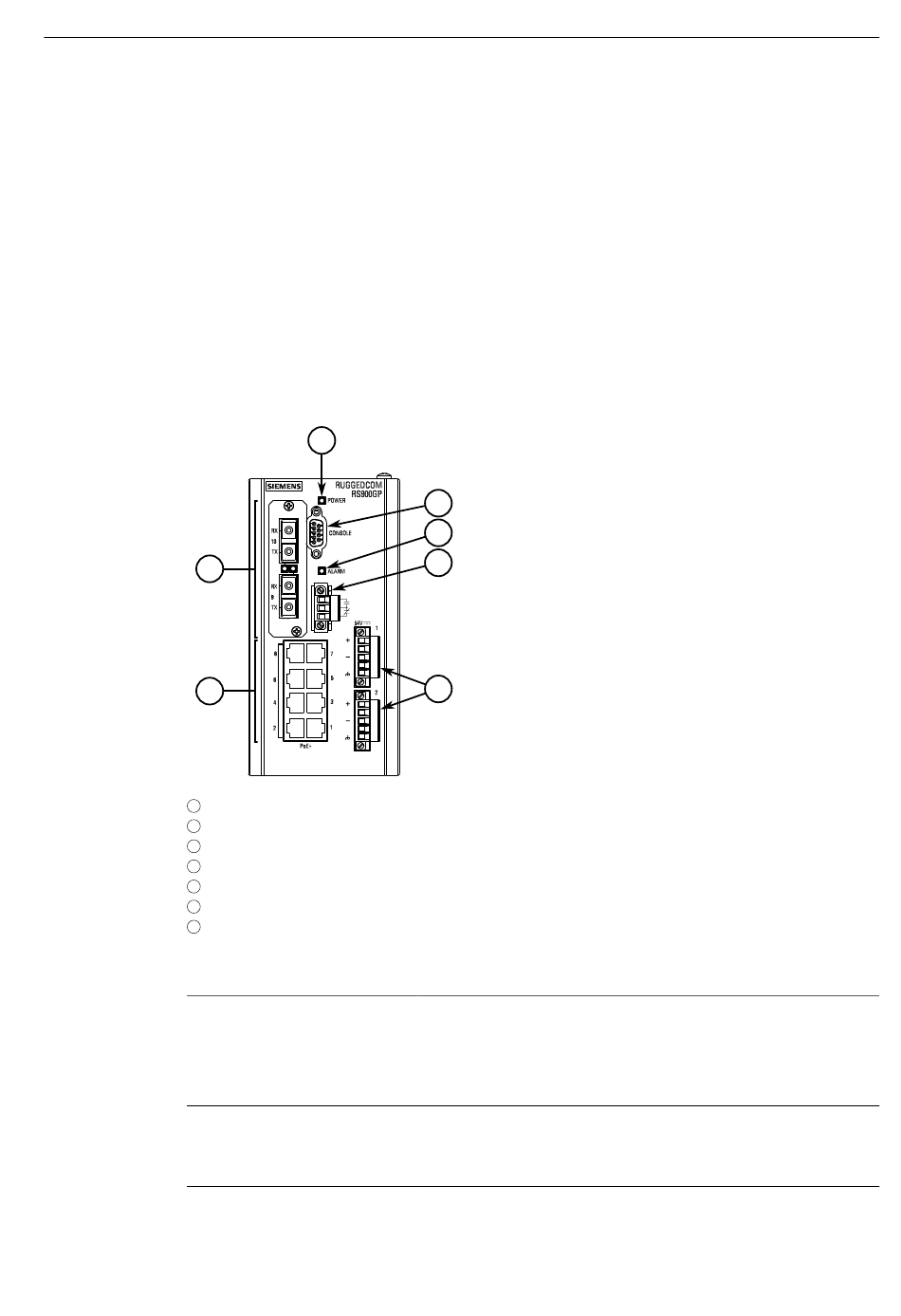

Figure 1.1
Communication Ports
RS-232 Console Port
POWER LED
2
Single 54 VDC, 255 W (or greater) external power supply can deliver 30 W x 8
port per IEEE 802.3at
Second power supply input for a redundant 54 V power supply
Complies with IEEE 802.3af, 15 W x 8 output when using 48 VDC power supplies
3
Fiber Optic or SFP (Small Form-Factor Pluggable) Ethernet Ports
Copper PoE Ethernet Ports
POWER LED
RS-232 Console Port (DB9)
ALARM LED
Failsafe Alarm Relay
Redundant Power Supply Terminal Blocks
RUGGEDCOM RS900GPF
4
5
6
7
Receive and transmit network traffic, as well as provide remote Web
access to the RUGGEDCOM RS900GPF operating system. For more
information, refer to:
• "Connecting to the Device (Page 15)"
• "Communication Ports (Page 17)"
The serial console port is for interfacing directly with the device
and accessing initial management functions. For information
about connecting to the device via the serial console port, refer to
"Connecting to the Device (Page
Illuminates when power is being supplied to the device.
15)".
RUGGEDCOM RS900GPF
