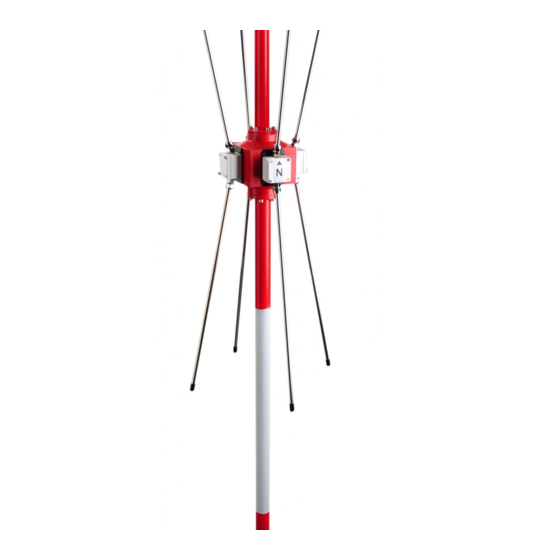

Summary of Contents for Rhotheta RT-1000

  • Page 1 User Manual SNMP Module...
  • Page 2 SNMP Module Edited by: RHOTHETA Elektronik GmbH Dr.-Ingeborg-Haeckel-Str. 2 82418 Murnau Germany Tel.: +49 8841 4879 - 0 Fax: +49 8841 4879 - 15 Internet: www.rhotheta.de E-Mail: email@rhotheta.de  Copyright RHOTHETA Elektronik GmbH All rights reserved Issue: [2018/11/29] [Rev 1.00]...

  • Page 3: Table Of Contents

    Legal Information ......................26 EU Declaration of Conformity ....................... 26 Disposal within the European Union..................... 26 Disposal outside the European Union ....................26 Appendix ........................27 Test Example ............................27 Notes ..........................30 RHOTHETA Page 3 of 30 User Manual...

  • Page 4: Legend Of Signal Words

    2 Safety 2.1 General Safety Information RHOTHETA Elektronik GmbH is constantly trying to keep the safety standard of the products up to date and to offer the customers the highest possible level of safety. RHOTHETA products are designed and tested in accordance with the valid safety regulations. The compliance with these standards is continuously monitored by our quality assurance system.

  • Page 5: Basic Safety Instructions

    Ensure that the connections with information technology equipment, e.g. industrial computers, comply with the IEC 60950-1/EN 60950-1 standard that applies in each case. • The product may only be opened by authorized personnel. The power connector must always be disconnected before opening. RHOTHETA Page 5 of 30 User Manual...

  • Page 6: General Description

    (s. Figure 2, No. 1) The EMD is connected to the RT-1000 direction finder and receives the DF error status over the RS232 data protocol. If an error occurs, the error-information is provided from the EMD to the MOXA ioLogik E2210, which reports the error to the connected controller workstation (PC) as an SNMP trap over LAN.

  • Page 7: Installation

    Always disconnect the power plug before any modification of the wiring. Besides the SNMP Module itself the packing list of SNMP Module for “RT-1000 C” or “RT-1000 A” consists of: Serial cable customized and connected to the SNMP (max. cable length: 3 m) COM plug distributor cable (s.
  • Page 8 SNMP Module 3. Connect MOXA ioLogik 2210 module to the network via LAN cable. Establish power connection using the 230 V cable. Figure 4: Wiring diagram for RT-1000 C (one channel system) or RT-1000 A RHOTHETA Page 8 of 30...

  • Page 9: Hardware Connection For Multichannel Mode

    SNMP Module 4.2 Hardware Connection for Multichannel Mode SNMP Module for RT-1000 Multichannel system is completely connected within the RT-1000 Multichannel rack before the delivery. This also applies to the two channel systems in which both channels are arranged next to one another, except that the SNMP module is mounted on a rail.

  • Page 10: Interfaces

    OUT ERROR 5 OUT ERROR 6 OUT ERROR 7 OUT ERROR 8 OUT ERROR 1 OUT ERROR 2 OUT ERROR 3 OUT ERROR 4 For the wiring diagram please refer to chapter 4.1. RHOTHETA Page 10 of 30 User Manual...

  • Page 11: Software Installation And Configuration

    1. The default IP address is 192.168.127.254 and should be changed according to your network specification. Connect to MOXA E2210 by entering the IP address into the internet browser. Figure 7: Web screen of MOXA E2210 RHOTHETA Page 11 of 30 User Manual...
  • Page 12 Please configure the Ethernet parameters (IP Address, Subnet Mask, Gateway) under “Ethernet Configuration”. Figure 8: Changing the IP address under “Ethernet Configurations” Please configure the DNS server under “General Settings”. Figure 9: General Settings page RHOTHETA Page 12 of 30 User Manual...
  • Page 13 (ioAdminSetup.msi). Follow the installation steps: • Select the installation folder and click “Next”. Figure 10: Installation ioAdmin, step 1 • Confirm the installation. Figure 11: Installation ioAdmin, step 2 RHOTHETA Page 13 of 30 User Manual...
  • Page 14 5. After the installation open the “ioAdmin” by double clicking on the desktop symbol and search the network for the MOXA E2210 device. Figure 13: Searching for the MOXA E2210 device 6. Click “Start Search”. The following window will appear automatically (s Figure 14). RHOTHETA Page 14 of 30 User Manual...
  • Page 15 E2210 configuration options. For the first access no administrator password is needed (leave the password field blank). After the first access you can configure an administrator password for further accesses. Figure 15: Server Settings page RHOTHETA Page 15 of 30 User Manual...
  • Page 16 Restart is required. Please accept the restart in the pop-up window. Caution Configuration changes lead to the restart of the module. The device will be unreachable for about 12 seconds. This can lead to an error message in the system. RHOTHETA Page 16 of 30 User Manual...
  • Page 17 Error 8 (Data Transfer or Power Supply of the Receiver) Error 9 (Receiver Control) Timeout Error (Data Transfer between SNMP Module and RT-1000) EMD Error (EMD Failure) Table 1: Mandatory Configuration of the SNMP RHOTHETA Page 17 of 30 User Manual...

  • Page 18: I/O Configuration Example

    SNMP Module For RHOTHETA internal configuration files as configuration examples (One Channel Mode configuration file or Multichannel Mode configuration file), if needed, please contact RHOTHETA Elektronik GmbH. The test example (s. Appendix, 8.1) explains how to upload the existing configuration file into the MOXA E2210 module.
  • Page 19 Figure 21: SNMP Trap Settings 8. Select „Remote Action“ in the drop-down menu of the second <Empty> button of the “THEN”“ field to set the repetition rate of the SNMP Trap if desired. RHOTHETA Page 19 of 30 User Manual...
  • Page 20 10. Enter the desktop IP of the connected workstations, which should receive the SNMP Traps, either for each I/O separately (s. Figure 23) or over SNMP Trap Server button above the “Logic Configuration” field (s Figure 24). Figure 23: Desktop IP Settings RHOTHETA Page 20 of 30 User Manual...
  • Page 21 11. After all needed I/O settings are completed, enter the “Logic Name” for this configuration (e.g. “One Channel Mode” for 11 error states (11 I/Os)). For RHOTHETA internal configuration files as configuration examples (One Channel Mode configuration file or Multichannel Mode configuration file), if needed, please contact RHOTHETA Elektronik GmbH. RHOTHETA Page 21 of 30...
  • Page 22 14. You can save the settings script (configuration file) to your PC and upload it to your MOXA E2210 module. Therefore click with the right mouse key on the “E2210” symbol. Then select the download folder and save the script file. RHOTHETA Page 22 of 30 User Manual...
  • Page 23 SNMP Module Figure 29: Doing backup of the module with scripts For a test example with the configured logic refer to the chapter 8.1. RHOTHETA Page 23 of 30 User Manual...

  • Page 24: Operation

    SNMP Module 5 Operation The SNMP Module is developed for the operation with all RHOTHETA RT-1000 direction finder systems: One channel system (RT-1000 A or RT-1000 C with one Controller Unit) Multichannel system (RT-1000 Multichannel or RT-1000 C with two Controller Units) The operation modes can be switched via jumper on the EMD module (s.

  • Page 25: Technical Characteristics

    Weight < 1,5 kg (Mounting in the Box) Environmental Characteristics Parameter Data Operating Temperature -20°C to 60°C Storage Temperature -40°C to 70°C Humidity 10% RH to 90% RH, noncondensing Maximum Altitude 2000 m RHOTHETA Page 25 of 30 User Manual...

  • Page 26: Legal Information

    7.1 EU Declaration of Conformity The SNMP Module complies to EMC standards for industrial environments. Hereby, RHOTHETA Elektronik GmbH declares that the product SNMP Module is in compliance with the essential requirements to be put on the market, and with other relevant provisions: •...

  • Page 27: Appendix

    SNMP configuration software (MOXA ioAdmin) Precondition for the test: RT-1000 System is installed and working. SNMP is appropriately configured and connected as it is described in previous chapters. Ensure that the correct IP address of the PC used for the test is adjusted in the “Click&Go Logic” of the MOXA E2210 Module (refer to chapter 4.4.2).
  • Page 28  In the menu “Project” select the option “Add Device”.  Enter the IP address of the MOXA E2210 Module into the “IP address” line and click on “Add”. Figure 33: Adding the MOXA E2210 module for monitoring RHOTHETA Page 28 of 30 User Manual...
  • Page 29 (e.g. log-in-events or reachability of MOXA E2210 module). After the connection between SNMP Module and “MX View” as well as the connection between RT-1000 System and “DF Commander” (remote control) are established, the actual test can begin.

  • Page 30: Notes

    SNMP Module 9 Notes RHOTHETA Page 30 of 30 User Manual...
