Power Brush - Gtech MULTI ATF Series Operating Manual

Power brush

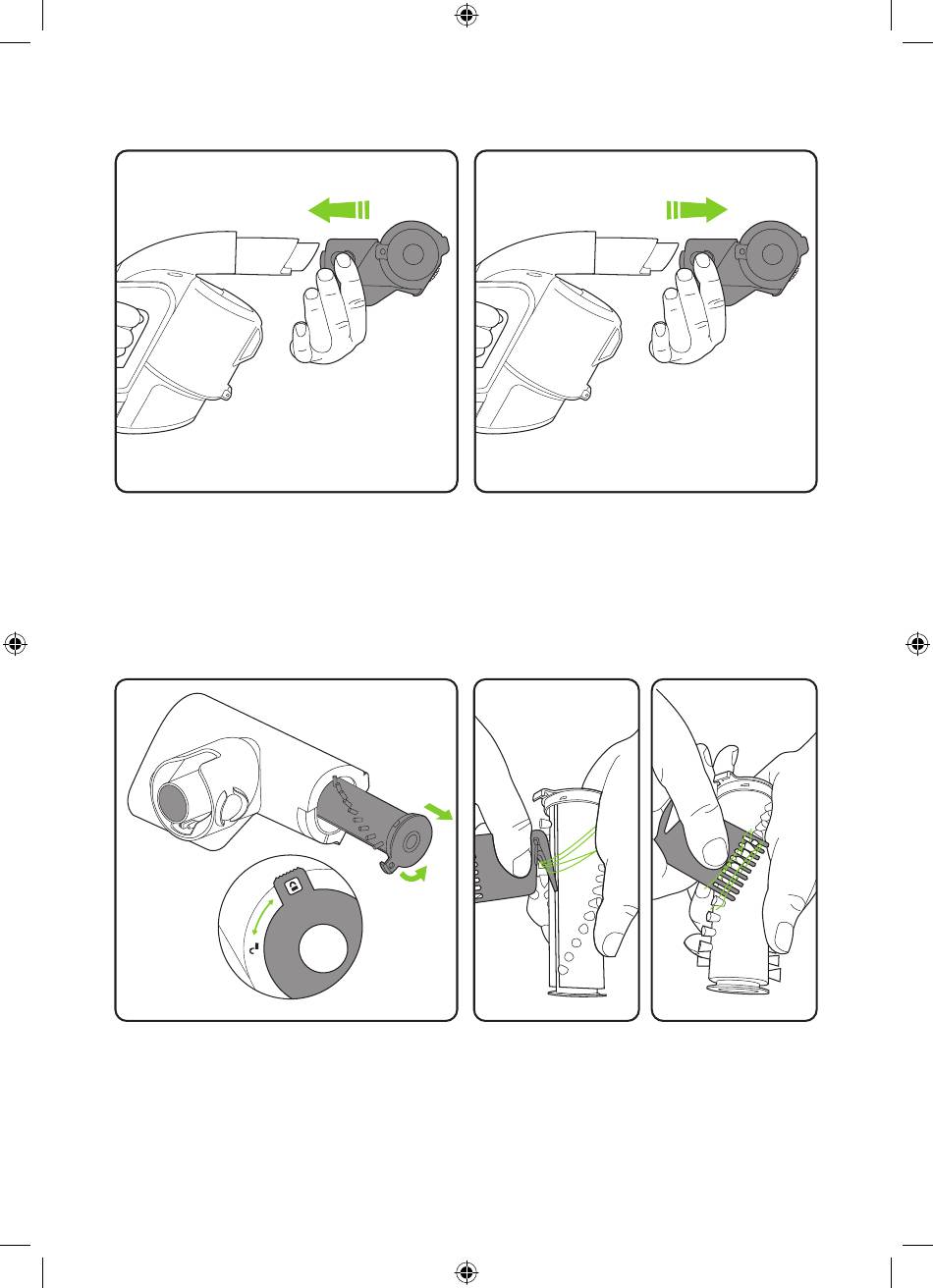

Make sure the terminals on the Power Brush
and Active nozzle are correctly lined up and
gently push the Power brush onto the Active
nozzle. The battery should be removed when
changing attachments.
To clean the brush bar, first remove the power
brush. Rotate the latch from the lock to the
unlock position and pull out the brush bar.
16
5011_System_UF_manual_aw.indd 16 5011_System_UF_manual_aw.indd 16
Gently pull the Power Brush from the product
to remove. The battery should be removed
when changing attachments.
To remove hair from the brush bar, run the hair
removal tool down the groove to cut the hair,
then pull it out with the comb. Never operate
the power head without the brush bar in.
