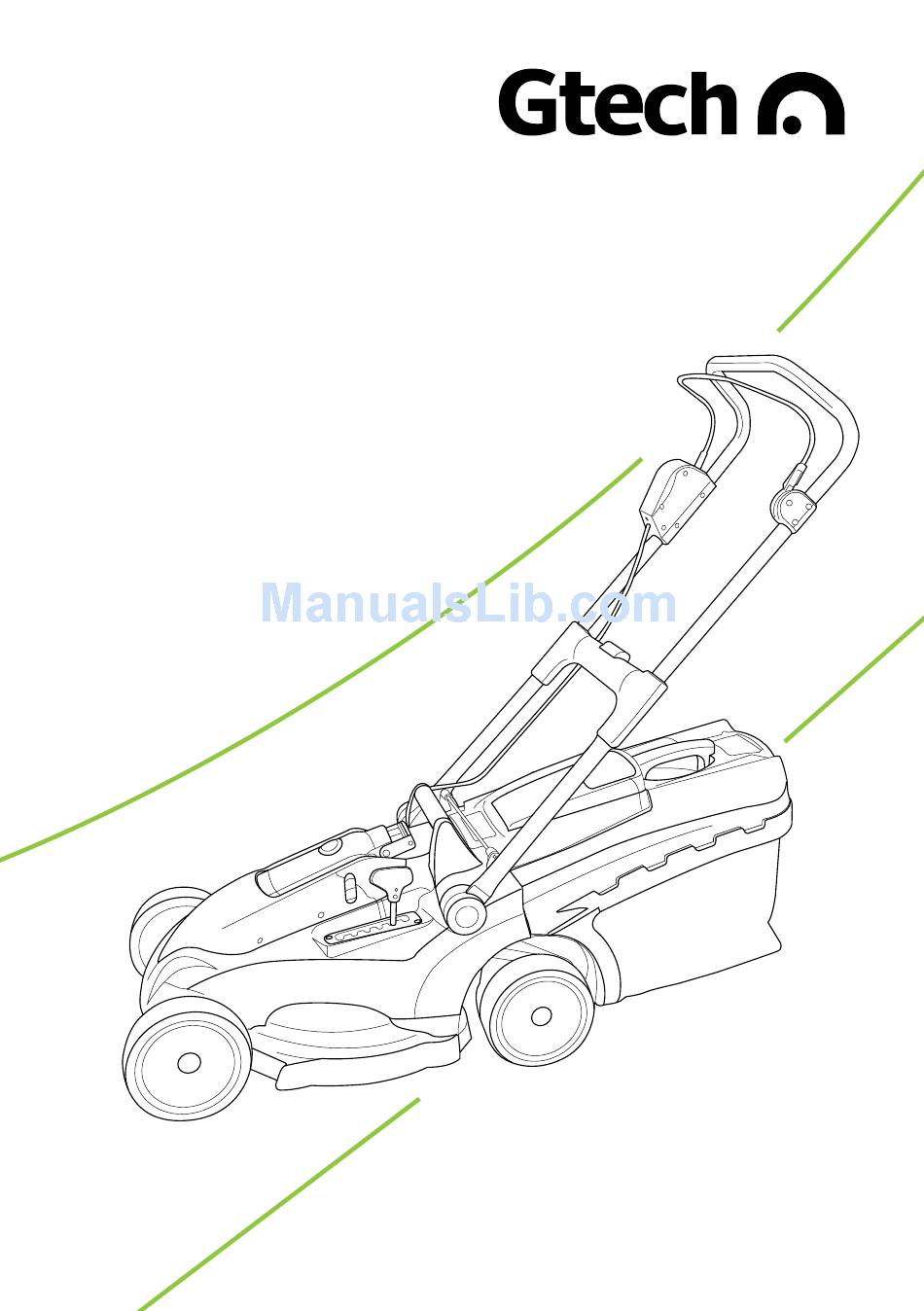

- Page 1 Cordless Lawn Mower Model number: CLM001 OPERATING MANUAL ORIGINAL INSTRUCTIONS 2016...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS: IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. Do not use in rain or leave outdoors whilst raining. WARNING: Basic safety precautions should always be observed when using an electrical appliance to reduce the risk of fire, electrical shock or serious injury. -
Page 3: Electrical Safety
• This appliance is not intended for use by • Never open the charger. In case of persons (including children) with reduced defect, contact Gtech. physical, sensory or mental capabilities • This product contains Li-Ion batteries. or lack of experience or knowledge. -
Page 4: Intended Use
Service: • Leaks from battery cells can occur under extreme conditions. If the liquid • Do not use the mower if the switch gets on your skin wash immediately does not turn it on or off. Any power with soap and water. If the liquid tool that cannot be controlled by the gets into your eyes, flush them switch is dangerous and must be... - Page 5 Warning Label Descriptions Remove activation key before ser- Warning/Caution. vicing and cleaning. Beware of servering toes or hands. Do not put hands or feet near a Dangerous voltage. rotating blade. Keep bystanders at a safe distance Read the instruction manual. (at least 5m).
-

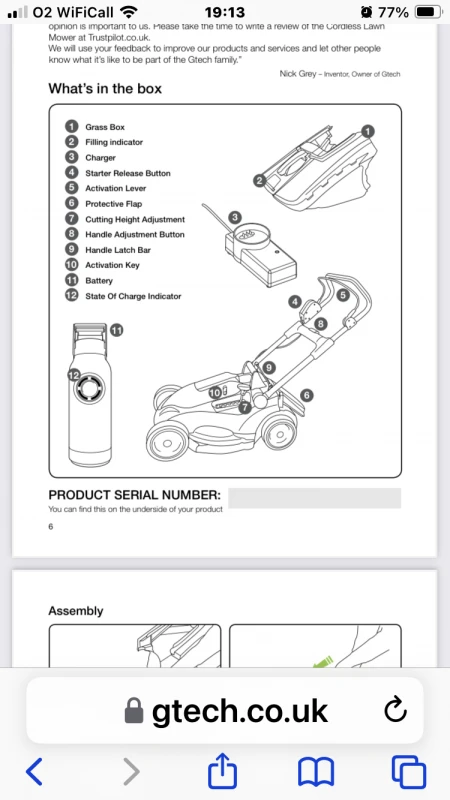

Page 6: What's In The Box
Thank you for choosing a Gtech Cordless Lawn Mower. “I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us. Please take the time to write a review of the Cordless Lawn Mower at Trustpilot.co.uk. - Page 7 Assembly Lift the flap at the rear of the mower. Holding the grass box by the green handle, attach it to the back of the mower. Ensure the front edges of the grass box Swing the handle back into the operating hook over the points at the back of position.
- Page 8 Assembly When in the correct position, the handle Pull the handle upwards until it clicks into will click into place. place. The mower will not start unless the handle is fully extended. Place the battery in the cradle on top of the Push the battery until it clicks into place.
-
Page 9: Adjusting The Cutting Height
Operating the Cordless Lawn Mower To operate the mower, press and hold the When you press the lever to the handle, green saftey button and pull the lever under the mower will start. When you release the the handle. lever, the mower will stop. Adjusting the cutting height For very 30mm... -
Page 10: Removing The Activation Key
Using the Cordless Lawn Mower Push the mower along at a walking pace When the filling indicator flap opens it is when mowing. time to empty the bin. Note: If the bin over- fills, the grass chute will clog and the flap will close again. - Page 11 Removing and emptying the grass box Lift the flap at the rear of the mower and Whilst still lifting the flap, pull the grass box hold onto the green handle attached to the towards you to remove it from the mower. grass box.
-
Page 12: Charging The Battery
Charging the battery To remove the battery push the release Then remove the battery from the cradle by lever in the handle to unlock the battery. the handle. Place the battery onto the charging unit. While charging, the LEDs will progressively Plug in the charger and switch it on. - Page 13 Collapsing the handle for storage To collapse the extended handle, depress Whilst holding the green button down, push the green button on the mid cross-bar. the handle in. Stowing the handle To release the handle, pull back the handle Fold the handle over the body of the latch bar.
-
Page 14: State Of Charge
Carrying the Cordless Lawn Mower Before carrying the mower, make sure the There is a hand-hold under the front of the activation key is removed to avoid starting mower. it accidentally. The easiest way to carry the mower is by the middle carry handle and the front of the mower. - Page 15 • Store in a secure, dry place, out of reach of children. Do not expose to moisture. PLEASE NOTE: If the product needs to be repaired or replaced only use replacement parts supplied by the manufacturer. Spare parts can be purchased from Grey Technology Ltd: tel : 01905 345 891 www.gtech.co.uk...
-
Page 16: Troubleshooting
Battery too hot. Allow to cool. Charger flashing red (rapid) Battery fault. Call Gtech. If this doesn’t solve your problem don’t worry, we will help. Go to www.gtech.co.uk or call 01905 345 891 GTECH CORDLESS LAWN MOWER TECHNICAL SPECIFICATION Voltage Battery capacity... - Page 17 • Repairs or alterations carried out by parties other than Gtech or its authorised agents. • If you are in doubt as to what is covered by your warranty, please call the Gtech Customer Care Helpline on 01905 345 891.
- Page 18 Environmental and Product Recycling symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC) When the product has reached the end of its life please do not dispose of it with general household waste. Consider the environment and take it to a recognised recycling facility. The product contains a Li-Ion battery which should not be disposed of with general household waste.
-
Page 19: Ec Declaration Of Conformity
Grey Technology Ltd 1&2 Cupola Court Spetchley Worcestershire WR5 1RL declare that the product CLM001 Cordless Lawn Mower complies with the essential health and safety requirements of the following directives: 2006/42/EC - Machinery Directive 2014/35/EC - Low Voltage Directive LVD... - Page 20 Grey Technology Limited Cupola Court, Spetchley, Worcestershire WR5 1RL email: support@gtech.co.uk telephone: 01905 345891 www.gtech.co.uk...
Need help?
Do you have a question about the CLM001 and is the answer not in the manual?
Questions and answers
My Gtech cordless lawnmower won't start despite the battery fully charged
If your Gtech CLM001 cordless lawnmower won't start even with a fully charged battery, check the following:
1. Ensure the activation key is inserted.
2. Verify the switch is working properly.
3. Confirm the handle is fully extended.
Any of these issues can prevent the mower from starting.
This answer is automatically generated
battery fully charged no life in mower at all,I am an electrical so if you could tell me the most common faults. Many thanks ,
If the Gtech CLM001 mower shows no signs of life even when the battery is fully charged, the most common faults are:
1. The activation key is not inserted.
2. The switch is not operating correctly.
3. The handle is not fully extended.
This answer is automatically generated
The activation lever item 5 on the picture has broken off both ends under the handle and I need a replacement
To obtain a replacement activation lever for the Gtech CLM001, you must use replacement parts supplied by the manufacturer. Spare parts can be purchased from Grey Technology Ltd.
This answer is automatically generated
