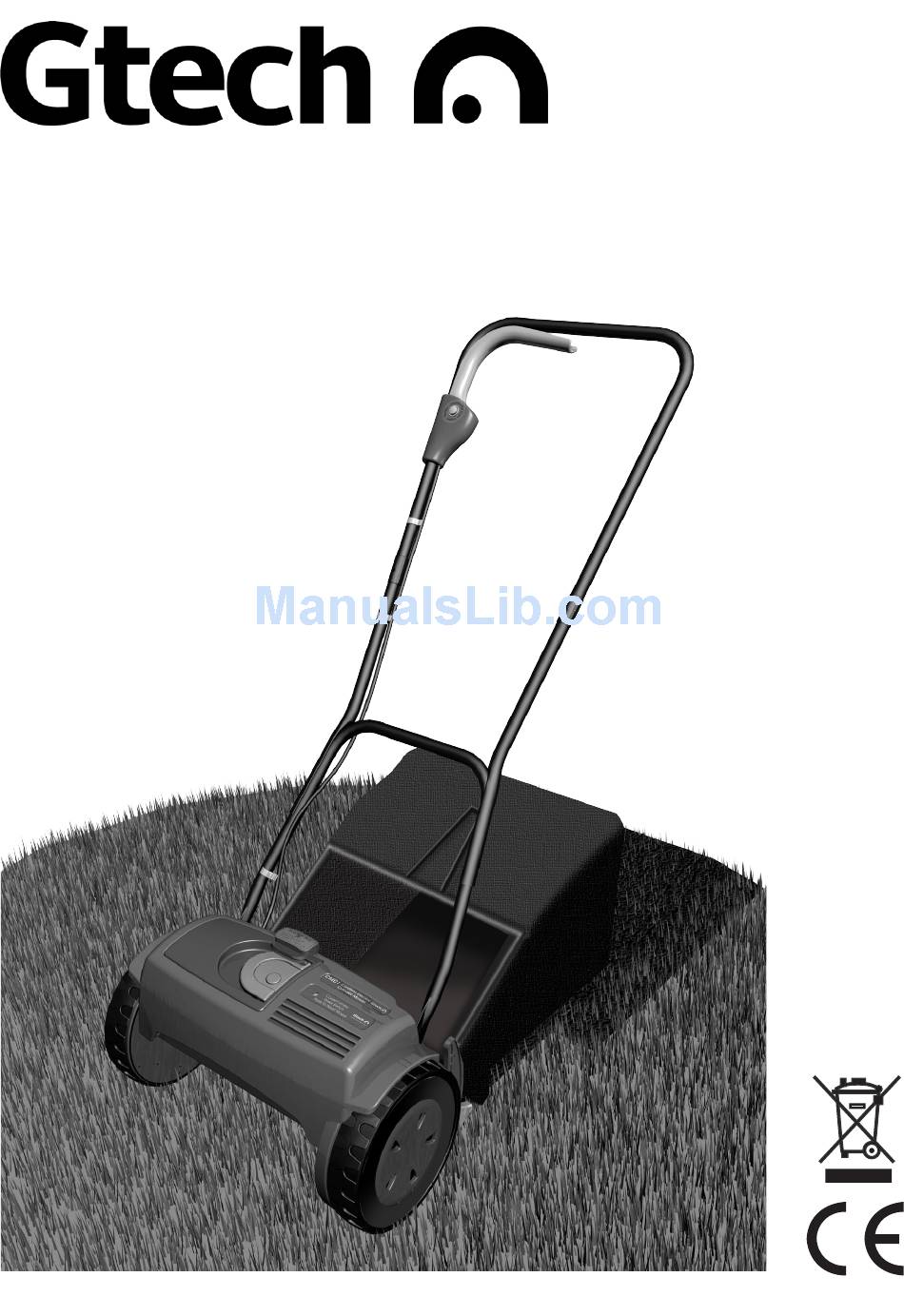

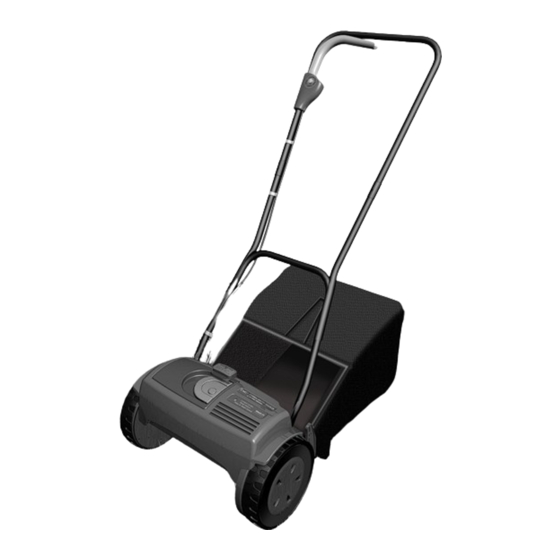

- Page 1 Safety and Instruction Manual for CM01 Cordless Cylinder Mower...
-
Page 3: Important Safeguards
Important Safeguards IMPORTANT: •Always be sure of your footing on slopes, READ ALL INSTRUCTIONS do not over-reach or use on excessively BEFORE USE. steep slopes. RETAIN INSTRUCTIONS FOR FUTURE •Mow across the face of slopes, never up REFERENCE. and down. •Take extreme caution when changing WARNING: direction on slopes. -
Page 4: Personal Safety
should be supplied via a residual current wrench left in a rotating part of the power device (RCD) with a tripping current of not tool may result in personal injury. more than 30mA. •Do not overreach. Keep proper footing •Do not attempt to use the charger with and balance at all times. - Page 5 •Store idle power tools out of the reach Battery use and care: of children and do not allow persons •Do not attempt to use the charger with unfamiliar with the power tool or these any other product nor attempt to charge instructions to operate the power tool.
- Page 6 Beware of flying Keep bystanders General hazard objects and away safety alert. debris Wear eye protection Beware of Sound Power when using this Sharp blades Level 95 dB(A) product. Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk...
- Page 7 Warning : only use the charger provided with the product. Using any other charger may damage the product and the battery. Only use a replacement battery as supplied by manufacturer. Replacement batteries can be purchased from Grey Technology. Tel : 0870 7944001 www.greytechnology.co.uk Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk...
- Page 8 If incorrectly assembled, disconnect and re-assemble in the correct orientation. Locate and assemble the upper handle frame and middle handle frame assembly to the lower handle frame. Use four nuts and bolts to secure in place . Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk...
- Page 9 2 holes in the top of the main grass bag frame. Attach the plastic strips on the grass bag to the front frame by flexing the open the slot in the plastic strip and pushing over the frame Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk...
- Page 10 Lift the grass bin up until the hooks are clear of the bin supports To replace the grass bin locate the hooks into the holes in the bin support and lower the grass bin onto the mower as described above Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk...
- Page 11 The isolator key will automatically detach if the battery handle is lifted IMPORTANT : to prevent accidental starting always remove the isolator key and battery before carrying out any adjustment or maintenance on the product. Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk...
-
Page 12: Cutting Height Adjustment
Tighten the knob to secure the lock piece and bin support in position. Low cut height High cut height for short, dry grass for long, thick, or wet grass Check that the roller is level and at the same height position on each side. Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk... - Page 13 Paper Straight blade To maintain maximum run time and smooth, efficient cutting performance, an oil or spray lubricant can be applied to the edge of the straight blade and the shaft bearings. Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk...
-
Page 14: Using Your Mower
Start mowing around the edges of the area to be mowed, then cut the centre area in stripes. Before removing the grass bin for emptying release the operation lever and wait for the blades to stop turning. Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk... -
Page 15: Reset Button
3) Push the mower more slowly. 4) Check the blade is correctly adjusted so the grass is being cut cleanly. 5) Clean the blades and remove any grass or objects that may be causing the mower to stall Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk... -
Page 16: Care And Maintenance
Dis-connect the power cord and flex the lower handles to remove from the frame locating lugs If the product needs to be repaired or replaced only use parts which are approved by the manufacturer. Replacement batteries can be purchased from Grey Technology. Tel : 0870 7944001 www.greytechnology.co.uk Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk... -
Page 17: Troubleshooting
2. Call customer service helpline Motor works but blades 1. Broken drive belt 1. Call customer service helpline do not turn For further help or assistance please contact the Gtech helpline. Tel : 0870 7944001 email: support@greytechnology.co.uk Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk... -
Page 18: Battery Disposal
For safety we do not recommend to dis-assemble and remove the battery from the battery pack, and this should only be carried out by a professional or technically competent person. It is recommended to dispose of the complete battery pack at a recognised recycling facility. Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk... -
Page 19: Warranty Information
If your product is within the 12 months warranty period you should either return this product with its receipt to the retailers where the product was purchased or if a simple part or advice is required ring the Gtech customer services line where will be more than happy to assist. -
Page 20: Ec Declaration Of Conformity
Grey Technology Ltd Units 1&2 Cupola Court Worcester WR5 1RL declare that the product CM01 Cordless Cylinder Lawn Mower complies with the essential health and safety requirements of the following directives: 2004/108/EC - EMC Directive. 98/37 EEC - Machinery Directive...
