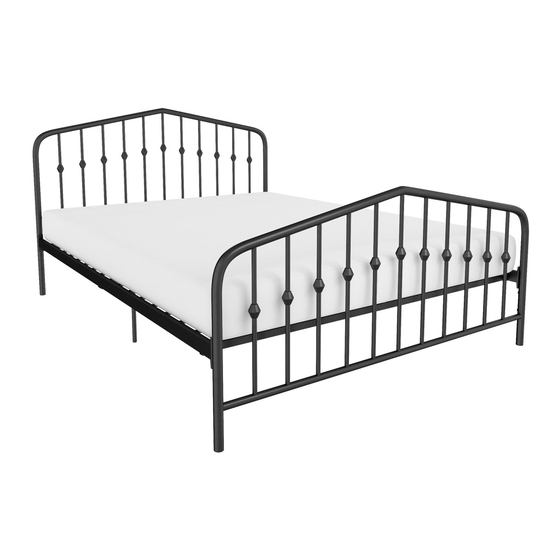

4044029NUK(Black) 4044429NUK(Gunmetal Grey) 4044129NUK(White)
Weight Limit: 450 Lb / 204 Kg
J.Z. - 2019/10/25
Thank you for purchasing from Dorel UK!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
01942 524100
Call
Date of Purchase
IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE
Metal Bed
Double UK
Lot Number
B344044029NUK00
1
