Apera 2310T-F User Manual

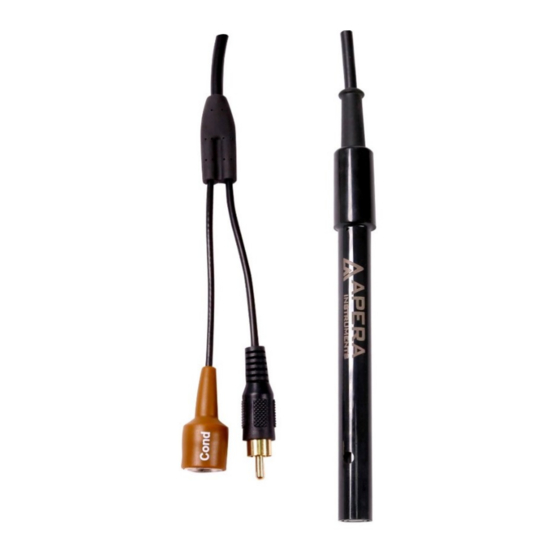

2310T-F High-Range Conductivity/Temp. Electrode

Brief Introduction

Apera Instruments 2310T-F High-Range Conductivity/Temp. Electrode is featured with a proprietary
platinum black ring sensor for accurate readings in an ultra-wide conductivity range up to 2000 mS/cm,
along with a built-in temperature sensor for automatic temperature compensation.

Technical Specifications

Range
Housing
Constant
Connector
Cable length
Dimension
Temperature sensor
Operating temperature

How to Install the Electrode

1. Find the conductivity BNC socket (where it shows Cond) on the conductivity meter; Open the
rubber cap; Insert the BNC connector of the electrode to the BNC socket while twisting clockwise
until it's locked.
2. Find the RCA socket (where it shows temp) on the meter; Open the rubber cap; Insert the black
RCA connector of the electrode to the RCA socket directly.
3. After connecting the new electrode to your meter, adjust the meter's constant K to 10 according
to the instruction of your meter's manual. Then perform a 2 to 3-point calibration to ensure the
accuracy.
User Manual
1 to 2000 mS/cm, 32 to 122°F (0 to 50°C)
POM
K=10
BNC/RCA
3 Ft
ø12*145 mm
30KΩ thermistor
32 to 176°F (0 - 80°C)
