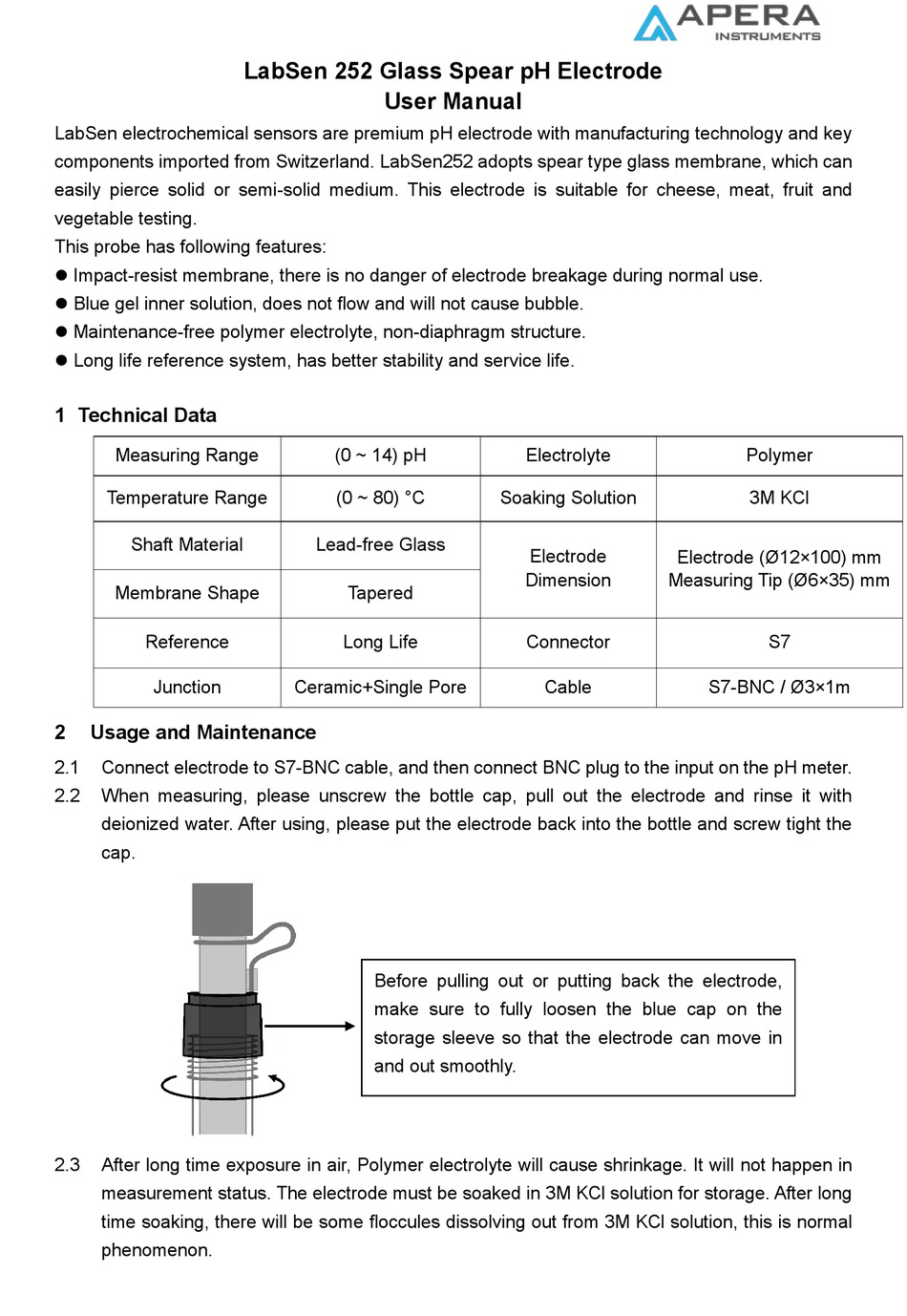

Apera LabSen 252 User Manual

LabSen electrochemical sensors are premium pH electrode with manufacturing technology and key
components imported from Switzerland. LabSen252 adopts spear type glass membrane, which can
easily pierce solid or semi-solid medium. This electrode is suitable for cheese, meat, fruit and
vegetable testing.
This probe has following features:
⚫ Impact-resist membrane, there is no danger of electrode breakage during normal use.
⚫ Blue gel inner solution, does not flow and will not cause bubble.
⚫ Maintenance-free polymer electrolyte, non-diaphragm structure.
⚫ Long life reference system, has better stability and service life.

1 Technical Data

Measuring Range
Temperature Range
Shaft Material
Membrane Shape
Reference
Junction
2

Usage and Maintenance

2.1 Connect electrode to S7-BNC cable, and then connect BNC plug to the input on the pH meter.
2.2 When measuring, please unscrew the bottle cap, pull out the electrode and rinse it with
deionized water. After using, please put the electrode back into the bottle and screw tight the
cap.
2.3 After long time exposure in air, Polymer electrolyte will cause shrinkage. It will not happen in
measurement status. The electrode must be soaked in 3M KCl solution for storage. After long
time soaking, there will be some floccules dissolving out from 3M KCl solution, this is normal
phenomenon.
LabSen 252 Glass Spear pH Electrode
User Manual
(0 ~ 14) pH
(0 ~ 80) °C
Lead-free Glass
Tapered
Long Life
Ceramic+Single Pore
Before pulling out or putting back the electrode,
make sure to fully loosen the blue cap on the
storage sleeve so that the electrode can move in
and out smoothly.
Electrolyte
Soaking Solution
Electrode
Dimension Measuring Tip (Ø6×35) mm
Connector
Cable
Polymer
3M KCl
Electrode (Ø12×100) mm
S7
S7-BNC / Ø3×1m
