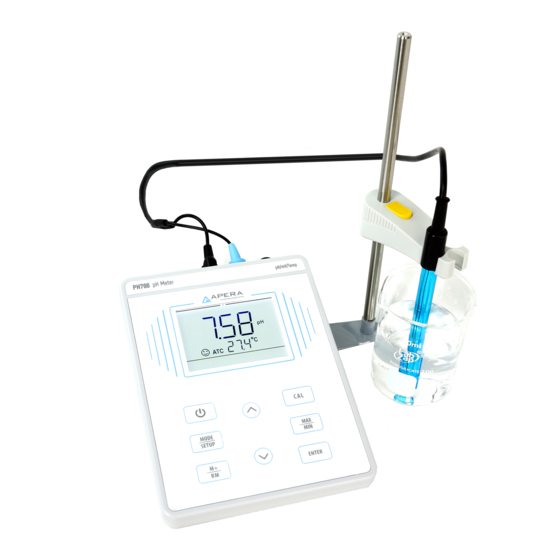

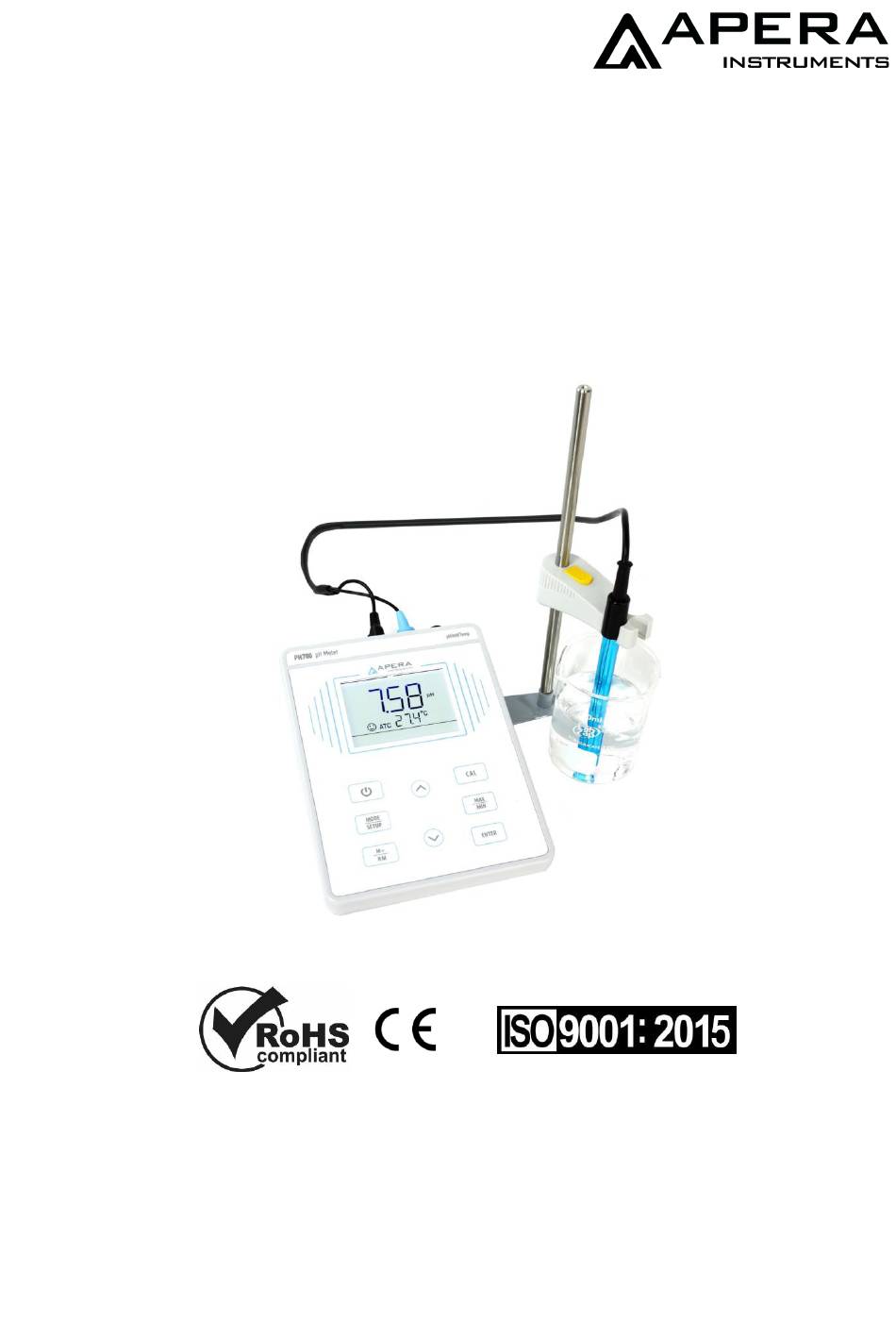

- Page 1 PH700 Benchtop pH Meter Instruction Manual APERA INSTRUMENTS(Europe) GmbH www.aperainst.de Manual Version 3.2...
-
Page 2: Table Of Contents
Table of Contents Brief Introduction ......................- 1 - Main Features ........................- 1 - Technical Specifications....................- 1 - What’s in the Box? ......................- 2 - Instrument Description ....................- 2 - LCD Display .......................... - 2 - Keypad .......................... -
Page 3: Brief Introduction
This instrument is an outstanding combination of advanced electronics design and sensor technology. It’s the most economical choice of a reliable lab-grade benchtop pH meter. Please read this maual carefully to properly use and maintain the meter. Apera Instruments reserves the right to update the contents of this manual without giving prior notices. -
Page 4: What's In The Box
What’s in the Box? Content Quantity PH700 Benchtop pH Meter 201T-F Plastic 3-in-1 Combination pH Electrode pH standard buffer solutions (4.00/7.00/10.01 pH; 1 for each (50ml for each) 9V Power Adapter Electrode Holder 1 set Instruction Manual Instrument Description 4.1 LCD Display Figure-1 (1) —... -
Page 5: Keypad
4.2 Keypad Figure-2 3.2.1. Keypad operations Short press ----- <1.5 seconds; Long press ----- >1.5 seconds. 3.2.2 For keypad operation, please see Table-1. Table – 1 Keypad operations and descriptions Keypad Operation Functions Short Press Power on/off Short Press Select measuring mode: pH→mV. -
Page 6: Connectors
4.3 Connectors Symbol Connector Name Connector Type Socket for reference electrode Φ2 banana type pH/mV Socket for pH and ORP electrode TEMP Socket for temperature sensor DC9V DC9V power socket Φ2.5 direct type 4.4 Stable reading display mode When the measuring value is stable, smiley face icon appears on LCD, see Figure-3. -
Page 7: Max/Min Function
Clear stored data The meter can store 50 groups of data. Once the storage is full, if user presses again, the FUL icon will be displayed on LCD (see Figure-6). The storage needs to be cleared in parameter setting P4 so as to keep storing data. -
Page 8: Information Regarding Calibration
of the probe. Technical Specifications of the 201T-F pH Electrode Measurement Range: 0 - 14 pH, 0 - 80˚C (32 – 176˚F) Junction: Single Ceramic Reference Electrode: Ag/AgCl Connector: BNC Size: ø12*160 mm Temperature unit: 30K Thermistor Electrode Connectors The pH electrode has two connectors: the BNC connector connects the pH probe; the RCA connector connects the temperature sensor. - Page 9 Table-3 Calibration Mode Calibration When to adopt icon 1-Point 7.00 pH 6.86 pH accuracy≤ ±0.1 pH Calibration 7.00 pH and 6.86 pH and Measuring range: 0 to 7.00 pH 4.00/1.68 pH 4.01/1.68 pH 2-Point Calibration 7.00 pH and 10.01 pH 6.86 pH and 9.18 pH Measuring range: >7.00 pH 3-Point 7.00pH, 4.00/...
-
Page 10: Ph Meter Calibration
5.4 pH Meter Calibration 1) Press to enter calibration mode. CAL1 icon will flash in the upper right corner of the LCD. 7.00 pH will flash in the lower right corner of the LCD, reminding you to use pH 7.00 buffer to conduct 1 point of calibration. -
Page 11: Measuring Ph
6) During the calibration process, press key to exit from the calibration mode. The meter can perform one-point, two-point and three-point calibration. Calibration guide icons appear on LCD. 5.5 Measuring pH Screw off the KCL storage bottle, and put it aside (do not dump or spill the KCL solution). Prepare a cup of distilled water, and rinse the electrode in it for a few seconds. - Page 12 5.5.1 According to the pH isothermal measurement principle, the closer the test sample’s temperature is to the calibration solution’s, the higher the accuracy of the measurement. This principle is recommended to follow when conducting tests for the best result. Example: If users were to test samples at 150˚F, we recommend warming up the calibration solutions to the same temperature before performing calibrations in order to get the most accurate readings.
-
Page 13: Parameter Setting
5.6 Parameter Setting Table-6 Symbol Parameter setting content Parameter Factory default setting Select pH buffer series USA - NIST Select resolution 0.1/0.01 pH 0.01 pH Select temperature unit ℃ - ℉ ℃ Clear stored data No-Yes Return to factory default No-Yes 5.6.1 How to do the parameter setting: In measurement mode, long press... -
Page 14: Ph Electrode's Maintenance
P5 — Restore to factory default setting (No—Yes) 1. Press , “No” flashes, press to select No to Yes, press to confirm; The meter returns to measurement mode. 2. If not selecting “Yes”, press to return to measurement mode. 5.7 pH Electrode’s Maintenance 5.7.1 Daily maintenance The soaking solution contained in the supplied protective bottle is used to maintain activation in the glass bulb and junction. -
Page 15: Mv Measurement
(c) For heavily polluted platinum surface on which there is oxidation film, polish the platinum surface with toothpaste, then wash it in distilled water, then submerge it in the soaking solution for 6 hours. Recommended pH Electrodes for Specific Applications Application Ideal Apera pH Electrodes to Use with PH700 Meter Regular water solutions 201T-F, LabSen 213... -
Page 16: Warranty
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at option of APERA INSTRUMENTS(Europe) GmbH, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS(Europe) GmbH for a period of TWO YEARS (SIX MONTHS for the probe) from the delivery.
