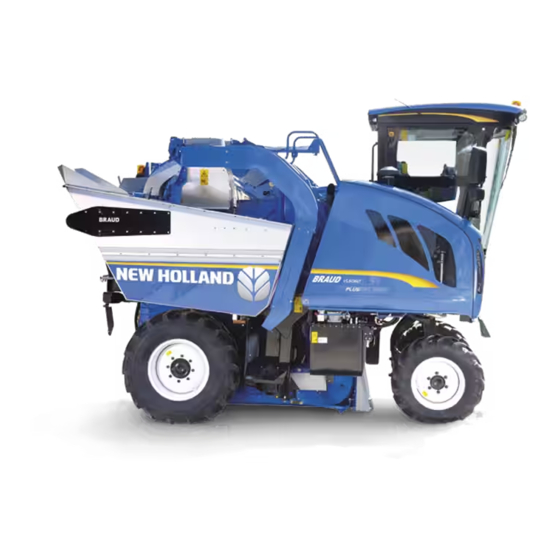

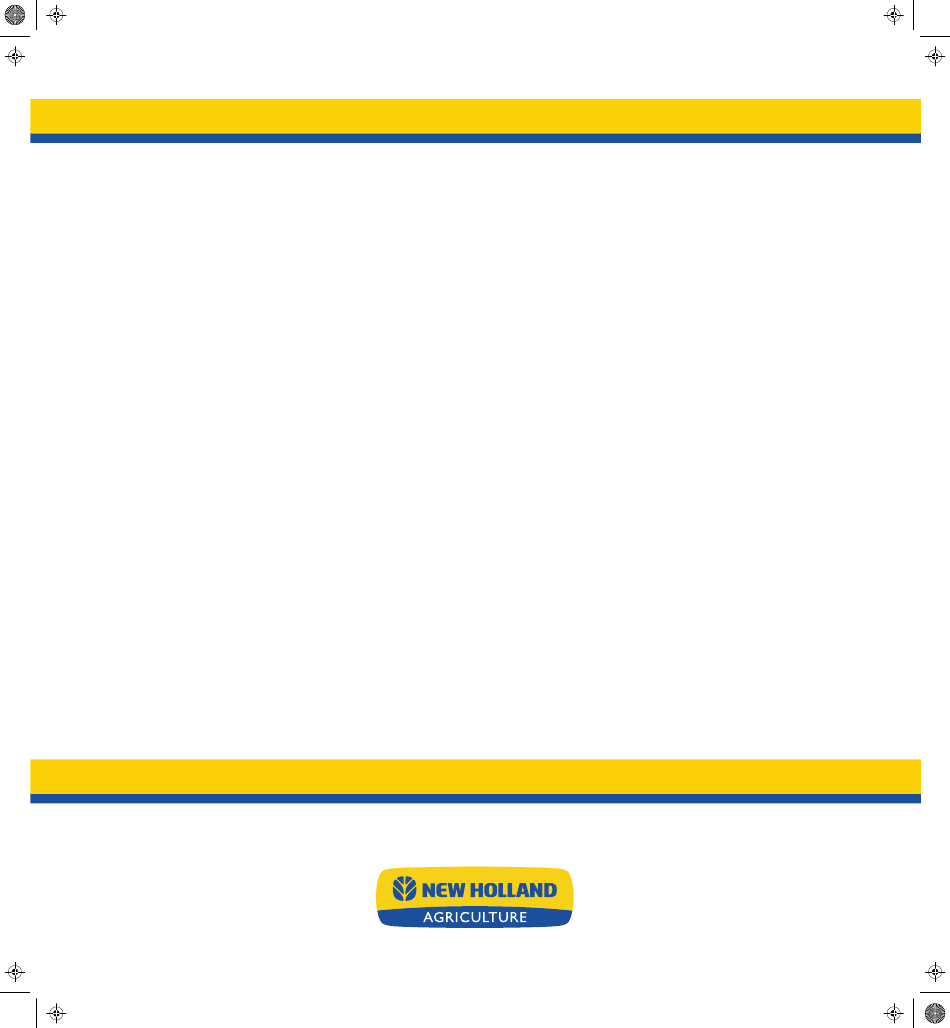

- Page 1 SERVICE MANUAL VL5060 / VL5080 / VL5090 VL6040 / VL6050 / VL6060 / VL6070 / VL6080 / VL6090 VM3080 / VM3090 / VM4090 VN2090 Grape Harvesters Print No. 84189523B...
- Page 2 Document content This document contains: -- all documentation for machines VL 6040, 6050, 6060, 6070, 6080, 6090; VL 5090; VM 4090, 3090 and VN 2090 -- Starting only from series 013 for the models VL 5080 and 5060; VM 3080 (these machines are equipped with ”ELTEC”...
- Page 3 Machine name change Correspondence Previous name New name VL 660 VL 6090 Up to series 024 Starting from series 025 VL 640 VL 6080 Up to series 022 Starting from series 023 VL 630 VL 6070 Up to series 022 Starting from series 023 VL 620 VL 6060...
- Page 4 REPAIR MANUAL CONTENTS Section Description Specifications Maintenance Machine arrangement Engine Hydrostatic transmission Brakes Hydraulic system Frame Steering Wheels Electrical system Harvesting equipment Product feeding Cleaning Hoppers Accessories 84189523B - - 01 - - 2010 Find manuals at https://best-manuals.com...
- Page 5 84189523B - - 01 - - 2010 Find manuals at https://best-manuals.com...
- Page 6 SPECIFICATIONS Chapter 1 CONTENTS Section Description Page Machine identification data ........... . . Dimensions .
- Page 7 SPECIFICATIONS 84189523B - - 01 - - 2010 Find manuals at https://best-manuals.com...
- Page 8 SPECIFICATIONS B 01 /10 MACHINE IDENTIFICATION DATA Model Type Serial no. Machine number VL 6090 VL 6080 VL 6070 VL 6060 VL 6050 VL 6040 VM 4090 VL 5090 VL 5080 VL 5060 VM 3090 VM 3080 VN 2090 New numbering starting from the installation of cabs with roll--over--protection structure ”ROPS” COEX code Free = 00 Type...
- Page 9 SPECIFICATIONS DAV3 DAV1 DAV2 La 1 La 3 La 2 La AR La AV 2100 litres 2600 litres 3200 litres La B1 La B2 84189523B - - 01 - - 2010 Find manuals at https://best-manuals.com...
- Page 10 SPECIFICATIONS COMMERCIAL DESCRIPTION From VL6040 VM4090 to 6090 Code DIMENSIONS (mm) Height: without cab (harvesting equipment on with/cab the ground) at the revolving beacon 3635 (3870*) Harvesting equipment height at the railings without (with) destemmers 3380 (3520)(3590*) Clearance under the harvesting equipment from 2000 to 2600 2260 from 2760*) Clearance under tilted up hoppers 1710 (1950*)
- Page 11 SPECIFICATIONS DAV3 DAV1 DAV2 La 1 La 3 La 2 La AR La AV 1800 litres 2160 litres 2360 litres La B1 La B2 84189523B - - 01 - - 2010...
- Page 12 SPECIFICATIONS COMMERCIAL DESCRIPTION VL5090/VL5080, VM3090 / 3080 5070, 5060 Code DIMENSIONS (mm) Height: without cab 3160 3040 (at the revolving beacon) (3745) (3615) (harvesting equipment on with cab the ground) at the revolving beacon 3605 3475 Harvesting equipment height at the railings 3285 3185 Clearance under the harvesting equipment...
- Page 13 SPECIFICATIONS DAV3 DAV2 La 1 La 3 La 2 La AR La AV 1400 litres La B1 La B2 84189523B - - 01 - - 2010...
- Page 14 SPECIFICATIONS COMMERCIAL DESCRIPTION VN2090 VM 3080 H Code DIMENSIONS (mm) Height: without cab 3160 (3745) (harvesting equipment on the with cab ground) at the revolving bea- 3475 3605 Harvesting equipment height to the railings 3025 3285 Clearance under the harvesting equipment from 1500 to 2000 1950 to 2450 Clearance under tilted up hoppers...
- Page 15 SPECIFICATIONS COMMERCIAL DESCRIPTION From VL6040 to 6090 VM4090 WEIGHTS PTAC -- Total allowed weight under load (kg) (1) (2) from 9200 to 10500 from 9200 to 9600 Allowed partition (2) Front axle (kg) from 3980 to 4200 from 3980 to 4200 from 5380 to 7300 from 5380 to...
- Page 16 Max. speed (km/h) in road position 25 km/h Max. speed in field position Hydraulic oil Capacity (litres) Reservoir Hydrosystem 68 Oil type New Holland Hydrosystem 68 BIO S Conveyor and extractor pump Make REXROTH Displacement (cm /rev.) ”Load sensing” from 0 to 45...
- Page 17 SPECIFICATIONS COMMERCIAL DESCRIPTION From VL6040 to 6090 VM4090 TILTING CORRECTION PLATFORM CAB Heated and A/C cab Depending on the model Activated charcoal filter Optional Board computer Grand--Luxe seat Pneumatic seat Multifunctional handle LIGHTING AND WARNING LIGHTS High/low beams Front parking lights Rear parking lights Direction indicator warning lights Front...
- Page 18 SPECIFICATIONS COMMERCIAL DESCRIPTION VL6040 From VL6050 to 6090 VM4090 HARVESTING EQUIPMENT HARVESTING HEADER Harvesting header hour counter Type Swinging, self--aligning System SDC shaking Number of shakers Straight/elbow connecting rod 13/1 Shaking start Motor manufacturer EATON SAUER Displacement (cm /rev.) Control unit: -- ratio AMBRA GR75MD 1.2 kg -- grease...
- Page 19 SPECIFICATIONS COMMERCIAL DESCRIPTION From VL6040 to 6090 VM4090 RECEIVING / TRANSPORTATION Noria system Buckets per chain Type XXL (from 6040 to 6090) small Syncronized in field speed in field speed Drive 16/59 gears 16/59 Width of flexible stake--guides (mm) from 195 to 265 from 165 to Tightness length (mm) 2100...
- Page 20 SPECIFICATIONS COMMERCIAL DESCRIPTION From VL6040 to 6090 VM4090 RECEIVING / TRANSPORTATION (follows) HOPPERS Capacity (litres) 2 x 1600 2 x 1300 2 x 1300 2 x 1050 2 x 1050 Electrically--operated distribution auger Control independent of the grape harvester Separating destemmers Belt drive Motor EATON...
- Page 21 SPECIFICATIONS 84189523B - - 01 - - 2010...
- Page 22 SPECIFICATIONS COMMERCIAL DESCRIPTION VL5090 / 5080, VM3090 / 3080 VN2090 5060 WEIGHTS PTAC -- Total allowed weight under load (kg) (1) 8000 to 8300 / 7800 to 8000 7900 Allowed partition Front axle (kg) (1) 3100 to 3440 3400 4600 to 5200 4600 Rear axle (kg) (1) Empty weight (kg) with harvesting equipment...
- Page 23 Max. speed in field position, (km/h) Hydraulic oil Capacity (litres) Reservoir Hydrosystem 68 Oil type New Holland Hydrosystem 68 BIO S Hydraulic filtering (intake/return) (1) the capacity divider is available on VM 3080 H only 84189523B - - 01 - - 2010...
- Page 24 SPECIFICATIONS COMMERCIAL DESCRIPTION VL5090 / 5080, VM3090 / 3080 VN2090 5060 DRIVE (follows) Conveyor and ex- Make SAUER tractor pump Displacement (cm /rev.) engine speed Empty operating speed (rpm) Capacity (l/minute), output 0.9 Double pump Make SAUER -- for shaking Displacement (cm /rev.) (1.02 x engine speed)
- Page 25 SPECIFICATIONS COMMERCIAL DESCRIPTION VL5090 / 5080, VM3090 / 3080 VN2090 5060 PLATFORM CAB Heated and A/C cab Activated charcoal filter optional Dashboard Make ELTEC Imitation leather seat as standard outfit Pneumatic seat with cab optional Standard Multifunction lever, number of push buttons Electrical inching control adjusted through sensors (optional radar) Electrical presetting for:...
- Page 26 /rev.) (1) 14 shakers for VM 3080 H only (2) The shaking is operated by chain on models VL5060 and VM3080. The models VM5090, 5080 and VM3090 -- 3080H are operated by ECU (3) The gauge is electric and can be deactivated only on models VL5090, 5080 and VM3090, 3080H...
- Page 27 SPECIFICATIONS COMMERCIAL DESCRIPTION VL5090 / 5080, VM3090 / 3080 VN2090 5060 RECEIVING / TRANSPORTATION (follows) Harvesting conveyors Width (mm) Speed (max. rpm) Reverse Single operation Motor EATON Displacement (cm /rev.) 31.6 CLEANING 2 upper extractors with Diameter (mm) removable stalk choppers Motor SAUER Displacement (cm...
- Page 28 SECTION 00 - - MAINTENANCE - - CHAPTER 1 SECTION 00 - - MAINTENANCE Chapter 1 CONTENTS Section Description ............Page Lubricant and liquid capacities .
- Page 29 SECTION 00 - - MAINTENANCE - - CHAPTER 1 LUBRICANT AND LIQUID CAPACITIES Corresponding Item to be supplied Quantity Recommended product international classification Self--propelled machine Grease Lithium--calcium based grease fittings AMBRA GR 9 grease, consistency NLGI 2 Grease 24 cartridges Harvesting machine grease fit- tings Food type...
- Page 30 SECTION 00 - - MAINTENANCE - - CHAPTER 1 THERMAL ENGINE MAINTENANCE a) After the first 50 hours c) Every 400 hours, or before each harvest- ing season: Let the engine run until it reaches the stan- dard operating temperature. engine oil, Replace diesel oil filter cartridge/s.
- Page 31 SECTION 00 - - MAINTENANCE - - CHAPTER 1 From VL6050 to 6090 VM4090 84189523B - - 01 - - 2010...
- Page 32 SECTION 00 - - MAINTENANCE - - CHAPTER 1 LOCATION OF THE GREASING POINTS OF THE HARVESTING EQUIPMENT From VL6050 to 6090 and VM4090 The greasing ramp is located on the harvesting These positions are not localised and should be equipment central gangway.
- Page 33 SECTION 00 - - MAINTENANCE - - CHAPTER 1 84189523B - - 01 - - 2010...
- Page 34 SECTION 00 - - MAINTENANCE - - CHAPTER 1 LOCATION OF THE GREASING POINTS - - VL5090, 5080, 5060 VM3090, 3080 and VN2090 Position and number of grease fittings Greasing frequency 10 h 50 h SELF- -PROPELLED MACHINE Front legs 2 x 3 Steering cylinder articulation Steering relays Steering bar ball joints...
- Page 35 SECTION 00 - - MAINTENANCE - - CHAPTER 1 Hydraulic filter cover During reassembly, pay attention to the assembly direction: the (A) side with only one arrow on the cover must be directed towards the return line, the (B) side with two arrows on the cover must be directed towards the intake lines.
- Page 36 SECTION 00 - - MAINTENANCE - - CHAPTER 1 MACHINE WASHING To avoid sugar deposits and harvesting equipment MACHINE ARRANGEMENT FOR WASHING clogging and to preserve the harvesting quality, the AT THE END OF THE CAMPAIGN machine must be washed once or more times a day, especially after its utilization.
- Page 37 SECTION 00 - - MAINTENANCE - - CHAPTER 1 WASHING (in the washing area) After entering the washing area, lower the machine to about 10 cm from the ground and tilt the hoppers WARNING: this is a departure from fully. Make sure the inching lever is in neutral, engage the general safety requirements specified in the the hand brake, stop the thermal engine, get off the Operator’s Manual.
- Page 38 SECTION 00 - - MAINTENANCE - - CHAPTER 1 Wash carefully the machine rear outer part and Operate the machine to empty the hoppers and clean carefully the rear deflector inner part. Inject return to the washing area. water into the rear left and right deflectors Lift the machine at half height, tilt the hoppers through the special openings.
- Page 39 SECTION 00 - - MAINTENANCE - - CHAPTER 1 84189523B - - 01 - - 2010...
- Page 40 SECTION 00 - - MAINTENANCE - - CHAPTER 1 HYDROSTATIC AND HYDRAULIC SYSTEM MAINTENANCE 1) Intake and return filter cartridge replace- Before the following campaign and, compulsor- ily, before starting the thermal engine, empty ment the tank partially to ensure a perfect oil settling. Check the oil level in the reservoir.
