Installation Instructions
V1.0

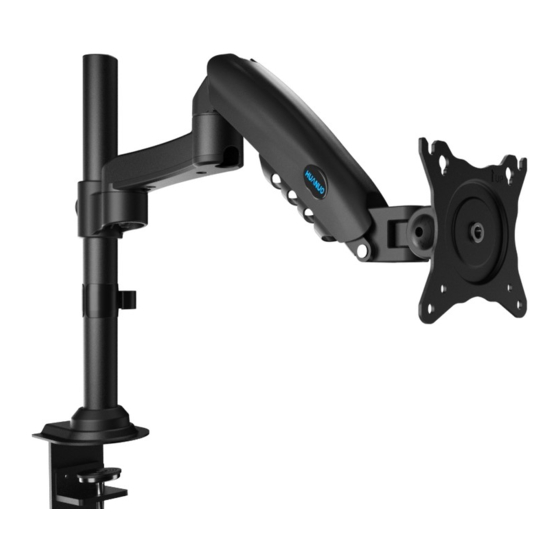

HNSS8
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? Should you have any issues, please don't
hesitate to contact us.
Telephone：1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Email：support@huanuoav.com (US/CA/DE/UK/FR/IT/ES/AU)
Advertisement
Table of Contents
Related Manuals for HUANUO HNSS8
Summary of Contents for HUANUO HNSS8
- Page 1 Installation Instructions V1.0 HNSS8 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Do not install or assemble if the product or hardware is damaged or missing, if you require replacement parts, please contact customer service at support@huanuoav.com. For safe installation, the desk you are mounting to must support minimum 3 times the weight of the total load (the mount, the monitor and all accessories weight). -
Page 3: Product Features
Product Features C-Clamp Mounting Grommet Mounting... - Page 4 Parts and Hardware Included Cable Clip Cover Pole Assembly C-Clamp Screw Screw Screw M4x12mm (4pcs) M5x12mm (4pcs) M6x12mm (3pcs) Butterfly Nut Grommet Bolt Screw Wrench Locking Plate M4x6mm (2pcs) 1. Install the Base A. For Clamp Mounting A-1 Install the C Clamp Connect part [X] to pole Detach the c-clamp entirely assembly [02]...
- Page 5 Secure the base to the desktop B. For Grommet Mounting 1 Install the grommet bolt Warning: Ensure screws are secured firmly.
- Page 6 Secure the base to desktop using locking plate and butterfly nut Warning: Ensure screws are secured firmly. 2. Install the Arms Slide arm [01] to the pole assembly [02] and secure using wrench [F] Ensure screws are secured firmly.
- Page 7 3. Attach Monitor to the Arm 3-1 Choose Proper Screws 3-2 Install Monitor to the Arm 3-5mm(0.1-0.2in.) spacing left 75 mm ≈ 2 7/8 in. 100 mm ≈ 4 in. The tension is preset at 4-5kg. After hanging the monitor to the mount, please release the monitor slowly to prevent it from falling suddenly...
- Page 8 (1 rotation ≈ 1 lb) 5. Rotation Restriction Proper usage directions Non-proper usage directions...
-
Page 9: Tilt Adjustment
6. Tilt Adjustment “+” Clockwise: Tighten “-” Counter-clockwise: Loosen Situation 1: If the monitor can stay at the desired tilt angle by itself, no adjustment needed. Situation 2: If the monitor can not stay at the desired tilt angle by itself, turn the screws clockwise or counter-clockwise as shown until the monitor can stay at the desired tilt angle by itself. - Page 10 8. Route Cables along the Arms...
- Page 11 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor. 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is between 4.4~19.8 Ibs (2-9 kg).
