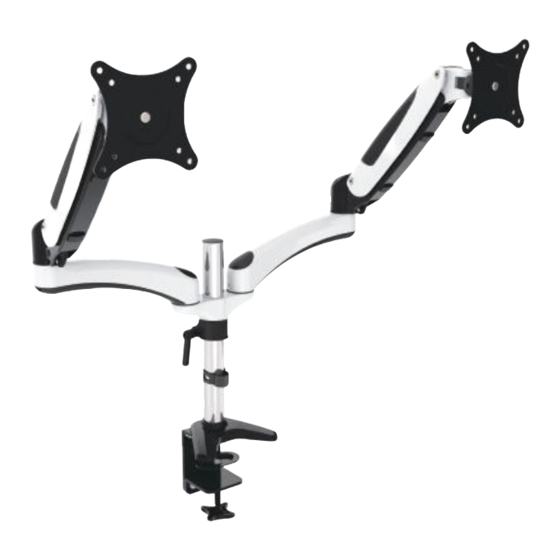

Gas Spring Aluminum Monitor Desk Mount
Website:
www.huanuoav.com
Model: HNDSK1
Thank you for choosing this HUANUO product! At HUANUO we
strive to provide you with the best quality products and services in
the industry. Please share your experience of our product with
others at www.huanuoav.com/reviews if you are satisfied. Should
you have any issues, please don't hesitate to contact us.
Technical Support:
1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
support@huanuoav.com(US/CA)
V5.0
Advertisement
Related Manuals for HUANUO HNDSK1
Summary of Contents for HUANUO HNDSK1
- Page 1 Gas Spring Aluminum Monitor Desk Mount V5.0 Model: HNDSK1 Thank you for choosing this HUANUO product! At HUANUO we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at www.huanuoav.com/reviews if you are satisfied.
- Page 2 Product Features Option A Option B...
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our customer service at support@huanuoav.com. CAUTION: Avoid potential personal injuries and property damage! • Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. - Page 4 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is within 17.6 Ibs (8 kg).
-
Page 5: Supplied Parts And Hardware
Tools Needed (Not lncluded) Phillips Screwdriver Supplied Parts and Hardware Warning : This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. lf you require replacement parts, contact our customer service at support@huanuoav.com. - Page 6 Supplied Parts and Hardware for Step 2 Bolt Bolt M4x12mm (x8) M4x16mm (x8) Bolt Bolt Spacer （x2） M6x12mm (x8) M6x16mm (x8) (x8) Supplied Parts and Hardware for Step 3 Arm Extension Bolt Decorative Cover Small Allen Key （x2） M6x25mm (x4) (x4) （x1）...
-
Page 7: Step 1. Install The Base
STEP 1. Install the Base A. For Clamp Mounting B. For Grommet Mounting Medium Allen Key Large Allen Key Medium Allen Key Desk... - Page 8 C. Adjust the Height 1. Slightly loosen the locating ring and preassembled set screw [S1]. 2. Adjust the locating ring to your desired height. 3. Re-tighten the locating ring and Small Allen Key set screw [S1] to fix the height. STEP 2.
- Page 9 STEP 3. Secure the Monitors to the Mount Option A 3-1. Arm Extensions [C] Not Required Small Allen Key Tighten Tighten 3-2. Option B Arm Extensions [C] Required Small Allen Key Tighten Tighten...
- Page 10 STEP 4. Adjust Gas Spring Tension Be sure to keep the arm in horizontal position during adjustment. Or else, it would be difficult to adjust the mount or damage the mount. 1. If the monitor can stay at the desired height by itself, no adjustment needed. 2.
- Page 11 STEP 5. Rotation Restriction Proper usage directions Non-proper usage directions STEP 6. Tilt Adjustment Large Allen Key “+” Clockwise: Tighten “-” Counter-clockwise: Loosen Situation 1: If the monitor can stay at the desired tilt angle by itself, no adjustment needed. Situation 2: If the monitor can not stay at the desired tilt angle by itself, turn the bolt clockwise or counter-clockwise as shown until the monitor can stay at the desired tilt angle by itself.
- Page 12 STEP 7. Route Cables along the Arms...
