Single Arm Monitor Desk Mount
Instruction Manual
V2.0
Model: HASSK5
Thank you for choosing this product! We strive to provide you with
the best quality products and services in the industry. Should you
have any issues, please don't hesitate to contact us at
supportus@huanuoav.com (US/CA/DE/UK/FR/IT/ES/AU)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HUANUO HASSK5
Summary of Contents for HUANUO HASSK5
- Page 1 Single Arm Monitor Desk Mount Instruction Manual V2.0 Model: HASSK5 Thank you for choosing this product! We strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us at...
- Page 2 IMPORTANT SAFTY INFORMATION Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our customer service at supportus@huanuoav.com. CAUTION: Avoid potential personal injuries and property damage! • Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

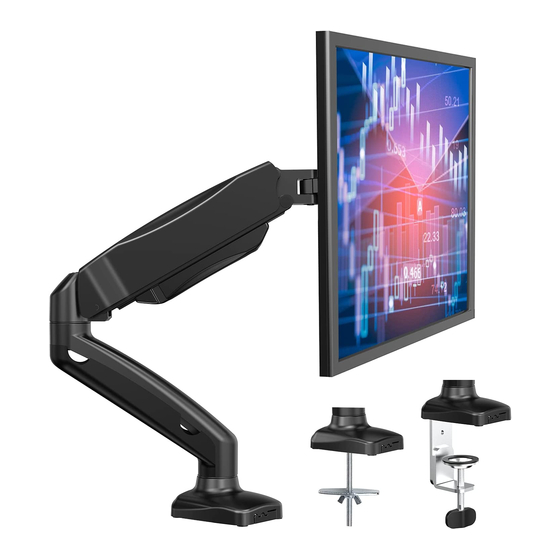

- Page 3 Product Features C-Clamp Mounting Grommet Mounting...
- Page 4 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor. 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is within 17.6 Ibs (8 kg).
- Page 5 Supplied Parts and Hardware List Bolt Bolt Connecting Bottom Desk Clamp M6x10mm M6x12mm Plate Plate Grommet Bolt Butterfly Nut Bolt Monitor Plate Plate Bolt Bolt Washer Allen Key Allen Key M4x12mm M6x12mm M-A x4 M-C x4 M-B x4 Step 1A For Clamp Mounting Connect Connecting Plate [B] to Arm [A] 1A-1...
- Page 6 Secure Desk Clamp [C] to C-Clamp Connector [B] According to the 1A-2 Thickness of the Desktop 1A-3 Secure the Mount Assembly to Desktop Step 1B For Grommet Mounting 1B-1 Secure Bottom Plate [F] and Bolt [H] to Arm [A]...
- Page 7 1B-2 Secure the Mount Assembly to the Desktop Max: 2.36in.(60mm) Select Monitor Bolts Only one bolt size fits your monitor. Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns. -Too short will not hold the monitor.
- Page 8 Step 3 Secure the Monitors to Arm Assembly The tension is preset at 4-5kg. After hanging the monitor to the mount, please release the monitor slowly to prevent it from falling suddenly Step 4 Adjust the Gas Spring Tension Be sure to keep the arm in horizontal position during adjustment.
- Page 9 Step 5 Adjustments Tilt Adjustment “+” Clockwise: Tighten “-” Counter-clockwise: Loosen Situation 1: If the monitor can stay at the desired tilt angle by itself, no adjustment needed. Situation 2: If the monitor can not stay at the desired tilt angle by itself, turn the bolt clockwise or counter-clockwise as shown until the monitor can stay at the desired tilt angle by itself.
- Page 10 Step 6 Route the Cables Along the Arm [A] Step 5-1 Detach the cable covers from the arm [A] Note: Loosen the preassembled bolts from the covers, then pinch the both sides of the bottom end of the cable covers to make it detach from the arm Step 5-2 Route the cables along the arm and secure the cable covers to the arm [A] Note: Pinch the both side of the bottom end of the...
- Page 12 Thank you again choosing this product! All of us do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
