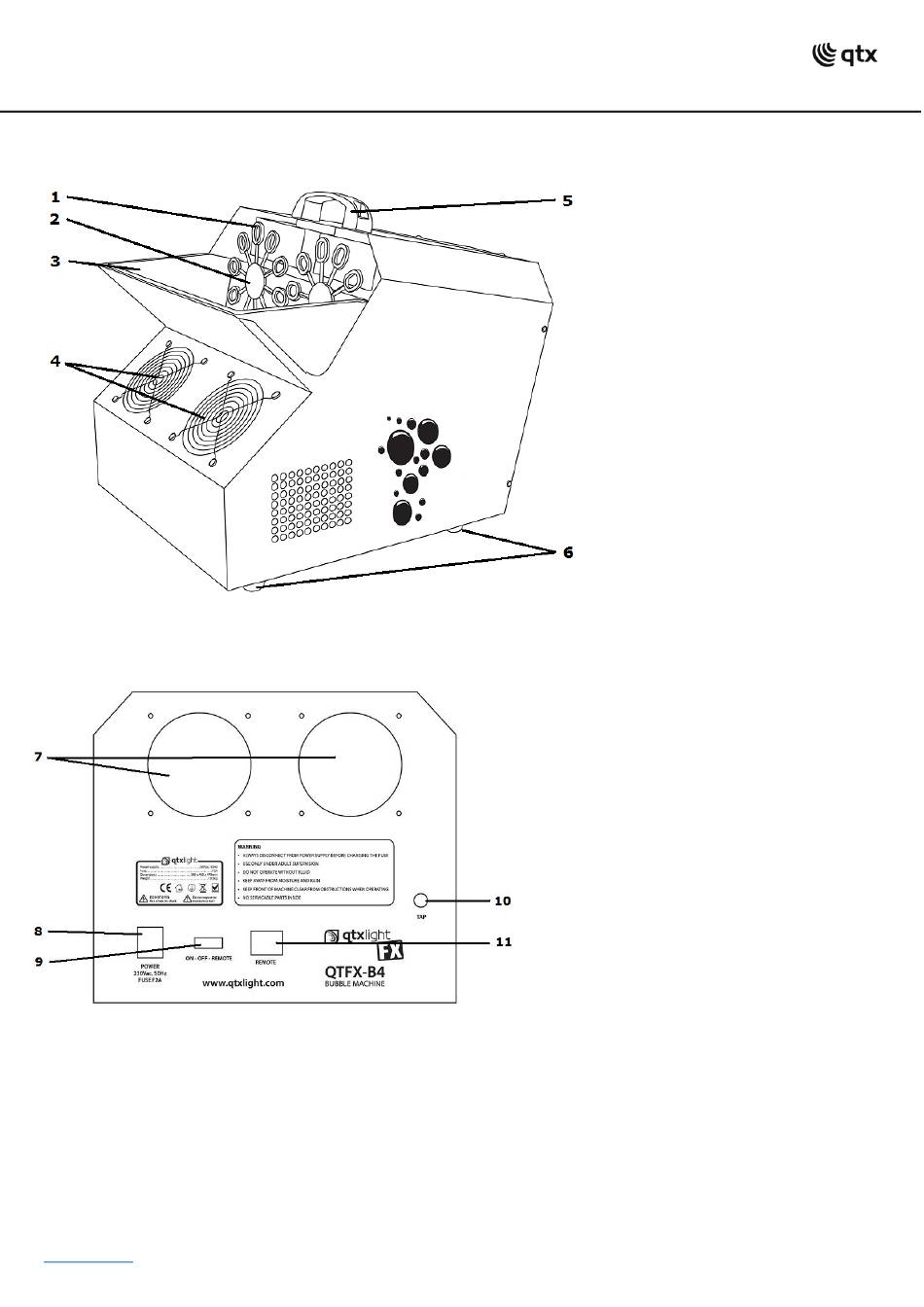

Layout
Rear panel
Operation
The QTFX-B4 is operated by a 3-position rocker switch. The centre position is off.
Press this switch to the left for constant bubble output.
Press this switch to the right for remote control of the bubble effect.
In this mode, bubbles are only produced when the switch on the remote control is pressed.
After use, switch off the machine and disconnect from the mains.
Drain the remaining fluid via the drain tap at the rear of the unit.
Rinse the bubble fluid tank with clean water and drain this also, then close the tap.
www.avsl.com
1. Bubble wand
2. Bubble wheel
3. Tank (pour fluid in here)
4. Front fans (do not cover)
5. Carry handle
6. Castor wheels
7. Rear Fans
8. IEC Power Socket
9. ON/OFF/REMOTE Switch
10. Fluid drain tap
11. Remote Socket
160.564UK Manual
