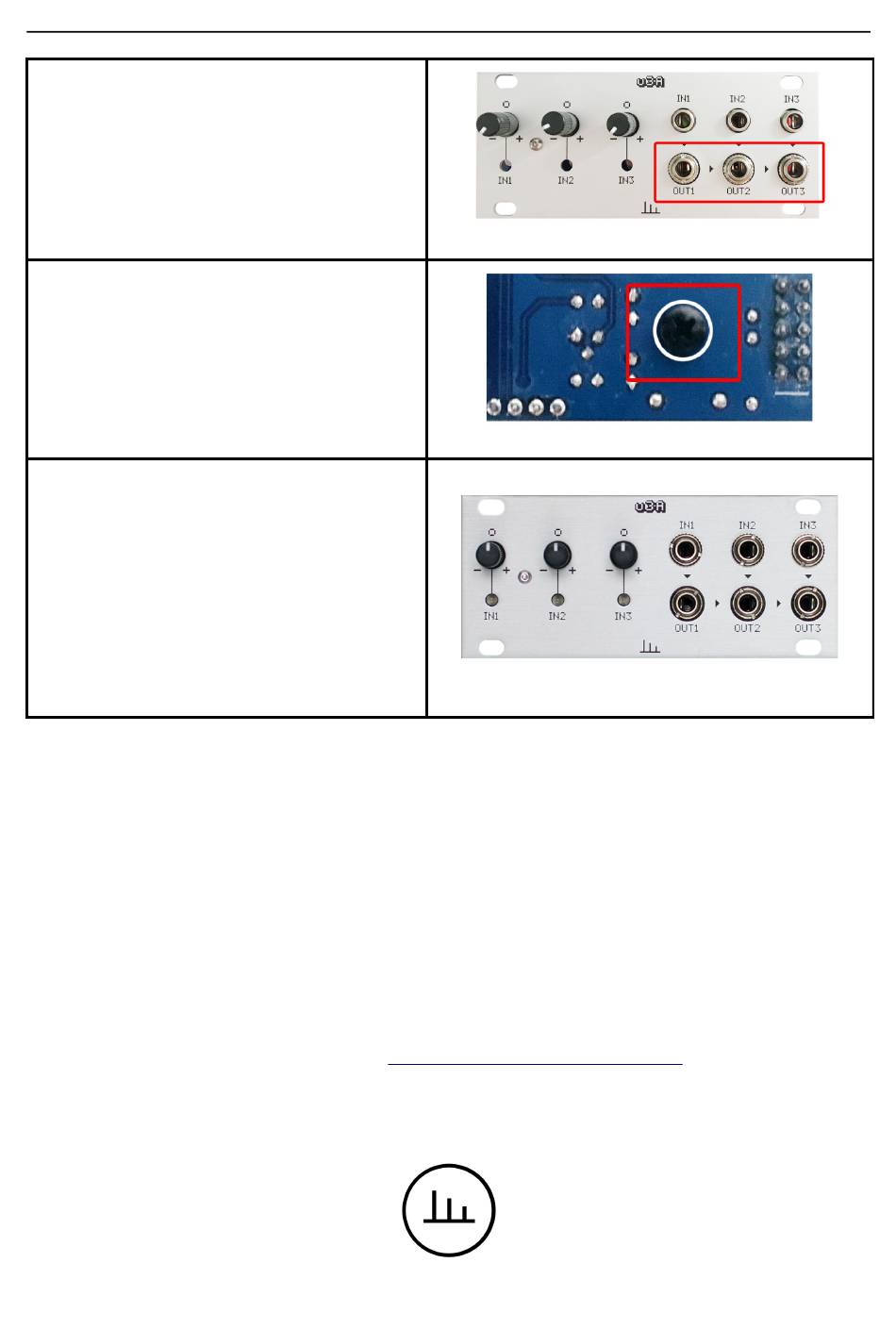

22. Place the 6x jack nuts and make
sure that the 3 nuts in the bottom are
centered with the silkscreen in the panel.
Also make sure the 3 LEDs are
positioned through the holes in the panel.
Now you can solder all the jack
sockets, potentiometers and leds.
24. Join the front PCB and the back PCB
using the pin headers and ensuring the
3mm hole match the spacer. Screw both
boards with the last M3 black screw.
25. Connect the ribbon cable. The red
stripe on the cable must line up with the
white line on the module's power
connector. And...
: ) Module fnished! : )
No calibration is needed for this module.
Check that all the inputs, outputs, offsets
and mixings work correctly!
Something is not working as it should? *
Did you like the build manual? *
Had problems during the build process? *
Are you missing any part? *
Were you soldering slighlty drunk and did a mess? *
* Based in real e-mails.
Then, write us to: contact@transientmodules.com
If everything went fine: congratulations and enjoy the module!
