Transient Modules

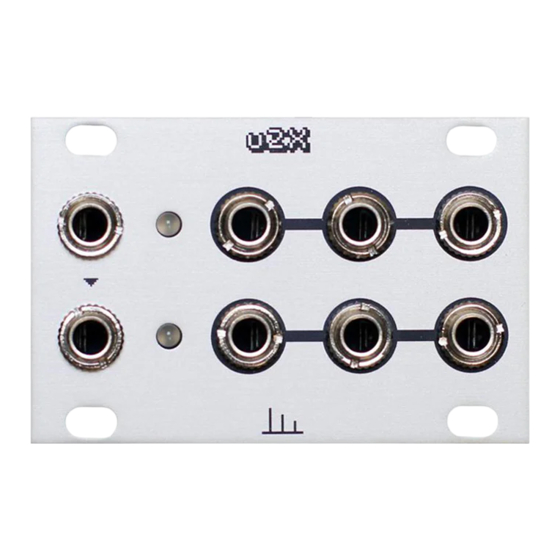

This guide is for building the u2X module from Transient Modules.
Even if you're an experienced DIYer, please read ALL the steps thoroughly
before starting, as some of them are crucial and others not so obvious.
The u2X kit consists of one board and all the parts comes in one bag.
See the lists below to identify each one of them easily before start building.
Resistors:
Resistor 10M
Resistor 1K
Resistor 51R
Capacitors:
100nF
10uF
Diodes:
1N5819
Hello!
Qty
2
2
6
6
2
2
ʕ•ᴥ•ʔ
u2X DIY build manual - Version 1.0
IC Sockets:
TL074 (SMD)
Others:
LEDs bicolor
Jack socket
Knurled nuts
Power header
Panel
u2X PCB
Ribbon cable
2
2
8
8
1
1
1
1
Advertisement
Table of Contents
Related Manuals for Transient Modules u2X
Summary of Contents for Transient Modules u2X
- Page 1 The u2X kit consists of one board and all the parts comes in one bag. See the lists below to identify each one of them easily before start building.
- Page 2 Transient Modules u2X DIY build manual - Version 1.0 1. Empty the bag into a bowl or container. This makes it much easier to pick the parts as you need them and you’re a lot less likely to lose anything.
- Page 3 Transient Modules u2X DIY build manual - Version 1.0 6. Solder the 2x 1K resistors, labelled 1001. 7. Solder the 6x 51R resistors, labelled 51R0. 8. Solder the 2x 10uF electrolytic capacitors. NOTE! Orientation is vital. The negative side of...
- Page 4 Transient Modules u2X DIY build manual - Version 1.0 11. Place all the jack sockets and leds, and then place the front panel moving a little the parts if necessary. Screw the 8x knurled nuts making sure they're centered with the circles on the silkscreen of the panel.
