- Page 1 DS-1350HMI Mobile Intercom User Manual (V1.1) UD.6L0202D2103A02...
-
Page 2: Table Of Contents
DS-1350HMI Mobile Intercom TABLE OF CONTENTS Chapter 1 Introduction ........................5 Overview........................... 5 Components ..........................5 Pin Definition ..........................6 Chapter 2 Installation ........................... 7 Chapter 3 Connecting Cables ......................8 Connecting to Mobile Enforcement System ................8 Connecting to Mobile DVR ...................... 8 Chapter 4 Adjusting Volume ....................... - Page 3 DS-1350HMI Mobile Intercom About this Manual This Manual is applicable to DS-1350HMI Mobile Intercom. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 4 DS-1350HMI Mobile Intercom Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 DS-1350HMI Mobile Intercom Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
-
Page 6: Chapter 1 Introduction

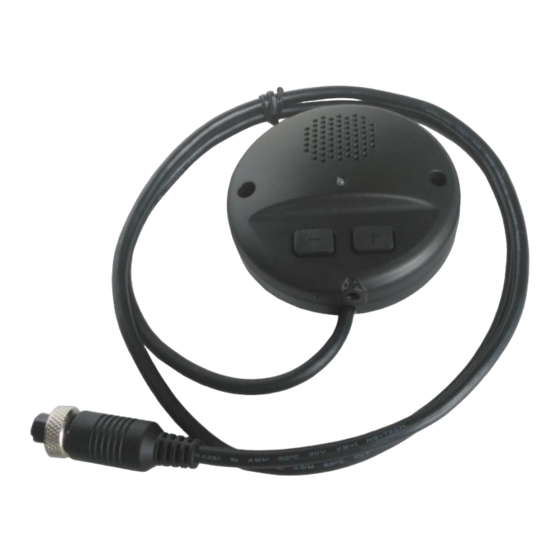

In addition, it is featured in low power consumption and long transmission distance. 1.2 Components DS-1350HMI Mobile Intercom provides one-meter long cable with a six-pin female aviation plug on one side. The physical interface is shown as below. Figure 1.1 Physical Interface A six-meter long adapter cable is provided with one four-pin female aviation plug for connecting to Mobile DVR and the other six-pin male aviation plug for connecting to intercom. -
Page 7: Pin Definition
DS-1350HMI Mobile Intercom 1.3 Pin Definition Intercom’s Pin Definition Intercom’s pin definition is shown as the following table. Figure 1. 1 Six-Pin Aviation Plug Table 1. 1 Intercom’s Pin Definition Name Name Line Out Power 12 VDC Line In ... -
Page 8: Chapter 2 Installation
DS-1350HMI Mobile Intercom Chapter 2 Installation Purpose: Follow the steps listed below to optimize the intercom’s effects. Steps: Respectively, two screw holes are on intercom’s sides, and you can use screws to install it on instrument panel. When installing, make sure the mic is toward the voice source (that is driver). -
Page 9: Chapter 3 Connecting Cables
DS-1350HMI Mobile Intercom Chapter 3 Connecting Cables Purpose: DS-1350HMI Intercom is able to cooperate with Mobile DVR and mobile enforcement system. The connection methods are different, when connecting intercom to these two devices. 3.1 Connecting to Mobile Enforcement System The host of mobile enforcement system provides one four-pin male aviation plug. Therefore, when connecting intercom with mobile enforcement system, use the adapter cable’s four-pin female aviation plug to connect to the... -
Page 10: Chapter 4 Adjusting Volume
DS-1350HMI Mobile Intercom Chapter 4 Adjusting Volume Purpose: Adopting full-duplex mode, DS-1350HMI Mobile Intercom enables two-way audio after the connection with mobile DVR or mobile enforcement system is done. Steps: Press buttons “+” and “-”to adjust the volume which is divided into 5 levels. -
Page 11: Chapter 5 Faq
DS-1350HMI Mobile Intercom Chapter 5 FAQ Mobile intercom’s LED indicator is unlit after the wiring is done. • Check whether the devices are started up normally. • Check the wiring, if the startup is normal. Failed to enable two-way audio. - Page 12 DS-1350HMI Mobile Intercom...
