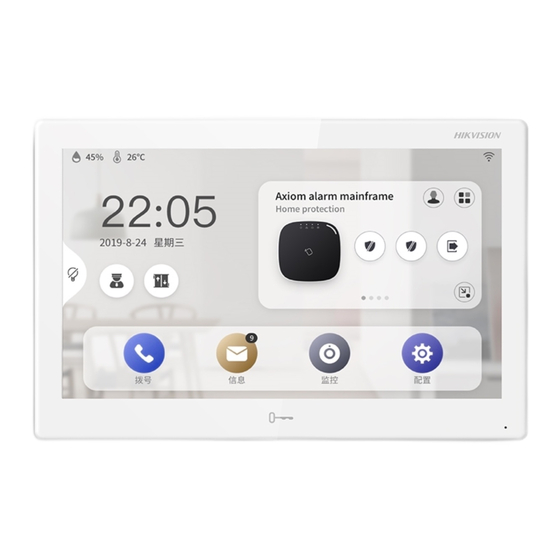

Video Intercom Indoor
Station
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KH9510-WTE1 and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-KH9510-WTE1

Summary of Contents for HIKVISION DS-KH9510-WTE1

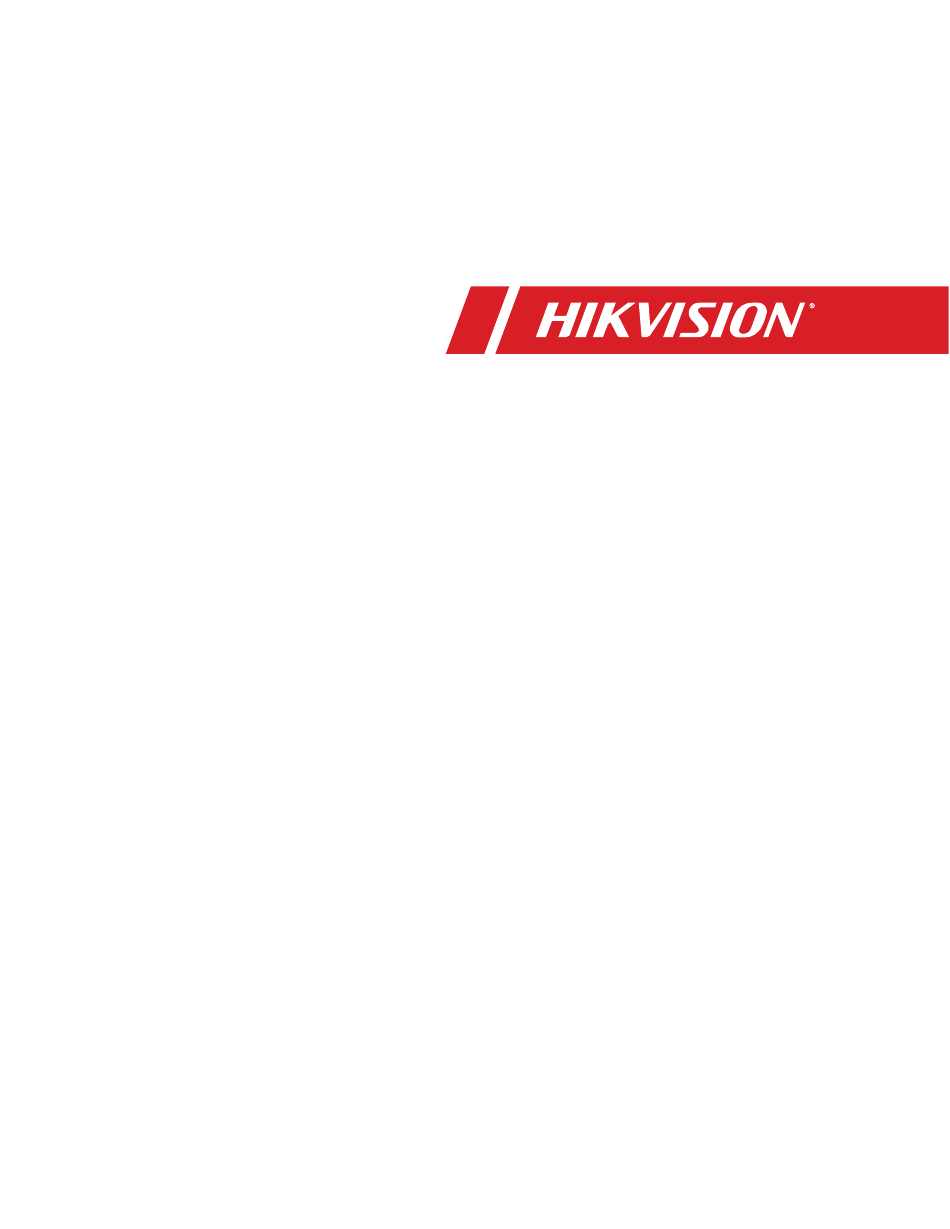

  • Page 1 DS-KH9510-WTE1 Video Intercom Indoor Station User Manual...
  • Page 2 BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method; for fingerprint device, only fingerprint template will be saved, which is impossible to reconstruct a fingerprint image.
  • Page 4 DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Caution Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism • radiation. Avoid the equipment installation on a vibrating surface or places subject to shock (ignoring this can cause equipment damage).
  • Page 5 DS-KH9510-WTE1 Video Intercom Indoor Station User Manual CAUTION: Risk of explosion if the battery is replaced by an incorrect type. • Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 6 DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference.

  • Page 7: Table Of Contents

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Contents 1 Home Page and Buttons Introduction ......................8 2 Local Operation ............................9 Call Settings............................. 9 Add Contact ..........................9 Call Resident ..........................10 Call Indoor Extension/Indoor Station ..................10 Receive Call ..........................10 View Call Logs ..........................

  • Page 8: Home Page And Buttons Introduction

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual 1 Home Page and Buttons Introduction Home Page Introduction Figure 1, Home Page Call: You can call residents, add contacts, and view call logs. • Message: You can view notices, alarm logs, and visitor messages.

  • Page 9: Local Operation

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual 2 Local Operation Call Settings Add Contact Steps 1. Tap Call → to enter the contact list page. Figure 2, Contact List 2. Tap to pop up the contact adding dialog. Figure 3, Add Contact 3.

  • Page 10: Call Resident

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Call Resident Steps 1. Tap Call → to enter the residents calling page. Figure 4, Call Resident 2. Enter the calling number to call. • If you want to call room, the calling number format should be x-x-x-xxx. For example, the calling number of Community 1, Building 2, Unit 3, and Room 405 is 1-2-3-405.

  • Page 11: View Call Logs

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual door station with the secure control door unit will open. Tap the capture button to capture the live view picture when speaking with the door station. A "Captured" prompt will display on the screen.

  • Page 12: Arm/Disarm

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Figure 6, Live View 2. Tap to enter the live view page of door station. On the Call from Door Station page, there are two unlock buttons: Unlock 1, and Unlock 2. When you tap Unlock 1, the building gate will open by default. When you tap Unlock 2, the door station connected door will open.

  • Page 13: Arming Mode Settings

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Steps → One-Push to Disarm to disarm. 1. Tap 2. Enter the arm/disarm password. 3. Tap OK. Arming Mode Settings Four arming modes can be configured: stay mode, away mode, sleeping mode, and custom mode.

  • Page 14: Information Management

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Information Management You can view public notice, visitor message, alarm log, and capture log on information management page. Tap Message to enter the information management page. You can view the message locally or from the mobile client.

  • Page 15: Remote Operation Via Mobile Client

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual 3 Remote Operation via Mobile Client Set up Mobile Client You can configure and operate the device via mobile client remotely. Before You Start Make sure your mobile device is connected to Wi-Fi.

  • Page 16: Remote Operation

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual If the system fails to recognize the QR code, tap and enter the serial no. to add the device manually. 3. Connect to the network. Make sure the device and the mobile device are in the same LAN.

  • Page 17: Remote Operation Via The Client Software

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual 4 Remote Operation via the Client Software The Video Intercom module provides remote control and configuration on video intercom products via the iVMS-4200 client software. Call Indoor Station Steps 1. On the main page, click Access Control → Video Intercom to enter the Video Intercom page.

  • Page 18: View Live Video Of Door Station And Outer Door Station

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Figure 11, Incoming Call from Indoor Station 2. Click Answer to answer the call, or click Hang Up to decline the call. 3. After you answer the call, you will enter the In Call window.

  • Page 19: Release Notice

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual 2. Click the Call Log tab to enter the Call Log page. All the call logs will display on this page and you can check the log information, e.g., call status, start time, resident’s organization and name, device name and ring or speaking duration.

  • Page 20: Search Video Intercom Information

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Figure 14, Create a Notice 4. Edit the notice on the right panel. 1) Click ... on the Send To field to pop up the Select Resident dialog. 2) Check the checkbox(es) to select the resident(s), or you can check the All checkbox to select all the added residents.

  • Page 21: Search Call Logs

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual On the main page, click Access Control to enter the access control module. In the Access Control module, click Video Intercom to enter the Video Intercom page. Search Call Logs Steps 1. On the main page, click Access Control → Video Intercom to enter the Video Intercom page.

  • Page 22: Search Notice

    DS-KH9510-WTE1 Video Intercom Indoor Station User Manual Search Notice Steps 1. On the main page, click Access Control → Video Intercom to enter the Video Intercom page. 2. Click Notice to enter the Notice page. Figure 16, Search Notice 3. Set the search conditions, including notice type, subject, recipient, start time, and end time.

  • Page 23: Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. The command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure 18, Device Command QR Code...
