Summary of Contents for Gree TS15-12PACHPEC-A

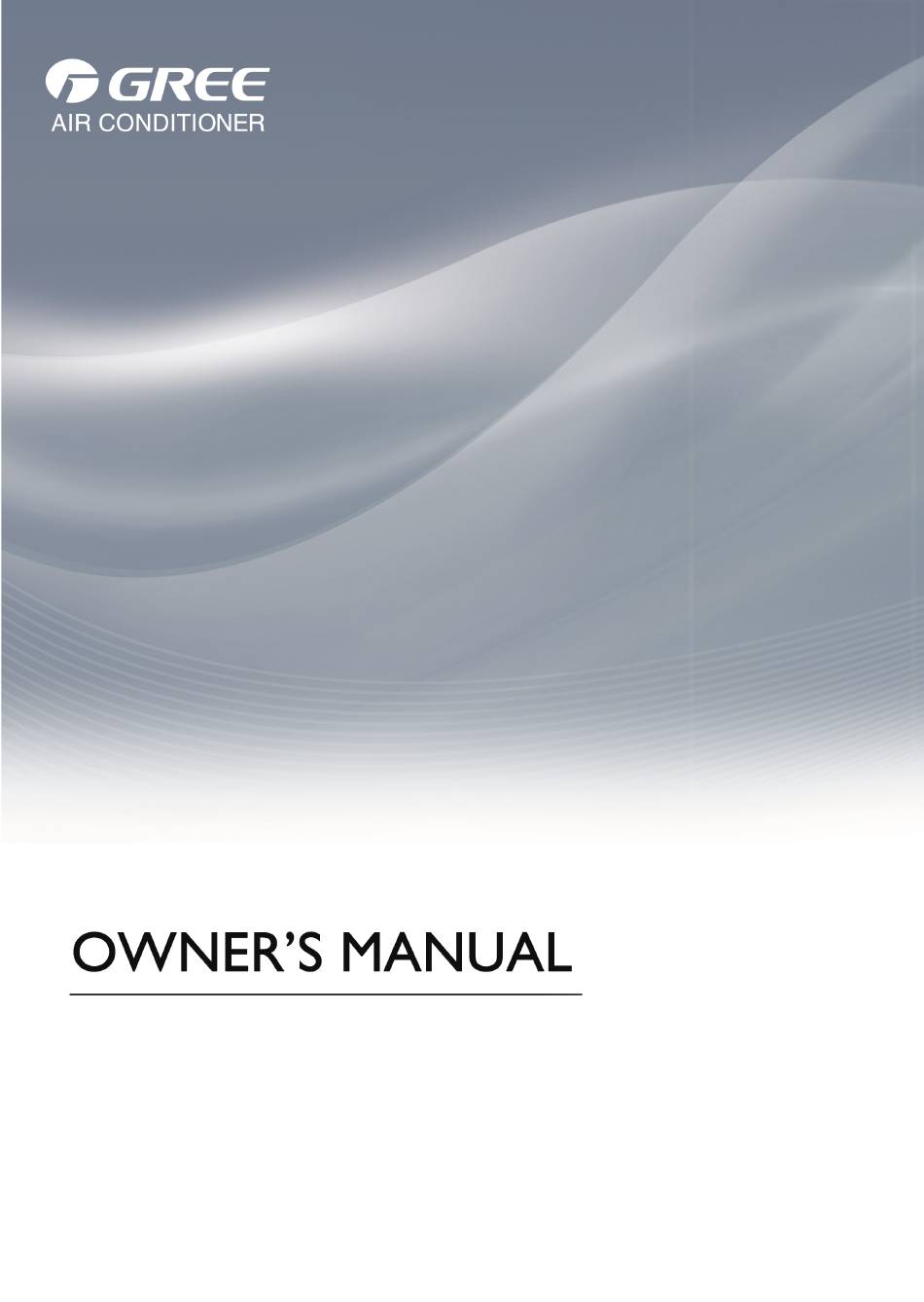

- Page 1 Local air conditioner Model: TS15-12PACHPEC-A (G15-12PACHPEC) Thank you for choosing our product. For proper operation, please read and keep this manual carefully .
-
Page 2: Important Instructions
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store name/location, date purchased, and serial number below: Store Name: ____________________________________________________ Location: ______________________________________________________ Date Purchased: _________________________________________________ Serial Number (located on back of unit): ______________________________ IMPORTANT INSTRUCTIONS Before installing and using your portable air conditioner, please read this owner’s manual carefully. -
Page 3: Package Contents
• Dehumidifier mode works when ambient temperatures are between 61°F - 86°F • Air Conditioner mode operates up to an ambient temperature of 95°F. TS15-12PACHPEC-A (with Heat) Model Power Supply (Ph/V/Hz) 1/115/60Hz Dehumidifying Capacity (Pints/Day) -
Page 4: Lcdi Power Cord And Plug
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord with no termination on the load side and a LCDI attachment plug on the line side. -
Page 5: Product Diagram
PRODUCT DIAGRAM Air Outlet & Louvers Carry Handle Control Panel Filter Upper Air Intake Location Air Exhaust Vent Lower Air Intake Power Cord... - Page 6 PARTS & WINDOW KIT ASSEMBLY PARTS EXHAUST HOSE & ADAPTERS Front Exhaust Hose Rear Exhaust Hose Exhaust Hose Adapter Adapter Window Kit Adapter Sliding Panels (3) ASSEMBLY & INSTALLATION INSTALLATION When the unit is operating as an air conditioner or dehumidifier, the window kit and exhaust hose must be installed. When the unit is operating in fan mode, the window kit and exhaust hose do not need to be installed .
-
Page 7: Install Window Frame
Install window frame Note: ● If the inner width of window is below 20"(520mm), please remove the adjusting plate from window frame and then cut the window frame to make its width the same as the width of window. adjusting plate window frame ●... - Page 8 Install window frame screw Window height (H) Screw quantity window frame H≤20.5"(520mm) 20.5"(520mm)<H≤39"(1000mm) 39"(1000mm)<H≤60"(1520mm) windowsill 3. Close the window securely against the window frame.
- Page 9 Installation and disassembly of heat discharge pipe Install heat discharge pipe 1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe. clockwise joint B clockwise heat discharge pipe joint A 2. Rotate joint A of heat discharge pipe clockwise and assemble it into the groove until you hear a sound.
-
Page 10: Operation Test
Installation and disassembly of heat discharge pipe Note of Install heat discharge pipe In order to improve cooling efficiency, the heat discharge pipe should be as short as possible and flat without curve to ensure smooth heat discharge. correct correct correct wrong Disassemble heat discharge pipe... -
Page 11: Drainage Way
Drainage way ■ In cooling or drying operation, the condensation water will be drained to the chassis and spattered by water-striking motor. As the temperature of condenser is high, most of the condensation water will be evaporated and drained to outdoor. -
Page 12: Control Panel
CONTROL PANEL TS15-12PACHPEC-A HEAT MODE LIGHT DRY MODE LIGHT LED DISPLAY FAN MODE LIGHT COOL MODE LIGHT POWER BUTTON MODE BUTTON TEMP SELECT BUTTONS... -
Page 13: Control Panel Functions
Air Conditioner, Dehumidifier (DRY), Fan only, and Heater mode (NOTE: Heater mode is only available on the TS15-12PACHPEC-A). Each press of the MODE button will light up a different mode icon on the con- trol panel. The exhaust hose and window kit must be installed when the unit is in Air Conditioner, Dehumidifier (DRY), or Heater (TS15-12PACHPEC-A only) mode. - Page 14 Disable Stationary Swing Mode by pressing the Up and Down Swing Button and “+” button at the same time. The Swing Icon on the Remote LCD will blink twice when this is disabled. NOTE: Heat Mode is only HEAT available on TS15-12PACHPEC-A...
- Page 15 REMOTE CONTROL OPERATING INSTRUCTIONS TIMER TIMER BUTTON Auto-on Timer: When the air conditioner is off, it can be set to automatically turn on in 30 minutes to 24 hours at the previous set mode and fan setting. To set the Auto- on Timer, press the TIMER button on the unit or remote control.
- Page 16 TEMP MEASURE CHANGE BETWEEN F° and C° In Heating mode (TS15-12PACHPEC-A only): When sleep mode is selected the set temperature will automatically • When the unit is off, press the MODE and “-” button decrease 2°F after 1 hour. After 2 hours, the set tem- perature will decrease another 2°F for a total decrease of...
-
Page 17: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may decrease. It is recommended to clean the filter once every two weeks, or as needed. -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS • The Air Conditioner will not start The air conditioner is unplugged or not Make sure the air conditioner plug connected well. is pushed completely into the out- • Check the house fuse/circuit breaker box and replace the fuse The fuse is blown/circuit breaker is or reset the breaker. - Page 19 TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSES SOLUTIONS • The LCD Display is showing “E5” Low Voltage Protection Unplug for 10 minutes and then turn on the unit. If “E5” is still dis- played, contact customer service. • The LCD Display is showing “H8” The backup water tank is full Drain the water tank •...
- Page 20 Marshall Associates International 1131 W. Blackhawk 2nd Floor Chicago, IL Hours: 9am-5pm CST Monday-Friday Phone: 1-866-658-0466 Email: gree@maiintl.com Website: www.greeproducts.com 66129918660...
