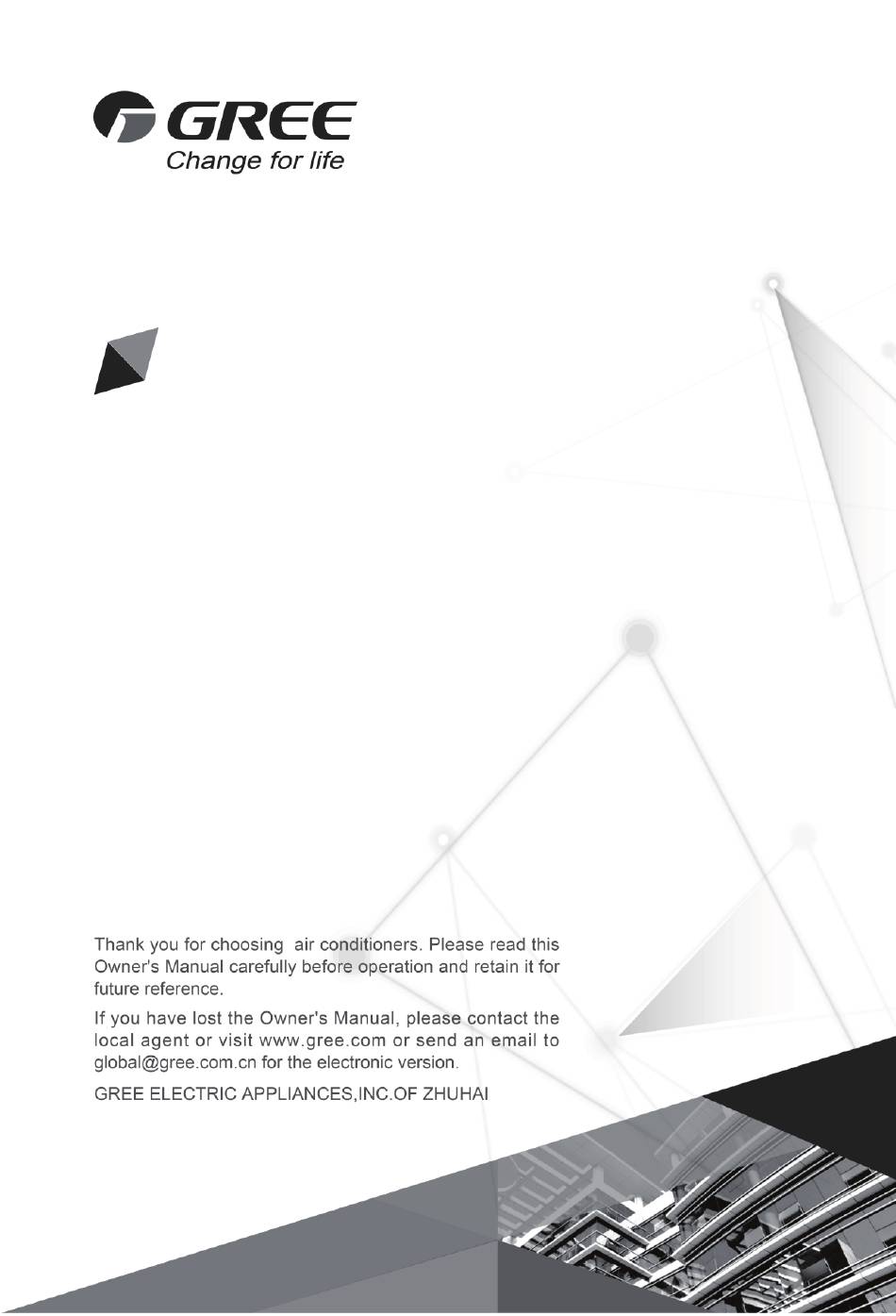

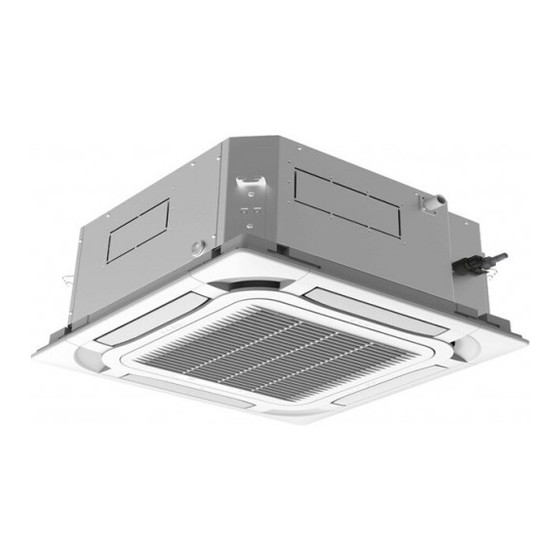

- Page 1 Owner's Manual Original Instructions TF04A Panel...
- Page 2 TF04A Panel 1 Wire Connection for the Lifting Panel Pull the grille to a certain distance with hand. Use screwdriver to open the electric box cover and the wire-pressing board with wire-passing hole. Insert two wires packed in the accessories bag into the corresponding...
- Page 3 TF04A Panel Pass these two terminals of synchronous motor wire on the panel through the wire-passing hole of wire-pressing board, connect it with the terminals of synchronous motor wire on the main board, put the wires in order and then install the cover. Please note that the docking terminal must be put into the wire-passing hole.
- Page 4 TF04A Panel Step 3: Close the grille. Please operate it strictly according to the instruction manual. Put the docking terminal of synchronous motor into the wire-passing hole to avoid the electric safety problem caused by the exposure of insulation layer of terminal.
- Page 5 TF04A Panel Descending of return air grille: After entering the cleaning status of return air grille and filter screen, press the return air grille will descend. Shut off in the descending process of return air grille: During descending/ascending process of return air grille, press , the return air grille will stop descending/ascending.
- Page 6 TF04A Panel NOTICES: During the descending/ascending process of return air grille, there might be slight abnormal sound, which is a normal phenomenon and will not affect the function. When adjusting the descending/ascending location of the return air grille, if pressing consistently, it might adjust the temperature to the limited value of 16°C(61°F) or 30°C(86°F).
- Page 7 TF04A Panel When the grille accidentally touches the object or the person and then causes knot, the user needs to remove the entire panel to pull out the rope wrapped in the turntable, and then turn the turntable clockwise to set the grille into the panel. After that, it can resume the normal operation again.
- Page 8 TF04A Panel 3 Maintenance for the Motor of Lifting Panel Step 1: Open the clasp of the turntable of lifting panel. Step 2: Remove turntable, two screws, dust-proof cover and motor in turn. Remove the motor on the other side according to the same disassembling method.
