INTELLICENTER
POOL COVER EXPANSION CARD AND POOL COVER INSTALLATION GUIDE
IntelliCenter Control System Pool Cover Expansion Card (P/N 522039Z)
The IntelliCenter Control System Pool Cover Expansion card can support two pool covers. Refer to
your pool cover manufacturer's owner's manual for wiring instructions. Note: For pool cover installation
instructions, see page 4.
Expansion Card Slot Assignment Order
i5P Main Motherboard
Slot 1:
Personality Expansion Card.
Note: Personality Expansion cards MUST always be installed in SLOT 1.
Slot 2:
Valve Expansion Card or Pool cover Expansion Card
Slot 3:
Valve Expansion Card or Pool cover Expansion Card
Slot 4:
Available for future use
Slot 1 is only used for a Personality card such as: i5PS, i8P, i8PS, i10P, i10PS, or i10D. If no Personality
card is being used, Slot 1 can be used for a Pool Cover Expansion Card or Valve Expansion Card.
Note: Only one Personality Expansion Card can be installed in one enclosure. Note: For more information,
please refer to the IntelliCenter Control System Installation Guide (P/N 522989).
Slot 2, Slot 3 and Slot 4: These Expansion card slots are available for any remaining Expansion cards in
any order, including the Pool Cover Expansion card or Valve Expansion card. See figure 1.
Note: Slot assignment order is the same for IntelliCenter Expansion enclosures.
INSTALLATION SUMMARY STEPS
1. Access the Main Motherboard in the Load Center or Power Center (see page 2).
2. Install the Pool Cover Expansion Card SLOT 1 (if available) next to the Main Motherboard or
in SLOT 2, SLOT 3, or SLOT 4 (see page 3).
3. Wiring the Pool Cover Expansion Card.
4. Use the Setup Wizard to configure the system (see IntelliCenter User's Guide (P/N 522990)

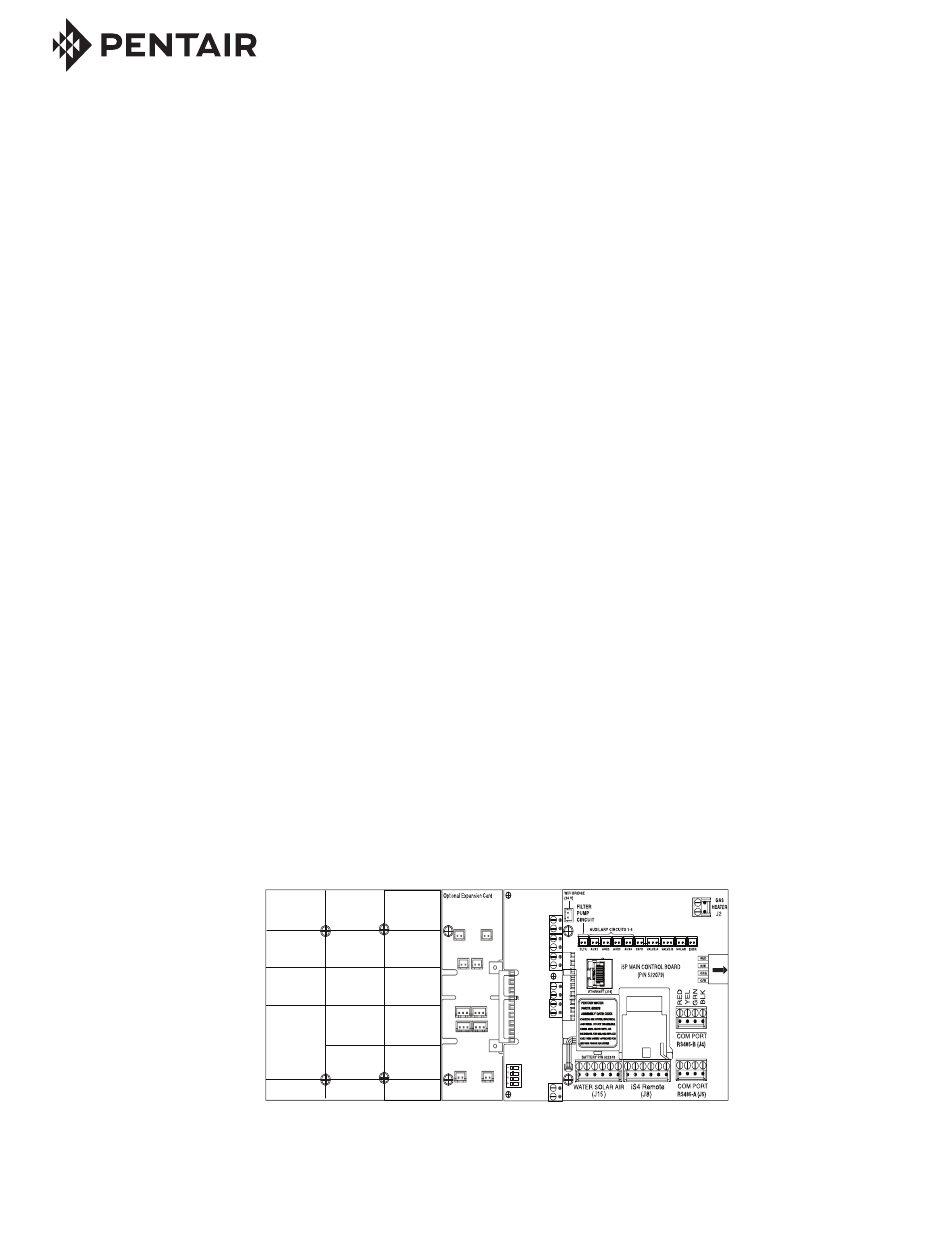

Figure 1: IntelliCenter Control System with Pool Cover Expansion Card Installed (i5P Main Motherboard)
Note: Use SLOT 1 for Pool Cover Expansion Card if no Personality Card is being used,
P/N 523457 Rev. C 8/2020
CONTROL SYSTEM
™
Slot 4:
Slot 3:
Slot 2:
Expansion
Expansion
Expansion
Card (available)
Card (available)
Card
Expansion
Expansion
Card
Card
4
3
otherwise use SLOT 2, 3, or 4.
IntelliCenter Control System Expansion Card and Pool Cover Installation Guide
(*) Slot 1:
Pool Cover
Expansion
i5P (Base System)
Card
Main Motherboard
Pool Cover Expansion Card
(P/N 522975)
Pool Cover 2
Pool Cover 1
5V Power
Source
1
