Summary of Contents for Carefree of Colorado SUNDIAL PATIO AWNING
- Page 1 AREFREE UNDIAL ATIO WNING 110V M OTORIZED Residential Installation and Operations Manual 052537-001r5 Printed in USA January, 2007 Table of Contents...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Introduction ........................... 1 General Description ..........................1 Sundial Patio Awning Specifications ....................1 Component Checklist..........................2 Installation ............................. 3 Required Pre-Installation Parameters.....................3 Mounting Plate Layout and Installation....................3 Using the Optional Roof Mount Brackets ..................5 Mounting the Awning Unit........................5 Securing the Awning..........................6 Wiring ............................. -
Page 3: Introduction

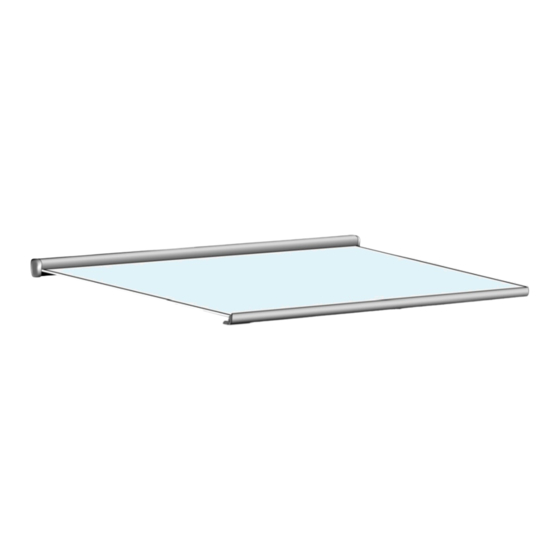

ENERAL ESCRIPTION The Sundial Patio Awning offers the home owner an awning system that provides as much or as little awning as required. The canopy is housed in an aluminum case available in white, sand and brown. The canopy is made from Sunbrella® acrylic fabric. -
Page 4: Component Checklist
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE OMPONENT HECKLIST Standard Wall Switch Anemometer Control System Figure 2. Component Checklist. ESCRIPTION ASIC SSEMBLY Sundial Awning Assembly Mounting Bracket Screw, Lag 3/8 x 3 Washer, Flat 1" O.D. Screw, Lag 1/4 x 1 1/2 Hex Key 7mm x 133mm... -
Page 5: Installation
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE NSTALLATION CAUTION T IS RECOMMENDED THAT AT LEAST THREE PEOPLE INSTALL THE AWNING DUE TO SIZE AND WEIGHT OF THE COMPONENTS EQUIRED NSTALLATION ARAMETERS Prior to installing the awning, the installer must determine the layout of the specific construction elements to successfully assemble and mount the awning. - Page 6 AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE Below is the minimum number of required mounting locations. Each position uses two screws. Awning Length # of Locations On the plate mark the location of the mounting locations. The inner mounting locations should be spaced as evenly as possible between the outer mounting locations.
-
Page 7: Using The Optional Roof Mount Brackets
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE Using the Optional Roof Mount Brackets The brackets are shipped unassembled. 3/8 x 3 Lag Screw Flat Washer (2 per bracket) Brace Pitched Surface Structural Plate Mounting Mounting Plate 3/8-16 x 1 Screw Plate 3/8 Lock Washer 3/8-16 Nut... -
Page 8: Securing The Awning
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE ECURING THE WNING NOTE: This procedure requires opening the awning. For manual awnings, use the manual crank. For motorized awnings, follow the Manual Override instructions on page 14. For motorized awnings, these steps can be done after the electrical installation when motorized power is available. -
Page 9: Wiring
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE IRING WARNING LWAYS DISCONNECT THE ELECTRICAL SOURCES BEFORE WORKING WITH ELECTRICAL WIRING AND COMPONENTS The 110VAC motorized Carefree Sundial Awning is available with two power options. a) A single hardwired switch; or, b) Power Control System. -
Page 10: Power Control System
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE OWER ONTROL YSTEM The power control system provides the home owner several options that are not available with the standard hard wired installation. These options include remote controls; wireless wall switches for interior installation and the wind-sense auto retract for protection against adverse wind conditions. -
Page 11: Wireless Switch Installation
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE Wireless Switch Installation CAUTION HE WIRELESS WALL SWITCH IS DESIGNED AS AN INTERIOR SWITCH ONLY OUNTING THE SWITCH OUTSIDE OR IN AN AREA DIRECTLY INFLUENCED BY ADVERSE ENVIRONMENTAL FACTORS CAN CAUSE PREMATURE DAMAGE TO THE SWITCH AND VOID WARRANTY Mounting Bracket 1 5/8”... -
Page 12: Mounting The Optional Anemometer
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE 1. Connect control box to power source (110VAC). 2. Press the Programming Button (PROG) of the receiver located in control box (lower right corner) until LED illuminates. This indicates that for one (1) minute the receiver is ready to receive the address of the transmitter. After this time, the control box exits the programming mode and the LED goes out. -
Page 13: Testing The System
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE 5. Reattach the access cover. 6. Determine the mounting location of the anemometer. • The anemometer may be mounted to a vertical surface or sloped surface; • Ensure that the cups are horizontal. Do not mount upside down; •... -
Page 14: Operation
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE PERATION – S WITCH PERATION TANDARD ARDWIRE NSTALLATION • Press and hold the switch down to extend the awning to the desired extension. • Press and hold the switch up to retract the awning. Retract Extend SunDay016... -
Page 15: Using The Remote Control
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE SING THE EMOTE ONTROL UP ......Press and release the UP arrow to retract the awning. awning will retract until fully closed. STOP STOP ....Press the center button to stop the awning during extend or DOWN Channel Selection... -
Page 16: Manual Override (Motorized Versions Only)
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE ANUAL VERRIDE If 110V power is not available to the coach, the Sundial awning Wall can still be safely retracted using the manual override. The bypass may be accessed from inside the case on the motor Remove Screw housing or from the top of the case above the motor housing. -
Page 17: Maintenance
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE AINTENANCE Maintaining the Carefree Sundial Awning is easy. Simply follow the recommendations below. ABRIC AINTENANCE CAUTION O NOT USE OIL BASED CLEANERS OR ANY CAUSTIC GRANULATED OR ABRASIVE TYPE CLEANERS ON YOUR AREFREE PRODUCT One of the best ways to keep the fabric looking good and to delay the need for deep or vigorous cleanings is to hose fabrics off on a monthly basis with clear water. -
Page 18: Setting The Motor Limits
AREFREE OF OLORADO UNDIAL ATIO WNING W ANUAL VERRIDE ETTING THE OTOR IMITS The motor limit switches are preset at the factory for best operation of the awning. The “ ” limit switch is used to stop the motor when the awning is fully extended. The “ ”... -
Page 19: Limited Warranty
Carefree of Colorado (hereafter referred to as Carefree) warrants to the ARRANTY LAIM ROCEDURE retail Purchaser that the Sundial Patio Awning is free of defects in FIRST Deliver any product claimed or found defective during warranty material and workmanship within the terms and conditions as set forth period to a Carefree of Colorado Authorized Service Dealer. - Page 20 Table of Contents...
