Formex Snap Lock Chicken Coops Assembly Instructions Manual page 7

Nest Box Assembly

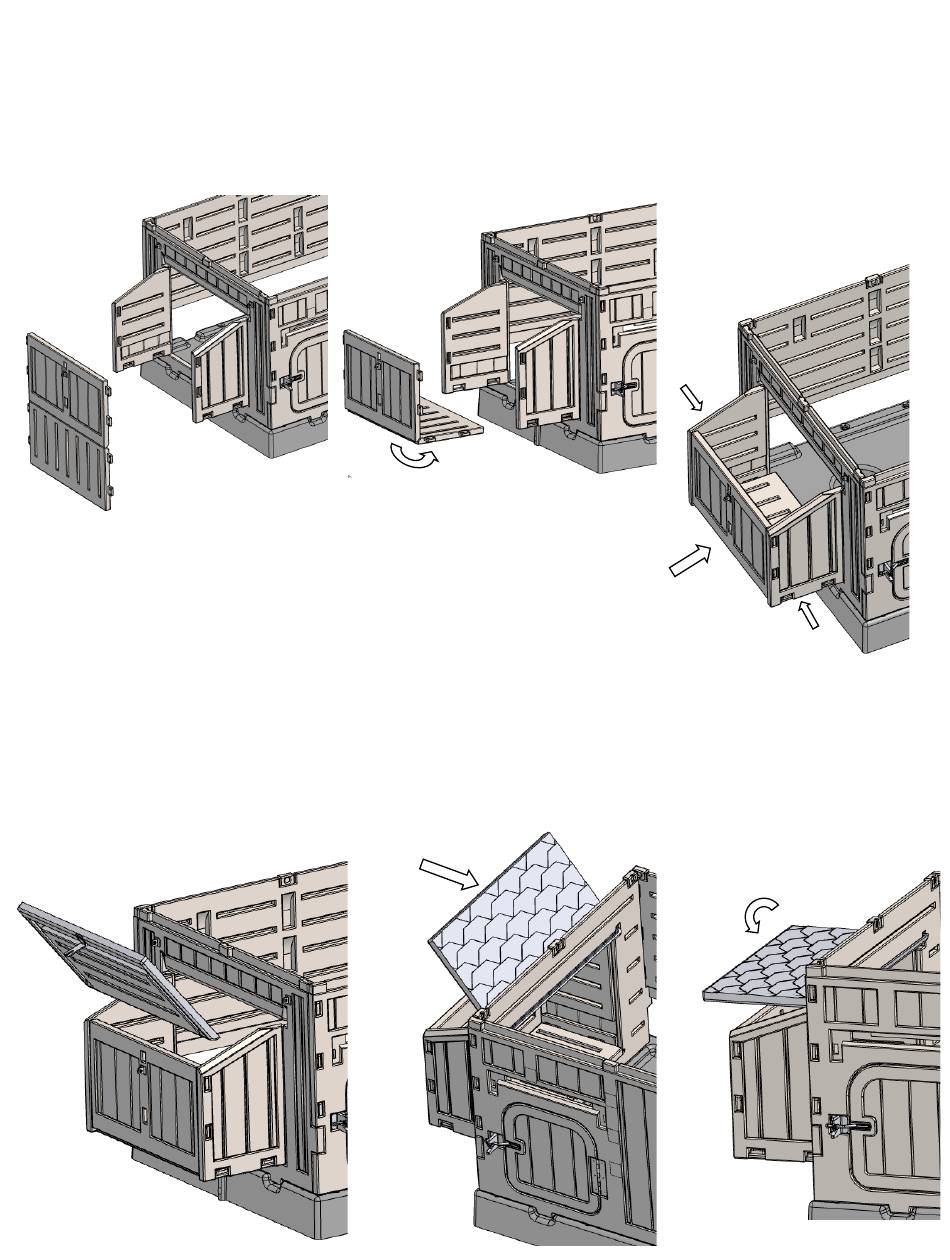

Step 6: Assemble the Nest Box to the Nest Side Wall by first folding the two flaps on the Nest Side Wall out-
ward (Fig. 6a). Then fold the Nest Box panel 90 degrees (Fig. 6b) and place it between the flaps, aligning the tabs
on the Nest Box with the slots on the Nest Side Wall (Fig. 6c). Now, firmly apply pressure to both the flaps until all
eight tabs snap into place.
Fig. 6a
Fig. 6b
Fig. 6c
Step 7: Assemble the Nest Box Lid to the Nest Side Wall by first inserting the Nest Box Lid into the Nest
Side Wall at an angle (Fig. 7a) that will allow the back end of the lid to slide underneath the upper tab on the Nest
Side Wall (Fig. 7b). Sing down and the Nest Box Lid is in place. (Fig. 7c)
Fig. 7b
Fig. 7a
Fig. 7c
